Additional Info
*Easy release for 50µm, tight release for 23µm
tesa® 60362
tesa® 60362 50 μm double sided high performance electrically conductive fabric tape
produk fitur
- Improved and stable electrical conductivity
- Very strong bonding strength with high peel adhesion
- Excellent electrical conductivity in XYZ-direction even after damp heat conditions
Product description
tesa® 60362 is high performance electrically conductive fabric tape. It consists of electrically conductive fabric backing and specially designed conductive adhesive coating layer on both sides. Designed for grounding and shielding which needs higher electrical conductivity but also higher bonding performance such as FPC, PCB, display, antenna and other components applications.
Detail Produk dan Spesifikasi
produk fitur
- Improved and stable electrical conductivity
- Very strong bonding strength with high peel adhesion
- Excellent electrical conductivity in XYZ-direction even after damp heat conditions
- Excellent grounding performance at small bonding area
Application Fields
- EMC applications
- FPC, PCB main board application for grounding
- FPC for Display
- Antenna and other components in electronics device

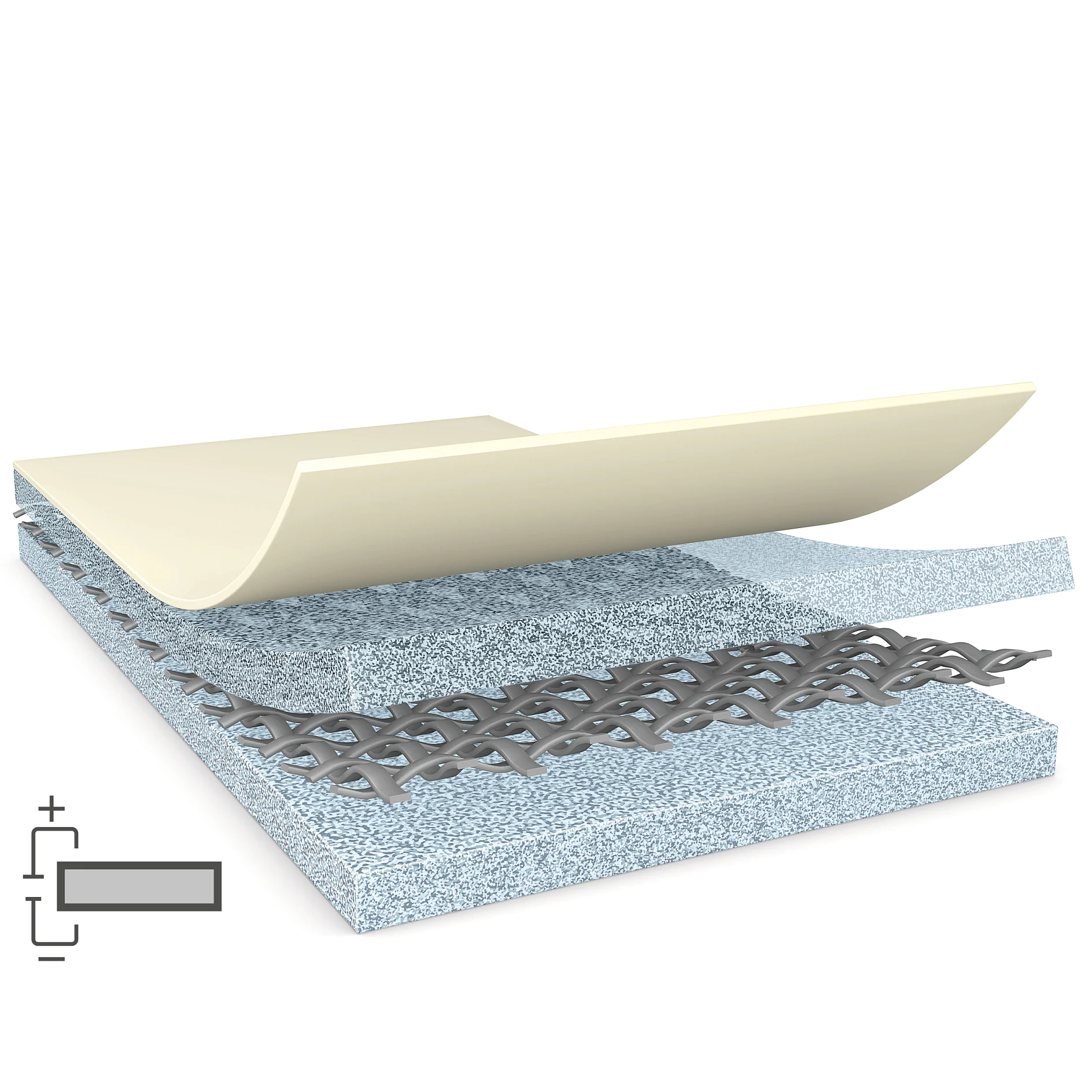

Product Construction
| Bahan penyangga | conductive woven |
|---|---|
| Jenis Liner | PET film |
| Jenis Perekat | conductive acrylic |
| Ketebalan liner | 50 µm |
| Ketebalan total | 50 µm |
| Warna | gray |
| Warna liner | transparent |
Product Construction
| Bahan penyangga | conductive woven |
|---|---|
| Jenis Liner | PET film |
| Jenis Perekat | conductive acrylic |
| Ketebalan liner | 50 µm |
| Ketebalan total | 50 µm |
| Warna | gray |
| Warna liner | transparent |
Properties / Performance Values
| Pelepasan liner | easy |
|---|---|
| Ketahanan permukaan arah x-y (perekat) | 0.1 Ohm / square |
| Ketahanan kontak arah-z (awal) | 0.01 Ohm / square inch |
Properties / Performance Values
| Pelepasan liner | easy |
|---|---|
| Ketahanan permukaan arah x-y (perekat) | 0.1 Ohm / square |
| Ketahanan kontak arah-z (awal) | 0.01 Ohm / square inch |
Adhesion to Values
| Daya rekat ke Aluminium (awal) | 8 N/cm |
|---|---|
| Daya rekat ke Aluminium (setelah 14 hari) | 9 N/cm |
| Mendorong Keluar | 8 N/cm |
| Daya rekat ke Tembaga (setelah 14 hari) | 9 N/cm |
| Daya rekat ke PI (awal) | 8 N/cm |
| Daya rekat ke PI (setelah 14 hari) | 9 N/cm |
| Daya rekat ke Baja (setelah 14 hari) | 8 N/cm |
Adhesion to Values
| Daya rekat ke Aluminium (awal) | 8 N/cm |
|---|---|
| Daya rekat ke Aluminium (setelah 14 hari) | 9 N/cm |
| Mendorong Keluar | 8 N/cm |
| Daya rekat ke Tembaga (setelah 14 hari) | 9 N/cm |
| Daya rekat ke PI (awal) | 8 N/cm |
| Daya rekat ke PI (setelah 14 hari) | 9 N/cm |
| Daya rekat ke Baja (setelah 14 hari) | 8 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
