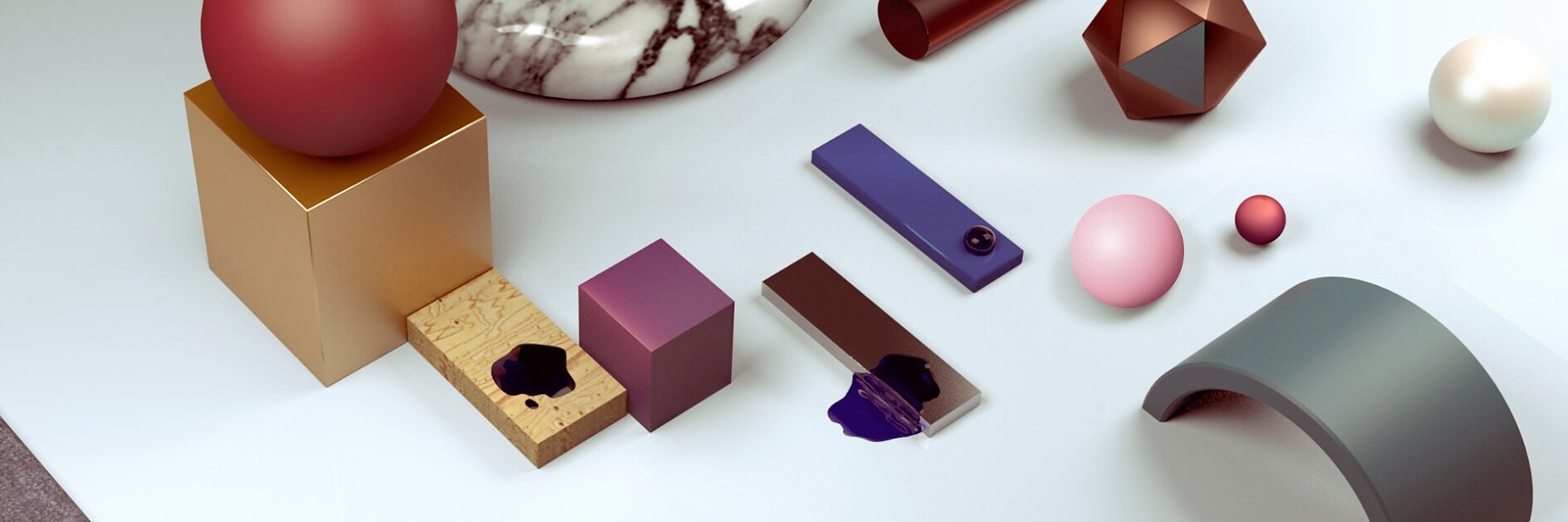

Low energy surfaces such as plastic are hard to stick to – ink drops will run off the surface.

tesa LSE Mounting Solutions

for difficult to bond substrates

tesa High-performance LSE adhesive tapes create an outstanding and secure bond to typical LSE substrates such as PP, polystyrene, and PP/EPDM or even silicones and PTFE that are becoming more and more important in many industries including Automotive, Electronics, Railways, Appliances, and Aerospace….without pre-treatment processes!

Our LSE double-sided tape assortment comprises products of all kinds of thicknesses to meet the challenges regarding low installation spaces in, for example, smartphones, mounting of substrates with very different surface tension like PTFE membranes to aluminum housings in Appliances up to the highest demanding automotive mounting of LSE exterior attachment parts to car bodies where viscoelasticity is a key demand due to different thermal expansions.

In order to achieve sufficient contact points for the formation of high adhesion forces, the pressure-sensitive adhesive must be able to sufficiently wet the substrate to be bonded. Wetting largely depends on the surface tension or energy of the substrate and the pressure-sensitive adhesive. LSE substrates are defined as low-surface energy tension.

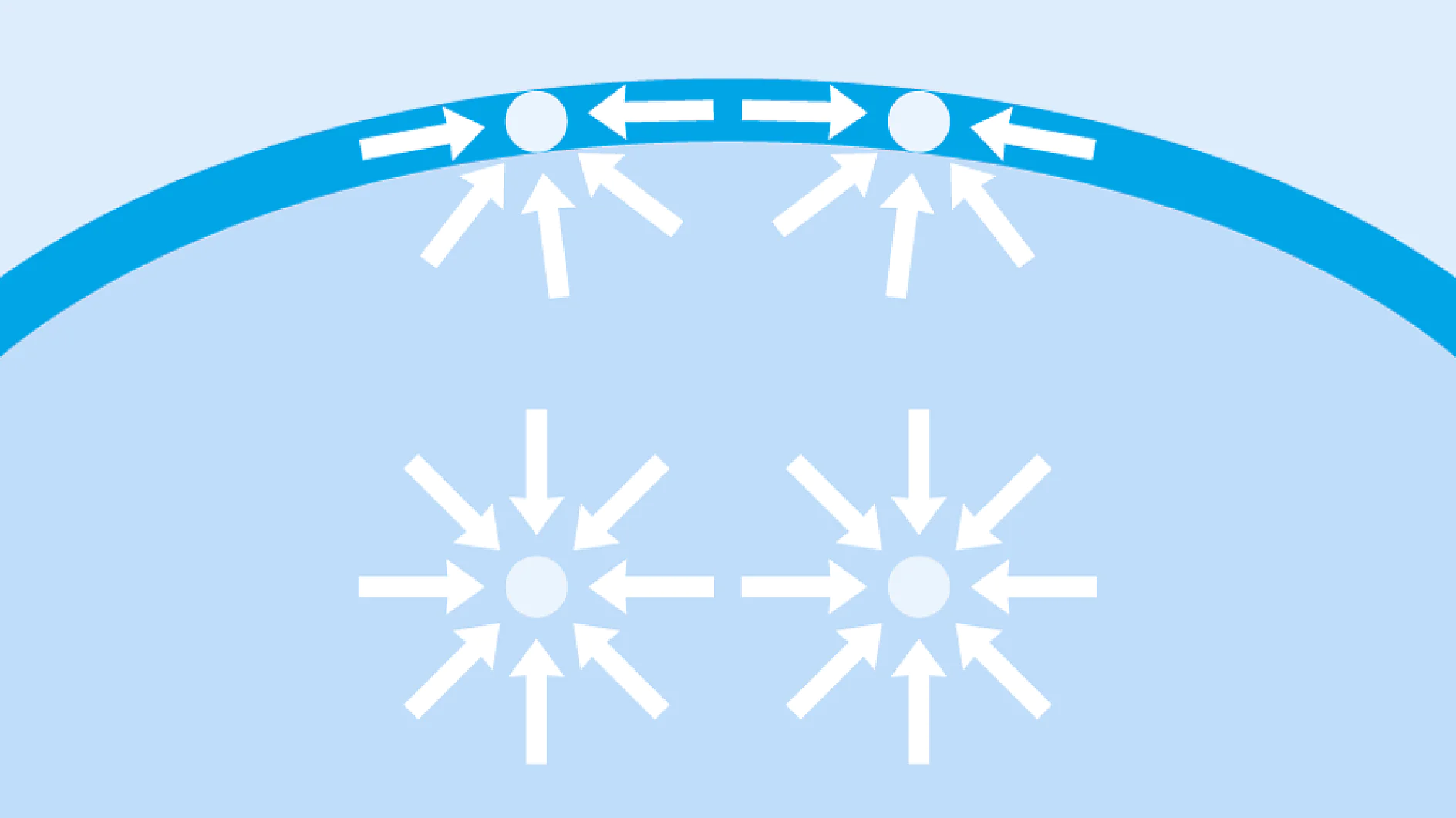

Surface tension of water molecules

tape assortment

Our LSE assortment

With this assortment, we created double-sided mounting tapes with unique LSE adhesive performance
focusing on the special requirements of certain applications in demanding industries.

Double-Sided Adhesive Tape: Differential Si/Ac for Silicone and PTFE Substrates¹

Product	Thickness [µm]	Color	Liner: Si / Ac	Standard log roll sizes: length [m] width [mm]	MOQ in log roll	Adhesive	Backing	Peel adhesion to Silicone [N/cm] (initial / 14 days)	Temperature resistance short term [°C]
tesa® 88665	115	Transparent	50µ PET / 80µ PCK	100 : 980	1	Si / Ac	PET	6,3 / 9,5	150
tesa® 61526	30	Transparent	50µ PET / 50µ PET	100 : 1.240	5	Si / Ac	PET	3,0 / 4,5	120
tesa® 61532	50	Transparent	50µ PET / 50µ PET	100 : 1.240	5	Si / Ac	PET	3,0 / 4,5	120
tesa® 61528	100	Transparent	50µ PET / 50µ PET	100 : 1.240	5	Si / Ac	PET	2,8 / 4,0	120
tesa® 61529	140	Transparent	50µ PET / 50µ PET	100 : 1.240	5	Si / Ac	PET	3,0 / 4,0	120
tesa® 61520	200	Transparent	50µ PET / 50µ PET	100 : 1.240	12	Si / Ac	PET	3,1 / 4,4	120

¹ All valid product data is available on the product page.

Double-Sided Adhesive Tape: Standard LSE Surfaces¹

Product	Thickness [µm]	Color	Liner	Standard log roll width [mm]	Adhesive	Backing	Peel adhesion to PP [N/cm] (initial/three days)	Temperature resistance [°C]
tesa® 66022	220	Transparent	Brown/Blue Logo	1,150	Acrylic	None	14.0/16.0	200/-
tesa® 4965	205	Transparent	Multiple	1,372	Acrylic	PET	6.8/7.9 (14 days)	200/100
tesa® 51970	220	Transparent	Brown	1,372	Acrylic	PP	6.8/8.8 (14 days)	130/80
tesa® 51570	110	Translucent	Brown	1,400	Rubber	Non-woven	7.0/12.0 (14 days)	40/80
tesa® 755xx	50, 75, 125	Translucent	Brown	1,372	Acrylic	None	11.0 (initial on steel)	100/200
tesa® 92105	500	Black	Transparent	610	Performance polymer foam	None	25/30	–30°C to 100°C
tesa® 92108	800	Black	Transparent	610	Performance polymer foam	None	28/36	–30°C to 100°C
tesa® 92111	1,1	Black	Transparent	610	Performance polymer foam	None	29/40	–30°C to 100°C
tesa® 77805	500	Gray	Royal Blue	900	LSE	Acrylic foam	26/28	–40 to +80°C
tesa® 77808	800	Gray	Royal Blue	900	LSE	Acrylic foam	28/31	–40 to +80°C
tesa® 77811	1,1	Gray	Royal Blue	900	LSE	Acrylic foam	32/35	–40 to +80°C
tesa® 77815	1,5	Gray	Royal Blue	900	LSE	Acrylic foam	36/39	–40 to +80°C
tesa® 64912	1,2	Black	Brown	1,240	Rubber	PE foam	20/20 (after 14 days)	–40°C to reliable performance to higher temperatures
