A front view digital rendering of a car with transparent blue overlays revealing interior parts, featuring tesa tape and gray background.

Window and waterbox seals
Bond with confidence.

Can you be confident that your windows and waterboxes will deliver last long-lasting reliability? With tesa® ACXplus Seal Line you can.

Flexible, durable, and suitable for bonding soft rubber seals to primed glass or ceramic substrates, tesa® ACXplus  Seal Line acrylic foam tapes offer high performance for your automotive seal applications. And combined with our on-site technical support and customer service, we’ll make sure you have the solution you need.

Performance test

See how tesa® 73604 performs in the peel adhesion test.

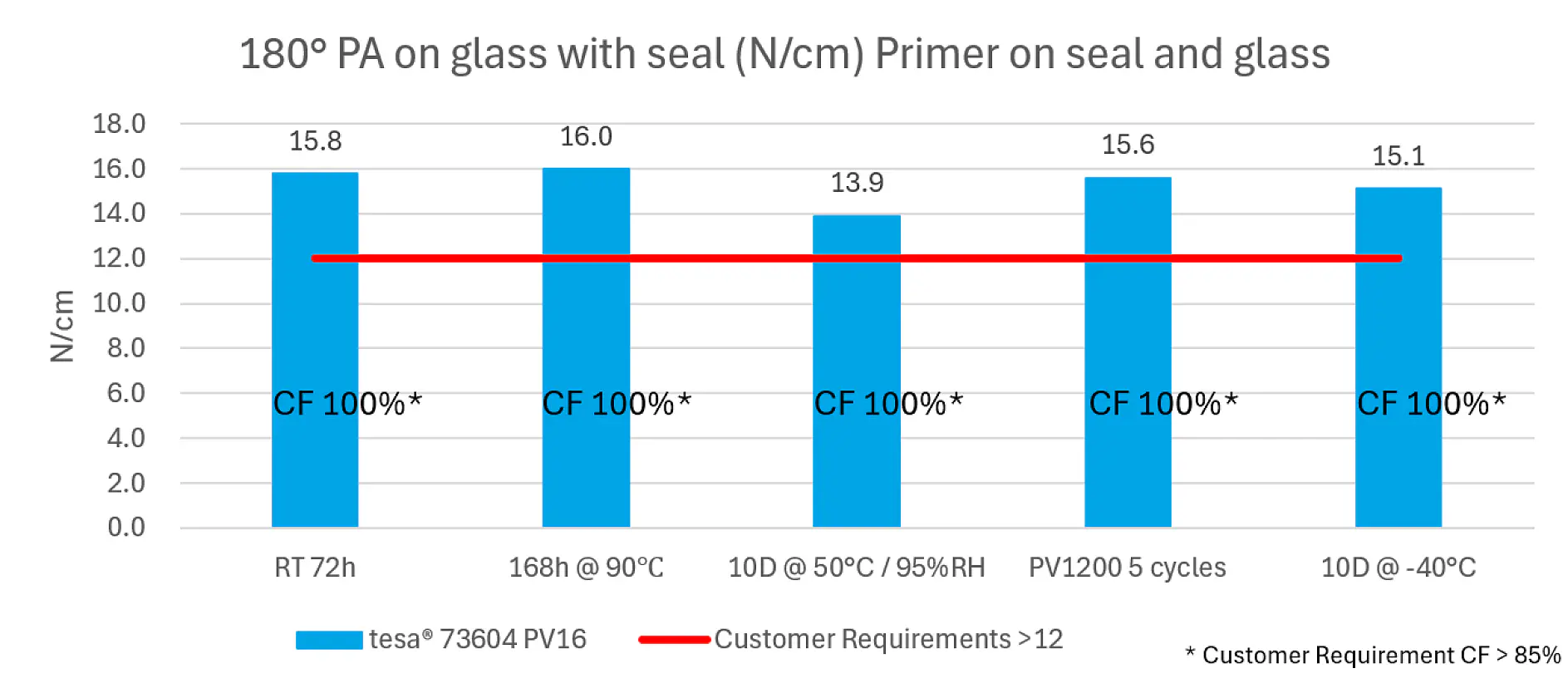

Bar graph showing peel adhesion for tesa tape on glass; values 13.9–16.1 N/cm, all above 12 N/cm, CF 100% in all conditions.

tesa®  736xx passed the critical customer spec of 180° peel test with real substrate, showing a 100% cohesion failure under all conditions. Cohesion failure mode shows that the anchorage of the tape to both substrates is very reliable.

Tailoring tesa® tapes for our customer’s unique needs

A close-up view of a car’s rear window and spoiler, with reflections of clouds visible on the glass and a partial view of the interior, including the dashboard and front seats. tesa tape is shown securing elements on or near the window, demonstrating its effectiveness for automotive applications.

An OES supplying waterboxes to a large German automotive manufacturer was working with a range of standard-sized adhesive tapes.

The problem was that a new seal design required a tape of special dimensions. Their adhesive supplier couldn’t create the unique product they needed, so they asked tesa.

We worked closely with our customer, and with their customers up and down the value chain, to develop a rigorously tested tape of the right dimensions that could still fulfil temperature and shock resistance and peel test requirements.

And we maintain that relationship today, to give our customer confidence they have our support as their products reach the OEM and then onto roads around the world.

Enduring quality & performance

Close-up of the front windshield and side mirror of a silver car with morning dew, parked outdoors in sunlight. A piece of tesa tape is visible, with a wooden fence and blurred background also in view.

tesa® ACXplus Seal Line is designed to:

  • resist UV and chemicals
  • maintain a reliable bond between -40 °C to 90 °C
  • significantly reduce vibrations and noise
  • optimize stress dissipation

— and do all of that over the lifetime of the vehicle.

Downloads

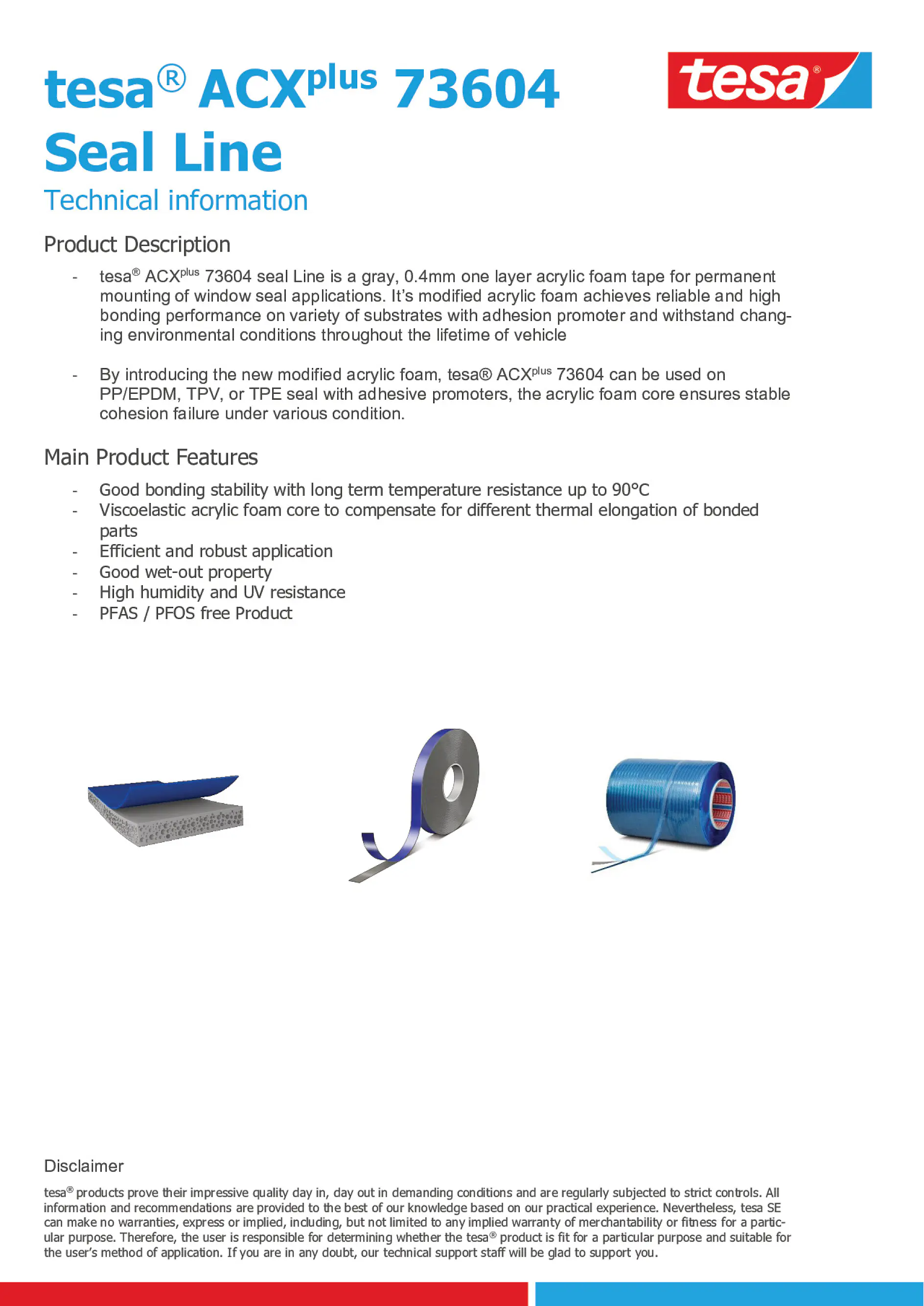

Window seal TI sheet
TI 73604 Window seal TI sheet PDF 216.6 kB

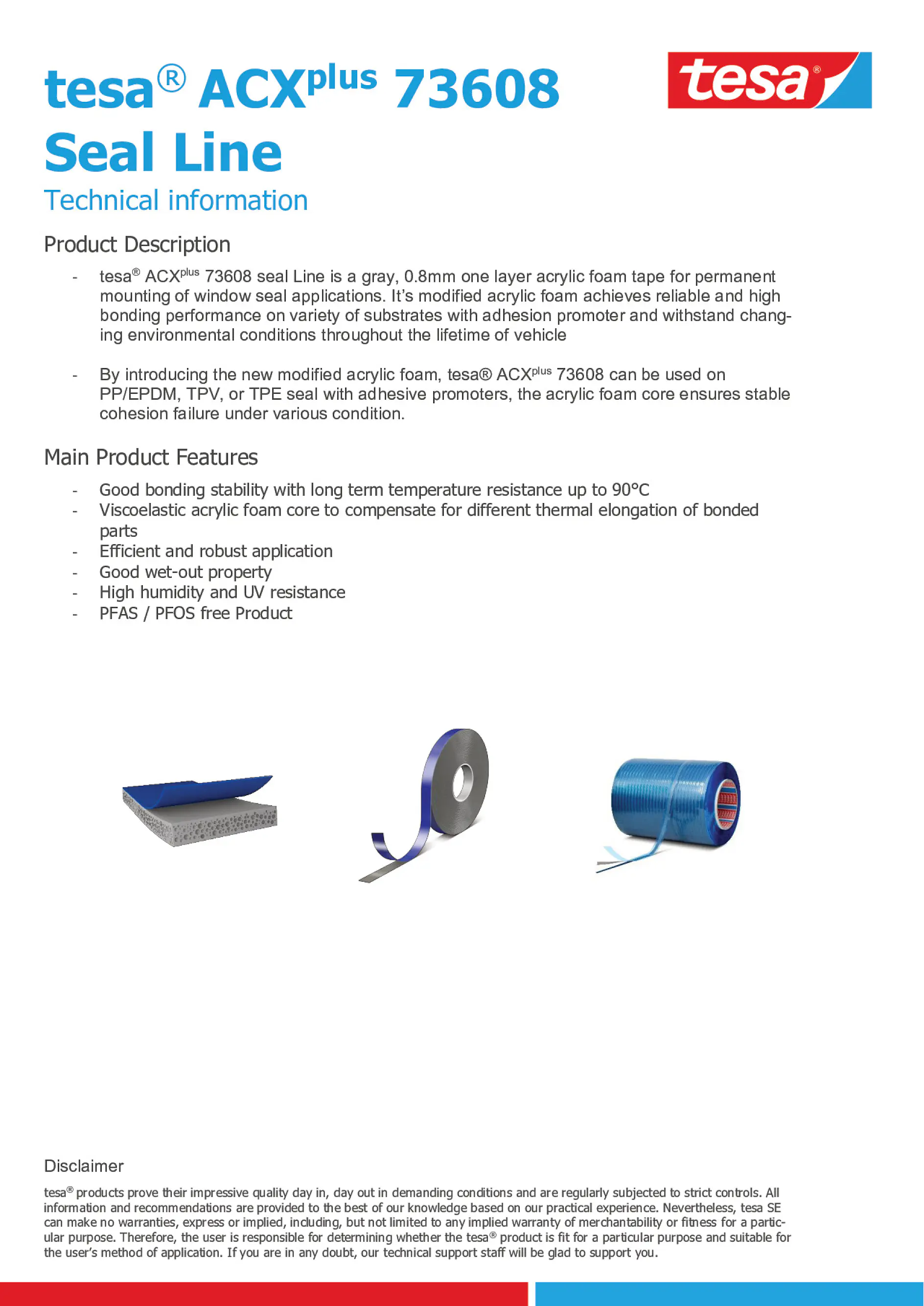

Window seal TI sheet
TI 73608 Window seal TI sheet PDF 216.4 kB

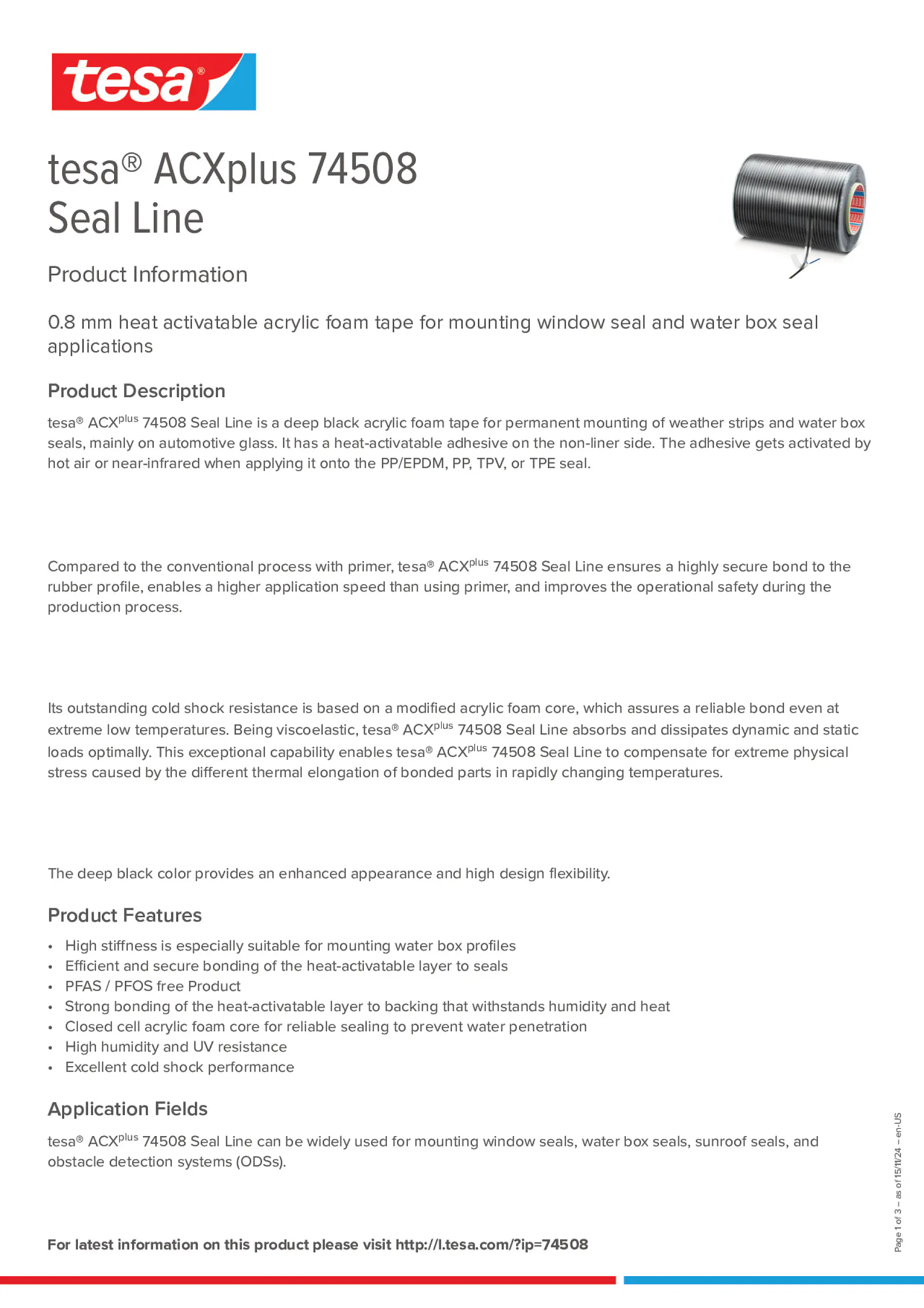

Waterbox seal TI sheet
TI 74508 Waterbox seal TI sheet PDF 86.9 kB
