First Bond, Then Powder - Problem Solved

Technologies

tesa® FUSE 45012 is a ground-breaking bonding solution enabling metal fabricators to bond metal modules with heat-reactive self-adhesive tape before powder coating.

Introducing tesa® FUSE 45012:

  • Heat-reactive self-adhesive tape in roll format
  • Bonds metal parts before powder coating
  • Cures to final strength in the powder coating oven
  • Features semi-structural bonding performance

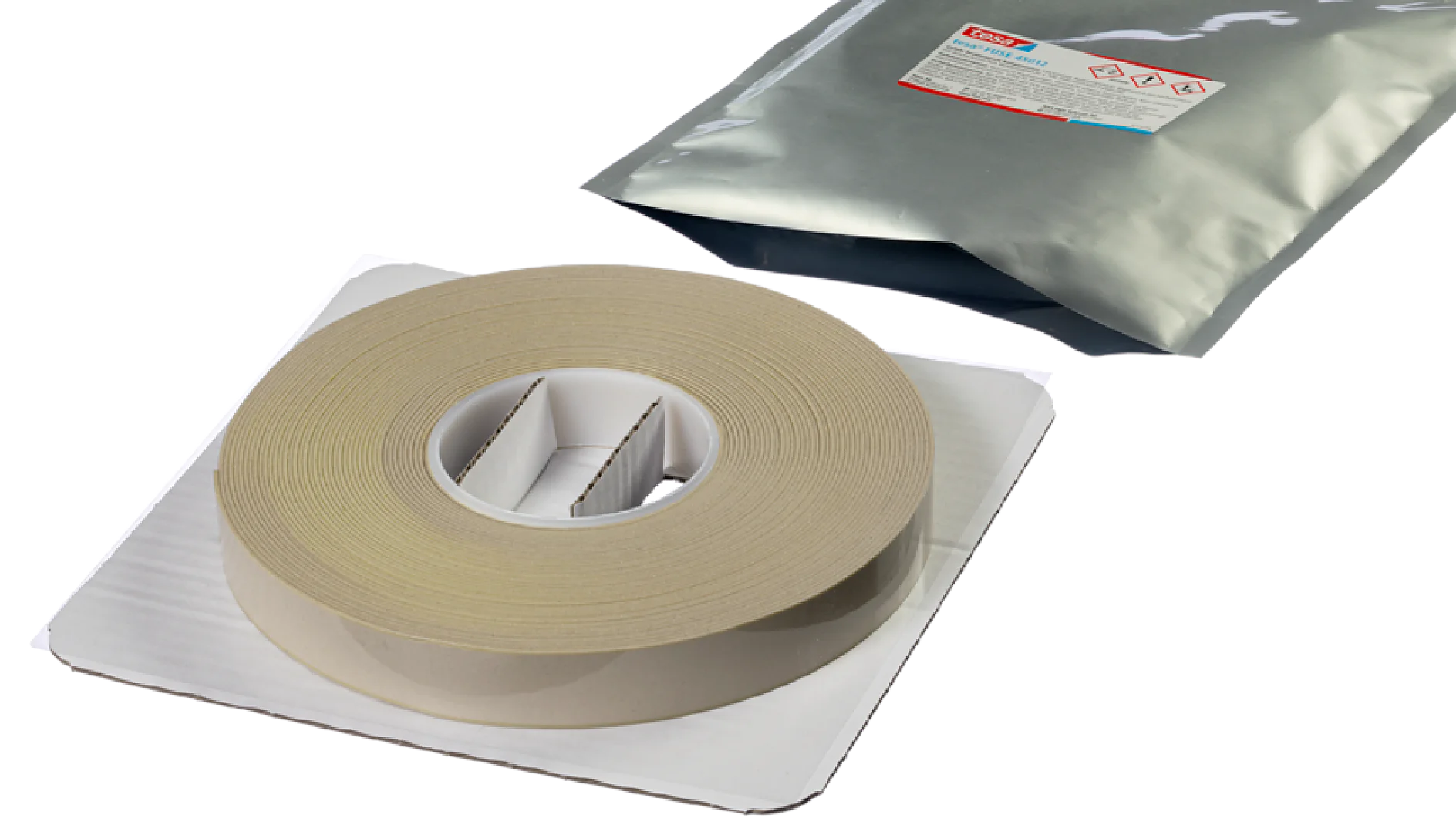

A large roll of beige tesa tape is placed on a white cardboard holder. Behind it, there is a silver-colored foil package with a label. The scene appears to be set on a plain white background.
tesa® FUSE 45012 roll with pouch

Typical Applications

tesa® FUSE 45012 can be used to bond metal parts, even dissimilar materials like steel and aluminium. It provides a firm and durable bond for applications such as stiffeners, frames, cover plates, or attachment parts.

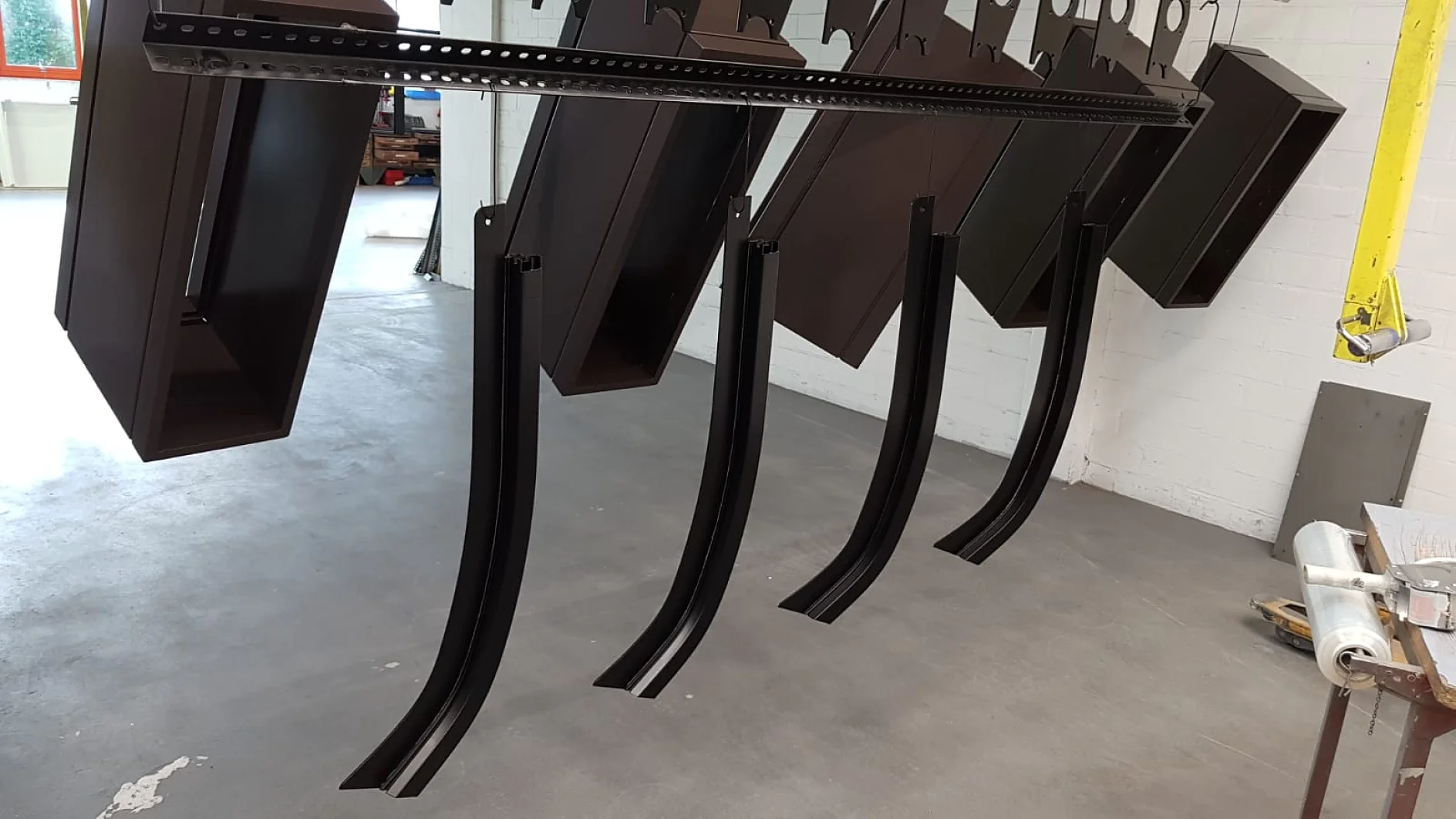

Several metal components, including rectangular boxes and curved bars, are hanging from hooks attached to a metal frame in what appears to be a workshop or assembly area with a concrete floor and white brick walls. (This text has been generated by AI)
A stack of metallic panels and a separate metal strip lying on a flat surface. The panels appear reflective and are partially wrapped at the edges with tesa tape. The metal strip rests diagonally across the panels. The background includes wooden elements. (This text has been generated by AI)
Stacks of large metal panels are leaning against a table in a warehouse. Nearby, there are boxes on a cart and other materials, including rolls of tesa tape. The scene is well-lit, with a concrete floor and industrial surroundings. (This text has been generated by AI)
A metal tray with a shallow edge is secured using tesa tape on a wooden pallet. The pallet is situated on a paved outdoor surface. Another reflective metal sheet or tray, also secured with tesa tape, is partially visible in the background on the pallet. (This text has been generated by AI)
A series of rectangular frames hang from a metal rod in an industrial setting. The frames are painted dark gray and are suspended in a row against a background of white brick walls and a concrete floor, all secured using tesa tape. (This text has been generated by AI)
1 / 5

Powder coated modules bonded with tesa® FUSE 45012 on hooks

2 / 5

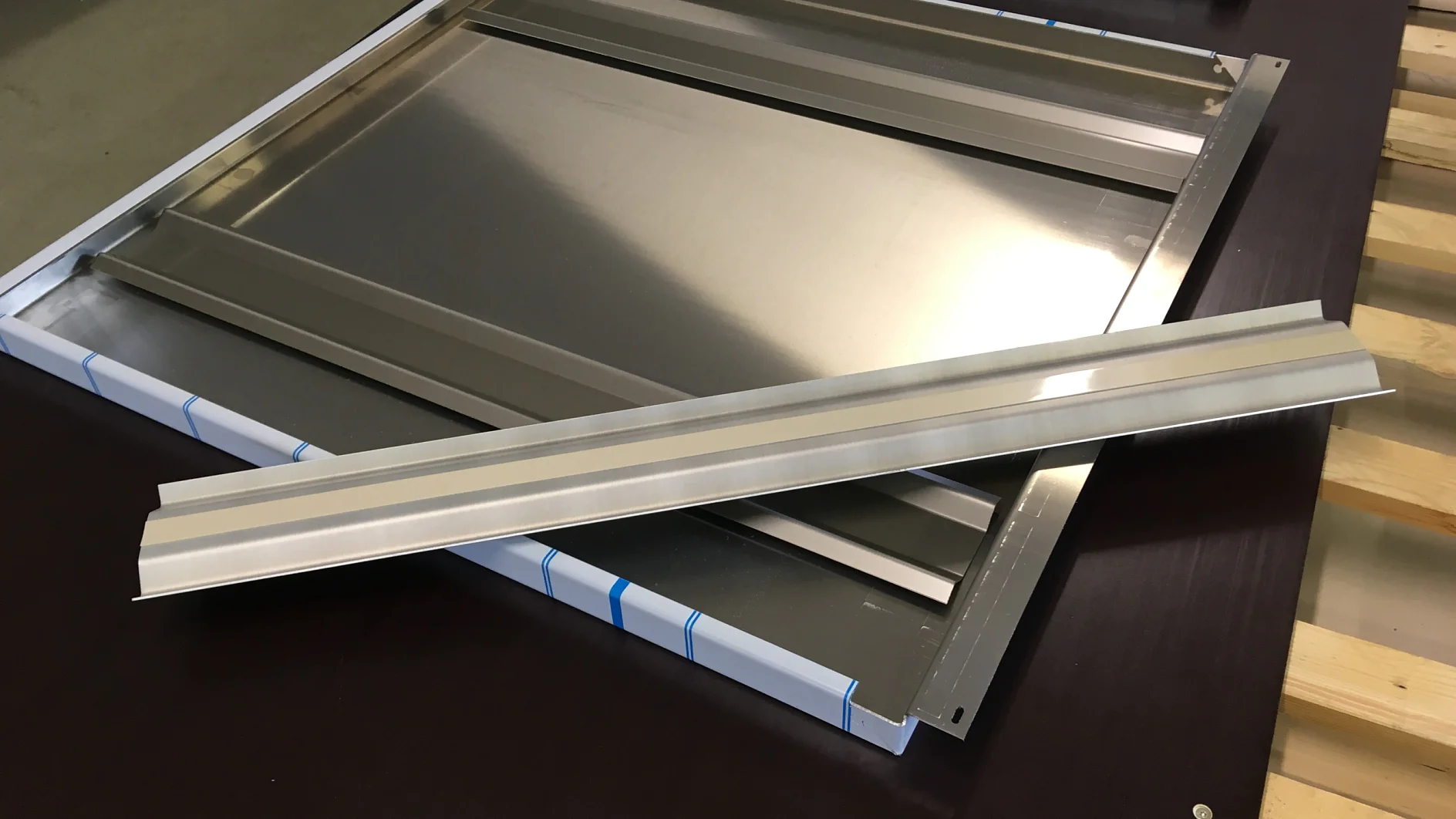

Panels and stiffener bars bonded with tesa® FUSE 45012 before powder coating

3 / 5

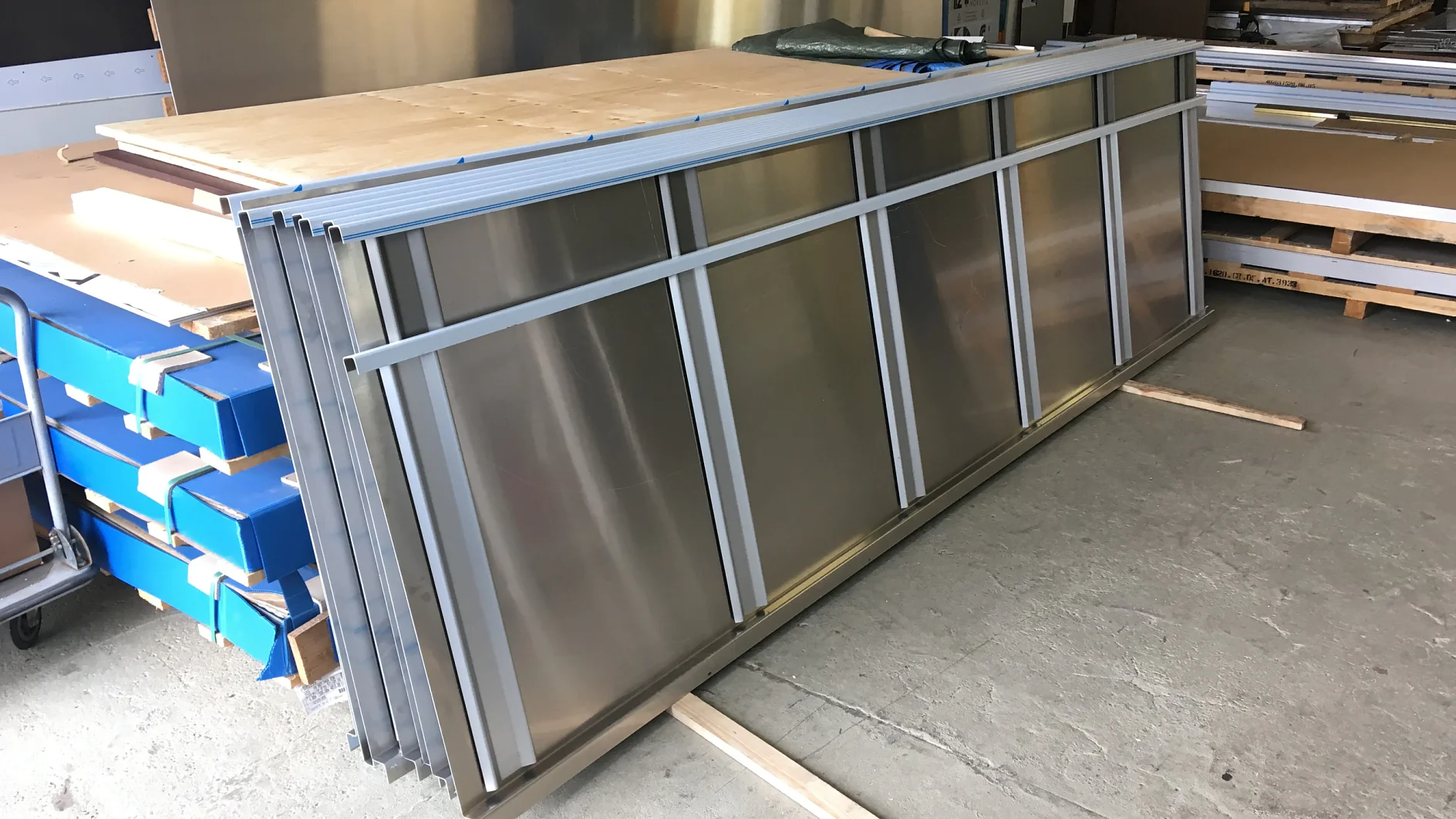

Large architectural panels bonded with tesa® FUSE 45012 before powder coating

4 / 5

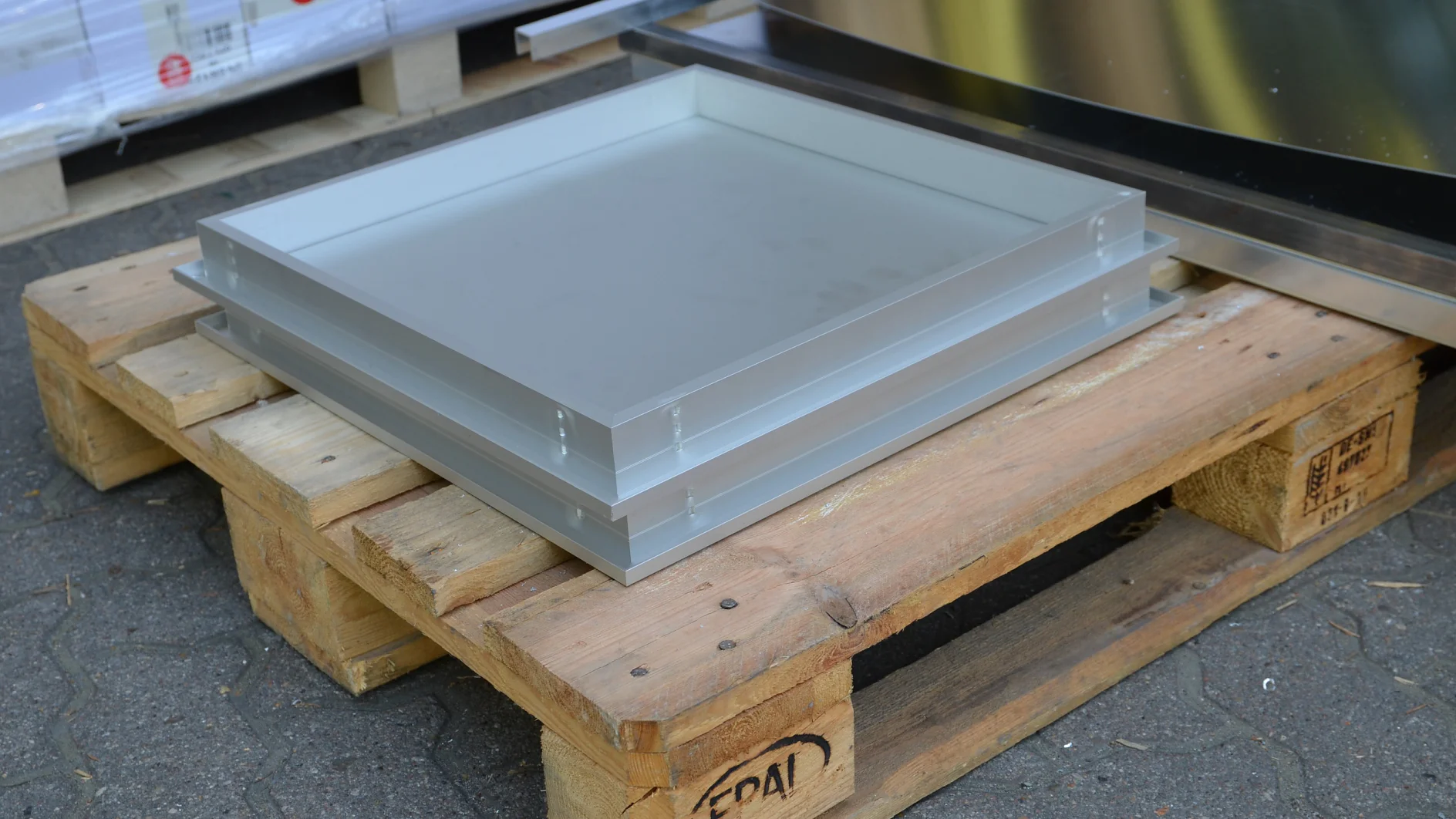

Panels bonded with tesa® FUSE 45012 on pallet before powder coating

5 / 5

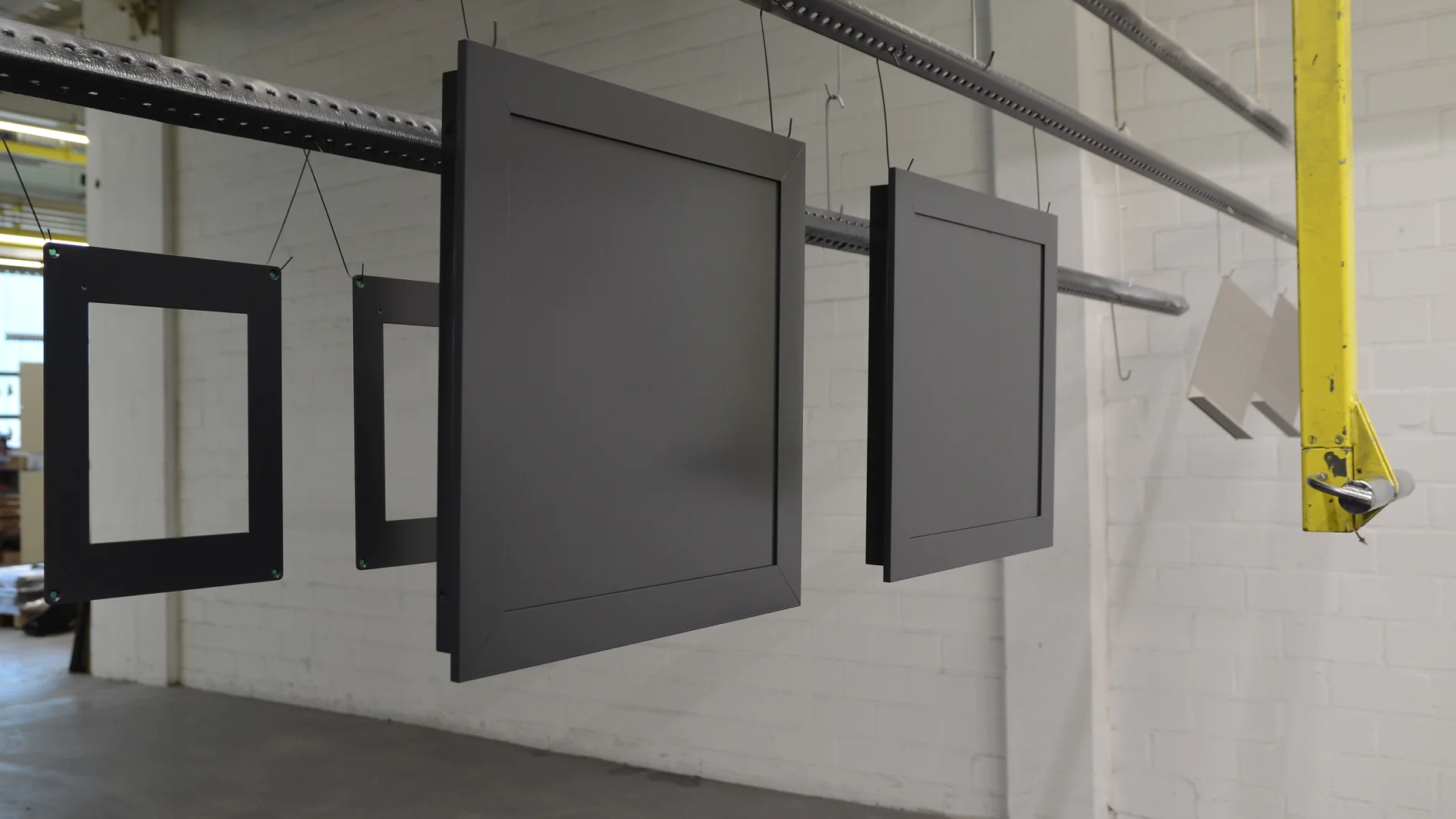

Powder coated panels bonded with tesa® FUSE 45012

Working Principle

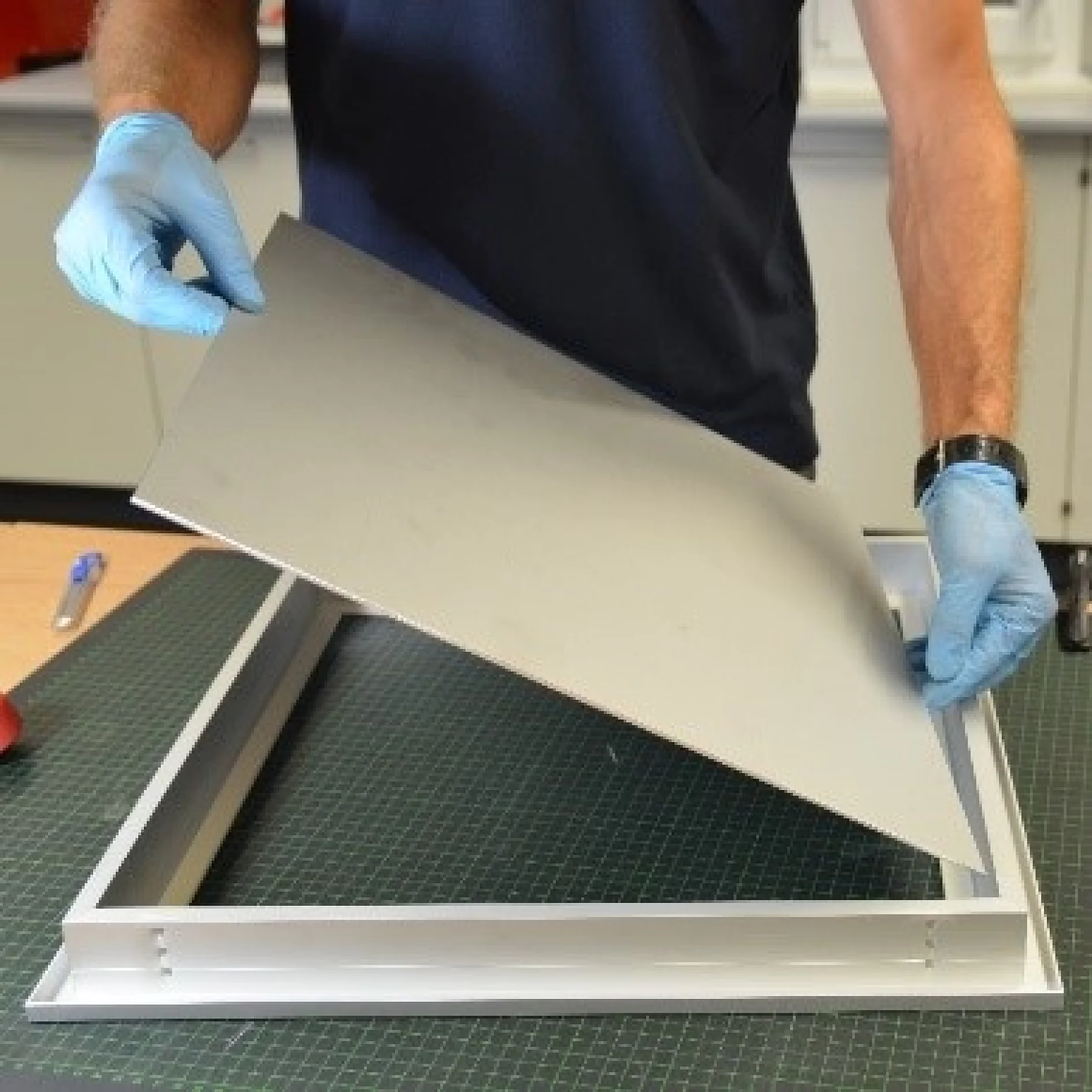

A person wearing a dark short-sleeve shirt and blue gloves is assembling or disassembling a metal frame and panel. They are holding a rectangular metal sheet above a rectangular metal frame on a green grid mat, using tesa tape for secure positioning. (This text has been generated by AI)

01Metal Bonding

tesa® FUSE 45012 can be applied like a self-adhesive tape during assembling. It saves time due to a fast, clean, and simple process.

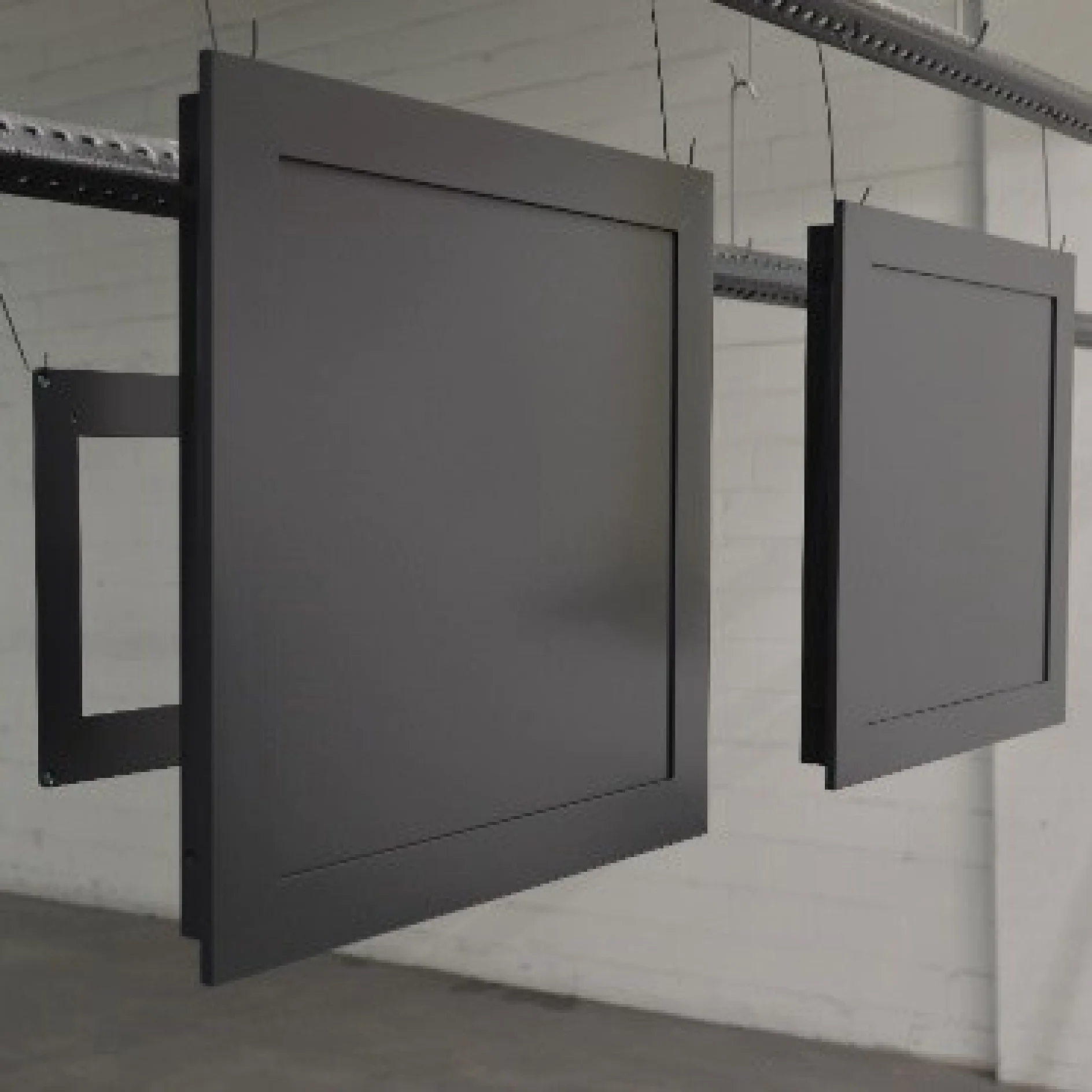

Two black, square metal frames hang from a rail inside an industrial-looking space with a white brick wall. The frames are suspended at different angles using tesa tape, suggesting they are part of a manufacturing process. (This text has been generated by AI)

02Powder Coating

tesa® FUSE 45012 withstands typical chemical pretreatments, the cleaning and drying process, as well as very high oven temperatures. During the baking process, tesa® FUSE 45012 cures to final strength.

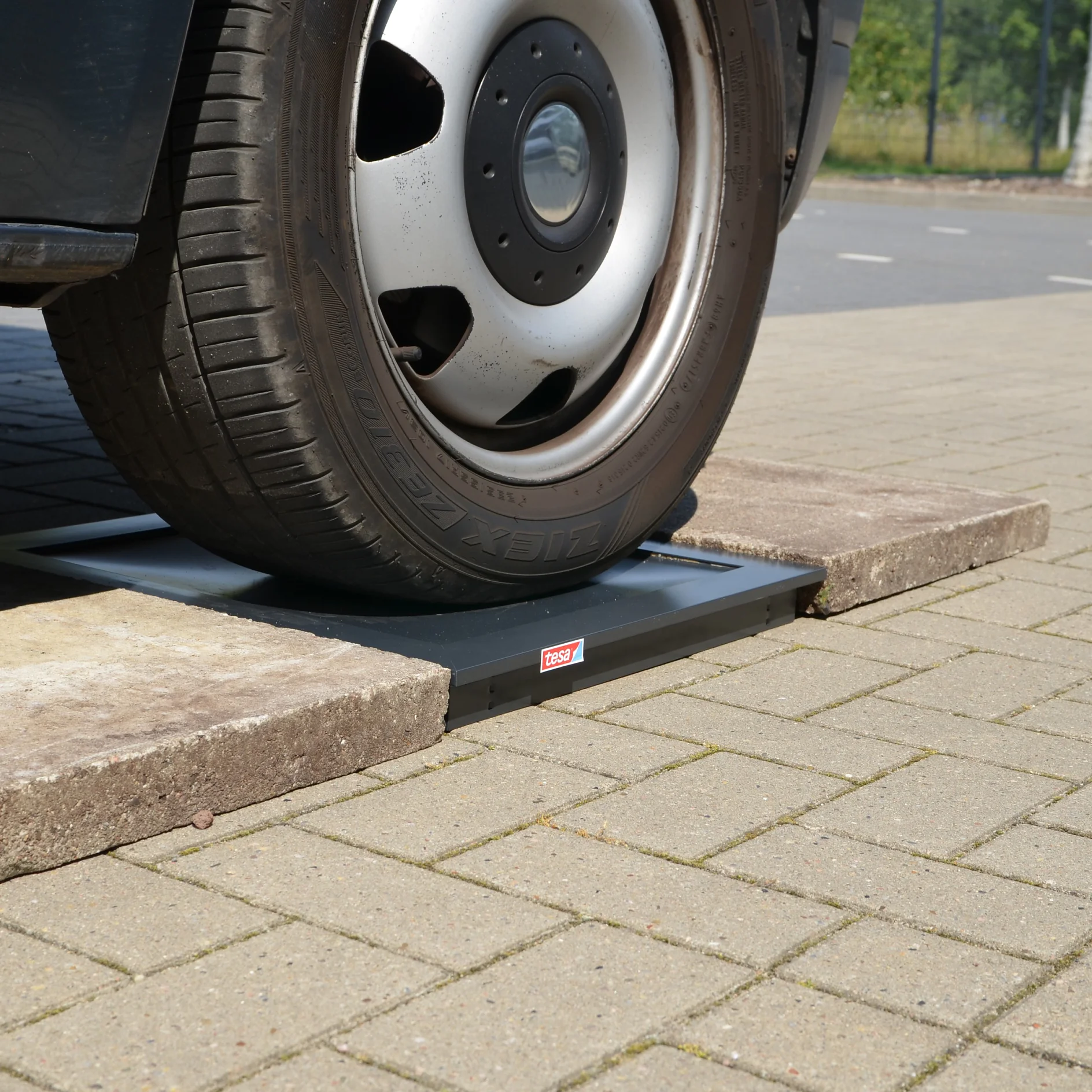

A car tire is positioned on a black metal platform placed on a paved area, secured with tesa tape. The platform is flanked by two concrete slabs. The setting appears to be outdoor, with a portion of the road visible in the background. (This text has been generated by AI)

03Outstanding Performance

After powder coating, tesa® FUSE 45012 provides very high bonding strength and temperature resistance. It remains elastic enough to compensate for thermal elongation of different metal types.

How To Use tesa® FUSE 45012
1 / 1

Your Advantages

tesa® FUSE 45012 has been designed to combine the advantages of tape with the strength of an adhesive. It allows metal fabricators to improve their processes and implement new ideas.

  • Invisible Bond - Perfect surface finish
  • Design Freedom – Build modules from different metal types
  • Efficient Process – Finish module assembly before powder coating
  • Higher Performance - Significantly higher bonding strength and temperature resistance than regular tape
  • Time-saving – No surface finish or rework like grinding needed
  • Increased productivity - Immediate handling, no curing time needed

Product Details

tesa® FUSE 45012 is a heat-reactive self-adhesive tape in roll format covered with a filmic liner.

Thickness Lap shear strength [a] Maximum shear strain [b] Long term temperature resistance [c]
1,2 mm 310 N/cm² 360 % 120°C
  • [a] After curing for 30 minutes at 200°C
  • [b] See note a above
  • [c] Static lap shear test according to tesa test methods. Hold 2 kg for 10.000 minutes with a bonding area of 3,125 cm².
