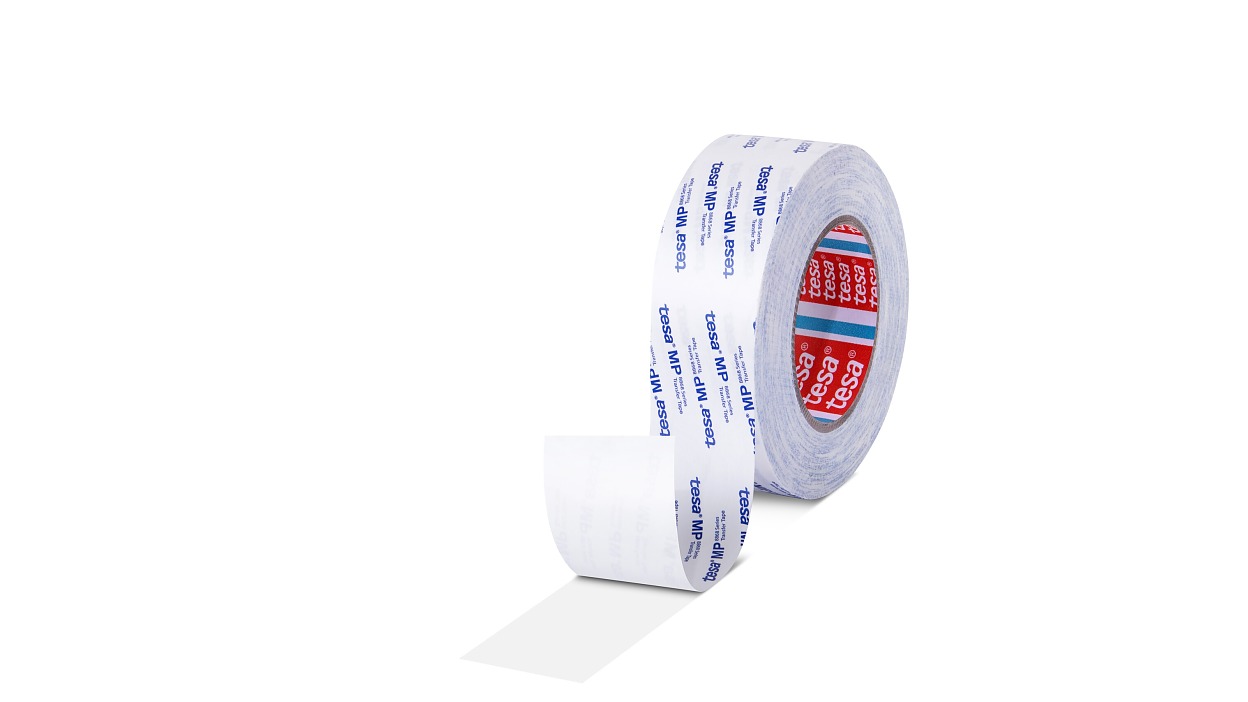

tesa® 88682
135μm double sided transfer tape
produk fitur
- Excellent initial and ultimate adhesion to a wide variety substrates
- Good converting and die-cutting performance
- Highly conformable to uneven surfaces
Product description
tesa® 88682 is a transparent double-sided transfer tape with tackified acrylic adhesive. This tackified acrylic adhesive offers good adhesion to various substrates. This product provides ideal solution for multi-purpose mounting and extremely converting and die-cutting friendly.
Detail Produk dan Spesifikasi
produk fitur
- Excellent initial and ultimate adhesion to a wide variety substrates
- Good converting and die-cutting performance
- Highly conformable to uneven surfaces
- Good temperature resistance
- High shear resistance
Application Fields
- Lamination of foams, fabrics, and textiles
- Name plate mounting
- Membrane switch mounting

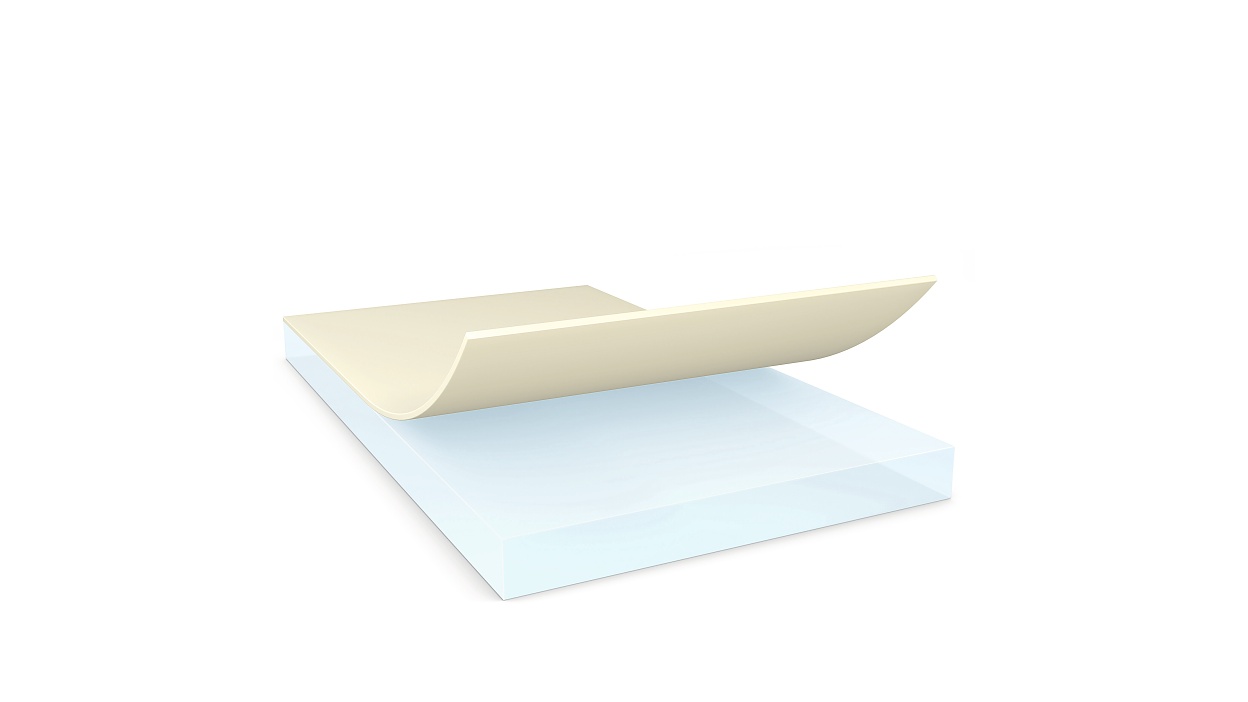

Product Construction
| Bahan penyangga | none |
|---|---|
| Berat liner | 120 g/m² |
| Jenis Liner | PE-coated paper |
| Jenis Perekat | tackified acrylic |
| Ketebalan liner | 135 µm |
| Warna | transparent |
| Warna liner | white/blue logo |
Product Construction
| Bahan penyangga | none |
|---|---|
| Berat liner | 120 g/m² |
| Jenis Liner | PE-coated paper |
| Jenis Perekat | tackified acrylic |
| Ketebalan liner | 135 µm |
| Warna | transparent |
| Warna liner | white/blue logo |
Properties / Performance Values
| Paku payung | good |
|---|---|
| Durasi ketahanan suhu jangka pendek | 200 °C |
| Durasi ketahanan suhu jangka panjang | 100 °C |
| Ketahanan terhadap geser statis pada 23 °C | good |
Properties / Performance Values
| Paku payung | good |
|---|---|
| Durasi ketahanan suhu jangka pendek | 200 °C |
| Durasi ketahanan suhu jangka panjang | 100 °C |
| Ketahanan terhadap geser statis pada 23 °C | good |
Adhesion to Values
| Daya rekat ke ABS (awal) | 12 N/cm |
|---|---|
| Daya rekat ke ABS (setelah 3 hari) | 12 N/cm |
| Daya rekat ke PC (awal) | 14 N/cm |
| Daya rekat ke PC (setelah 3 hari) | 14 N/cm |
| Daya rekat ke PMMA (awal) | 14 N/cm |
| Daya rekat ke PMMA (setelah 3 hari) | 14 N/cm |
| Daya rekat ke PP (awal) | 1 N/cm |
| Daya rekat ke PP (setelah 3 hari) | 2 N/cm |
| Daya rekat ke PVC (awal) | 8 N/cm |
| Daya rekat ke Baja (awal) | 9 N/cm |
| Daya rekat ke Baja (setelah 3 hari) | 11 N/cm |
Adhesion to Values
| Daya rekat ke ABS (awal) | 12 N/cm |
|---|---|
| Daya rekat ke ABS (setelah 3 hari) | 12 N/cm |
| Daya rekat ke PC (awal) | 14 N/cm |
| Daya rekat ke PC (setelah 3 hari) | 14 N/cm |
| Daya rekat ke PMMA (awal) | 14 N/cm |
| Daya rekat ke PMMA (setelah 3 hari) | 14 N/cm |
| Daya rekat ke PP (awal) | 1 N/cm |
| Daya rekat ke PP (setelah 3 hari) | 2 N/cm |
| Daya rekat ke PVC (awal) | 8 N/cm |
| Daya rekat ke Baja (awal) | 9 N/cm |
| Daya rekat ke Baja (setelah 3 hari) | 11 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Unduh file di bawah ini untuk detail teknis dan informasi lebih lanjut tentang produk ini.
