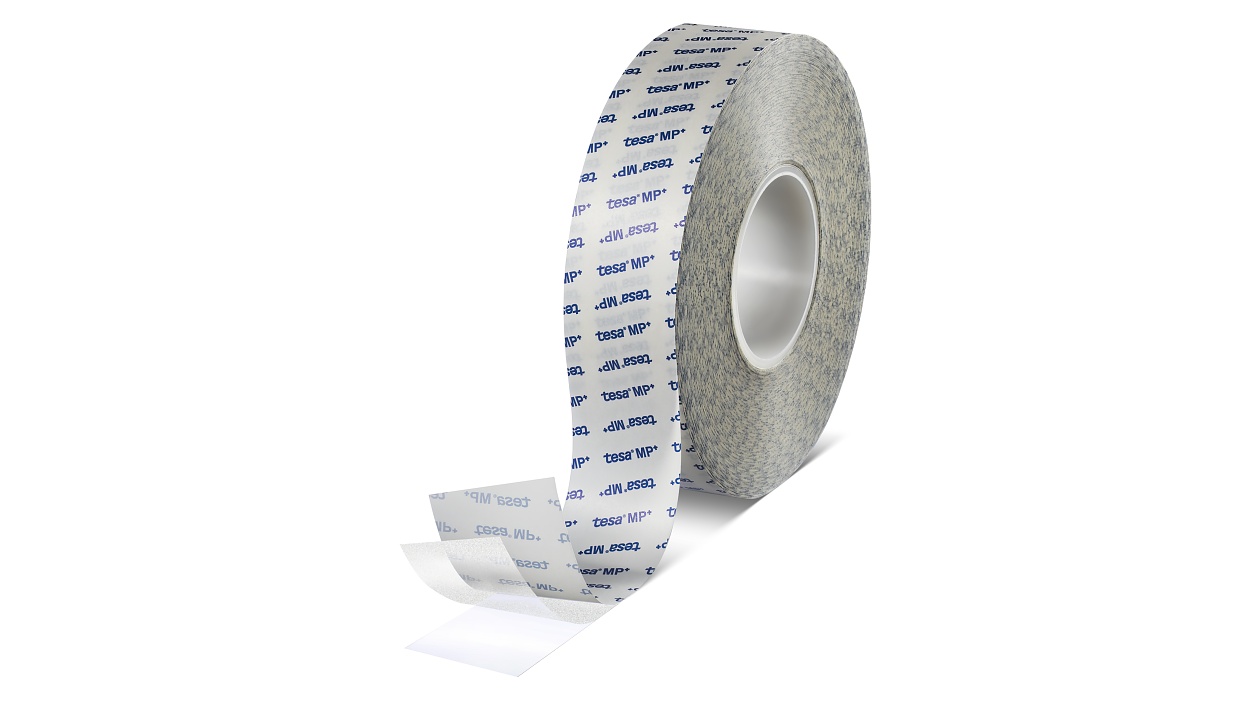

tesa® 88665
115 µm double sided PET film differential tape (Silicone/Acrylic)
produk fitur
- Excellent bonding properties of the silicone adhesive especially to silicone or silicone containing substrates
- Excellent bonding properties of the acrylic adhesive to a wide range of materials
- Very good handling performance in converting processes
Product description
tesa® 88665 is a transparent double-sided tape with a PET-backing. One side is equipped with a silicone adhesive (easy side) and the other side is equipped with a modified acrylic (tight side). it's designed for the demanding applications where silicone materials must be bonded to a range of substrates.
Detail Produk dan Spesifikasi
produk fitur
- Excellent bonding properties of the silicone adhesive especially to silicone or silicone containing substrates
- Excellent bonding properties of the acrylic adhesive to a wide range of materials
- Very good handling performance in converting processes
- Great resistance to demanding environmental conditions

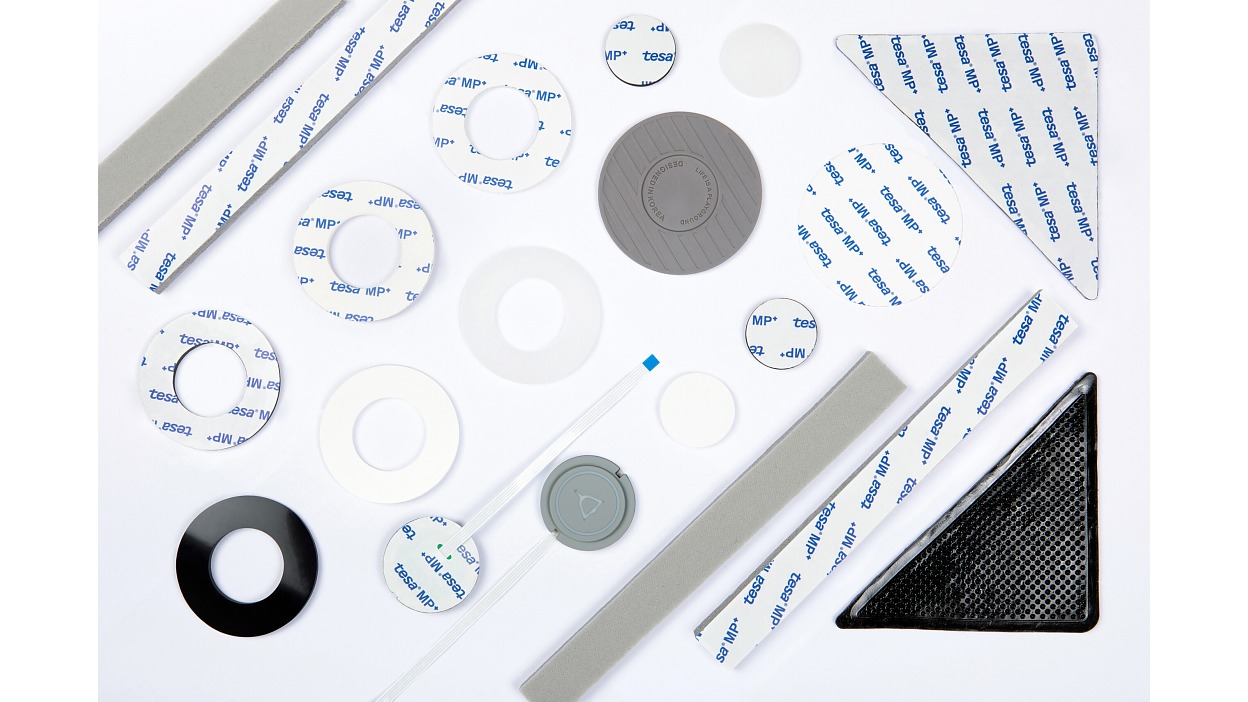

Application Fields
- Silicone foam lamination
- Silicone rubber mounting (rubber feet, phone case, keypad, gasket etc )
- Other critical surface mounting (PP. PE etc.)
Product Construction
| Bahan penyangga | PET |
|---|---|
| Jenis liner (pelepasan mudah) | PET film |
| Jenis liner (pelepasan rapat) | coated paper |
| Jenis perekat (mudah lepas) | silicone |
| Jenis perekat (pelepasan rapat) | tackified acrylic |
| Ketebalan total | 115 µm |
| Warna | transparent |
Product Construction
| Bahan penyangga | PET |
|---|---|
| Jenis liner (pelepasan mudah) | PET film |
| Jenis liner (pelepasan rapat) | coated paper |
| Jenis perekat (mudah lepas) | silicone |
| Jenis perekat (pelepasan rapat) | tackified acrylic |
| Ketebalan total | 115 µm |
| Warna | transparent |
Properties / Performance Values
| Perpanjangan saat putus | 75 % |
|---|---|
| Kekuatan tarik | 50 N/cm |
| Durasi ketahanan suhu jangka pendek | 150 °C |
| Ketahanan terhadap geser statis pada 23 °C | very good |
Properties / Performance Values
| Perpanjangan saat putus | 75 % |
|---|---|
| Kekuatan tarik | 50 N/cm |
| Durasi ketahanan suhu jangka pendek | 150 °C |
| Ketahanan terhadap geser statis pada 23 °C | very good |
Adhesion to Values
| Daya rekat ke PC (sisi rapat, awal) | 6,5 N/cm |
|---|---|
| Daya rekat ke PC (sisi yang rapat, setelah 14 hari) | 10,8 N/cm |
| Daya rekat ke PP (sisi mudah, setelah 14 hari) | 7 N/cm |
| Daya rekat ke PP (sisi rapat, awal) | 2,4 N/cm |
| Daya rekat ke PP (sisi mudah, awal) | 4,8 N/cm |
| Daya rekat ke PP (sisi yang rapat, setelah 14 hari) | 2,4 N/cm |
| Daya rekat ke Silikon (sisi mudah, setelah 14 hari) | 9,5 N/cm |
| Daya rekat ke Silikon (sisi mudah, awal) | 6,3 N/cm |
| Daya rekat ke Baja (awal) | 6,9 N/cm |
| Daya rekat ke Baja (sisi mudah, awal) | 6,9 N/cm |
| Daya rekat ke Baja (sisi mudah, setelah 14 hari) | 7,6 N/cm |
| Daya rekat ke Baja (sisi rapat, awal) | 6,4 N/cm |
| Daya rekat ke Baja (sisi yang rapat, setelah 14 hari) | 9,3 N/cm |
Adhesion to Values
| Daya rekat ke PC (sisi rapat, awal) | 6,5 N/cm |
|---|---|
| Daya rekat ke PC (sisi yang rapat, setelah 14 hari) | 10,8 N/cm |
| Daya rekat ke PP (sisi mudah, setelah 14 hari) | 7 N/cm |
| Daya rekat ke PP (sisi rapat, awal) | 2,4 N/cm |
| Daya rekat ke PP (sisi mudah, awal) | 4,8 N/cm |
| Daya rekat ke PP (sisi yang rapat, setelah 14 hari) | 2,4 N/cm |
| Daya rekat ke Silikon (sisi mudah, setelah 14 hari) | 9,5 N/cm |
| Daya rekat ke Silikon (sisi mudah, awal) | 6,3 N/cm |
| Daya rekat ke Baja (awal) | 6,9 N/cm |
| Daya rekat ke Baja (sisi mudah, awal) | 6,9 N/cm |
| Daya rekat ke Baja (sisi mudah, setelah 14 hari) | 7,6 N/cm |
| Daya rekat ke Baja (sisi rapat, awal) | 6,4 N/cm |
| Daya rekat ke Baja (sisi yang rapat, setelah 14 hari) | 9,3 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
