tesa® ACXplus 74712 Seal Line
Product details and specifications

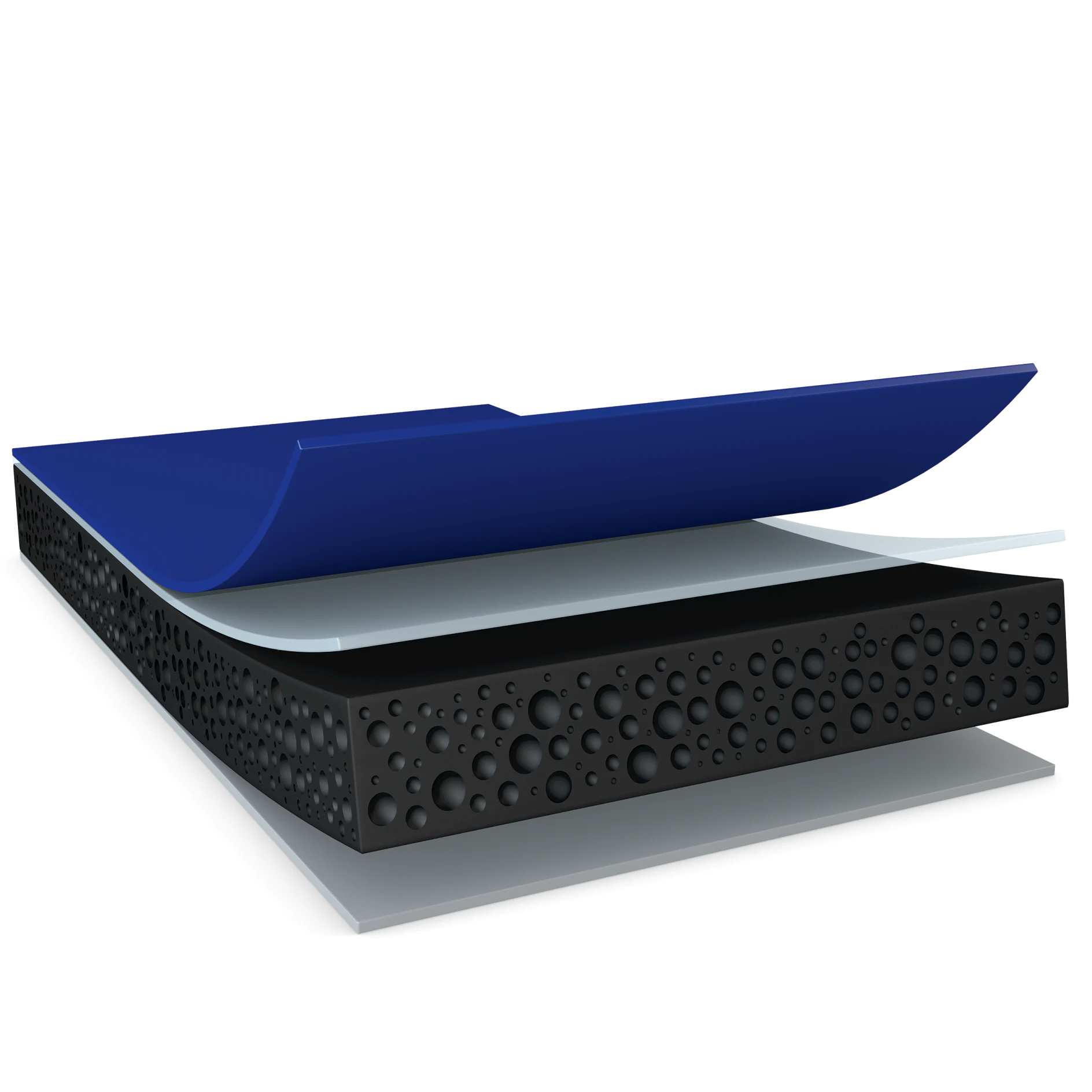

Product Construction
| Backing material | foamed acrylic |
|---|---|
| Colour | deep black |
| Colour of liner | blue |
| Total thickness | 1,200 µm |
| Type of adhesive | acrylic |
| Type of adhesive to seal | heat-activatable |
| Type of liner | PE/PP protection film |
Product Construction
| Backing material | foamed acrylic |
|---|---|
| Colour | deep black |
| Colour of liner | blue |
| Total thickness | 1,200 µm |
| Type of adhesive | acrylic |
| Type of adhesive to seal | heat-activatable |
| Type of liner | PE/PP protection film |
Properties / Performance Values
| Elongation at break | 500 % |
|---|---|
| Tensile strength | 19 N/cm |
| Humidity resistance | very good |
| Ageing resistance (UV) | very good |
Properties / Performance Values
| Elongation at break | 500 % |
|---|---|
| Tensile strength | 19 N/cm |
| Humidity resistance | very good |
| Ageing resistance (UV) | very good |
Adhesion to Values
| Adhesion to Clear coat (covered side, after 3 days) | 36 N/cm |
|---|---|
| Adhesion to Clear coat (after 20 min) | 18 N/cm |
| Adhesion to Steel (initial) | 36 N/cm |
| Adhesion to Steel (after 3 days) | 36 N/cm |
| Adhesion to TPE (T-Peel, after 3 days warm / humid) | 16 N/cm |
| Adhesion to TPE (T-Peel, after 3 days) | 16 N/cm |
Adhesion to Values
| Adhesion to Clear coat (covered side, after 3 days) | 36 N/cm |
|---|---|
| Adhesion to Clear coat (after 20 min) | 18 N/cm |
| Adhesion to Steel (initial) | 36 N/cm |
| Adhesion to Steel (after 3 days) | 36 N/cm |
| Adhesion to TPE (T-Peel, after 3 days warm / humid) | 16 N/cm |
| Adhesion to TPE (T-Peel, after 3 days) | 16 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
