tesa® 50320 Low VOC

180 µm tackified acrylic adhesive with hand-tearable PE backing for cable mounting applications in automotive interiors


Product Features
  • Excellent shear and peel resistance
  • Low VOC (according to GB 27630) – no critical substances detectable
  • Suitable for common irregular, rough, and critical surfaces
All product features
Product description

tesa® 50204 is a hand-tearable PE filmic tape with a high performance acrylic adhesive and a thickness of 180 µm for applications in automotive interiors. Due to its low VOC property it is particularly designed to meet automotive interior requirements.
tesa® 50204 is especially designed for cable mounting on different kinds of automotive interior components.


Product details and specifications

Product Features

  • Excellent shear and peel resistance
  • Low VOC (according to GB 27630) – no critical substances detectable
  • Suitable for common irregular, rough, and critical surfaces
  • Low and stable unwind force
  • Suitable for automatic tape dispensers
  • Linerless

Application Fields

tesa® 50204 is suitable for quick and secure fixation of flat and round cables to headliners via straight tape stripes.
Backing material PU film
Colour transparent
Colour of liner brown
Total thickness 75 µm
Type of adhesive water-based acrylic
Type of liner glassine
Elongation at break 200 %
Tensile strength 12.5 N/cm
Tack good
Static shear resistance very good
Adhesion to Steel (initial) 7.5 N/cm
tesa’s automation and application department provides customized equipment and self-designed application tools to enhance productivity.

Adhesion values to:
PET
PET fleece surface
PET fleece Headliner A
are not part of the product specification
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Get in contact with us!

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Product comparison

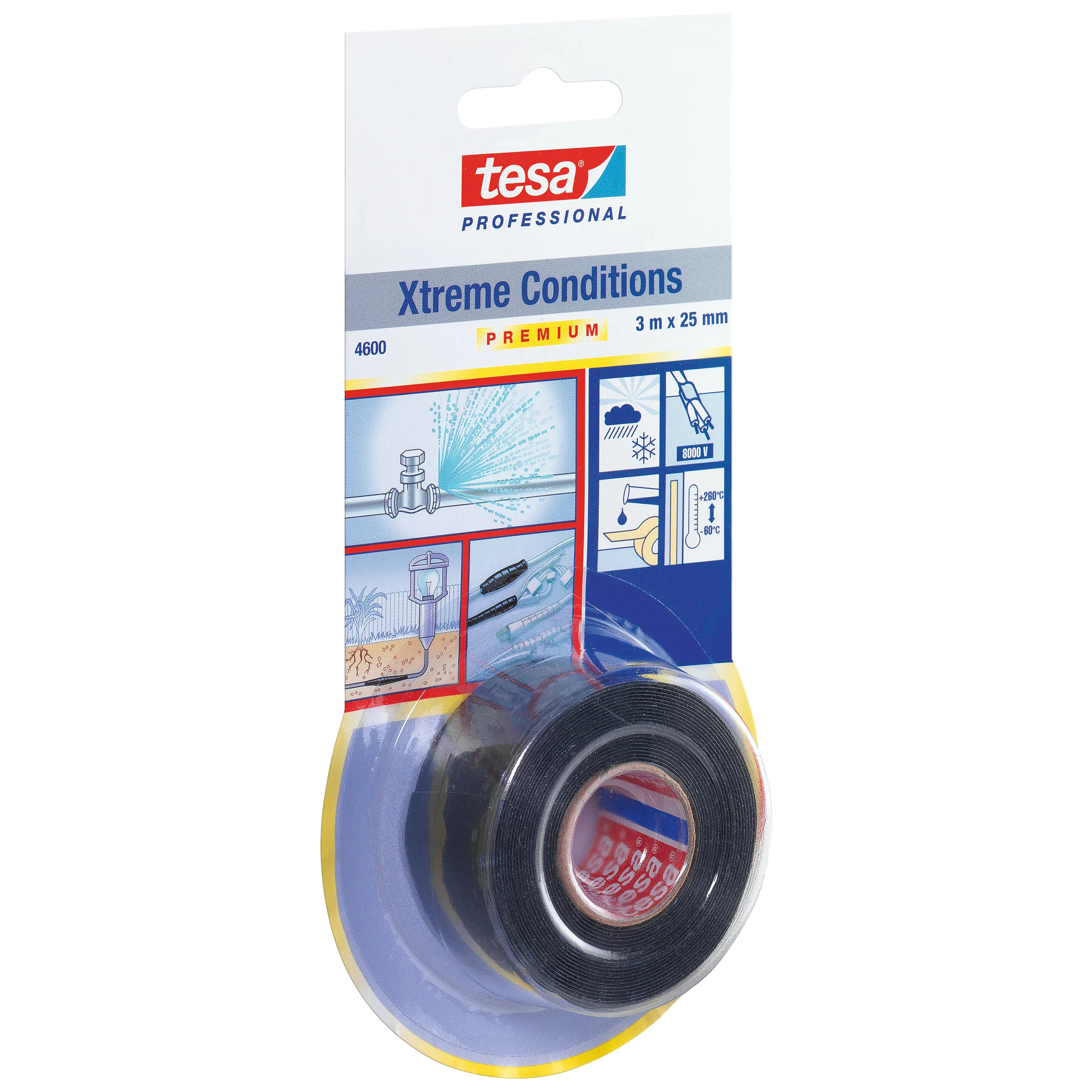

Name of product tesa® 50320 Low VOC tesa® Professional 4600 Xtreme Conditions tesa® 54118 tesa® 50118 PV1 Ultra Low VOC tesa® 54338PV0 tesa® 4848 PV1 tesa® 54994 DC tesa® 4416 tesa® 7446 tesa® 60418 tesa® 4120 hand
Total thickness
75 µm
500 µm
95 µm
48 µm
210 µm
99 µm
36 µm
49 µm
Type of adhesive
water-based acrylic
acrylic
modified acrylic
acrylic
acrylic
acrylic
silicone
synthetic rubber
natural rubber
Backing material
PU film
stretchable specialty
PET fleece
PET film
PE film
PU film
PP film
MOPP
PET
PVC film
Tensile strength
12.5 N/cm
33 N/cm
31 N/cm
12 N/cm
50 N/cm
200 N/cm
38 N/cm
43 N/cm
Tack
good
very good
Thickness of tape
540 µm
Last updated on 16 Apr 2024
