tesa® 4174 is also available for converting and die-cutting with a paper liner (4174 PV4)

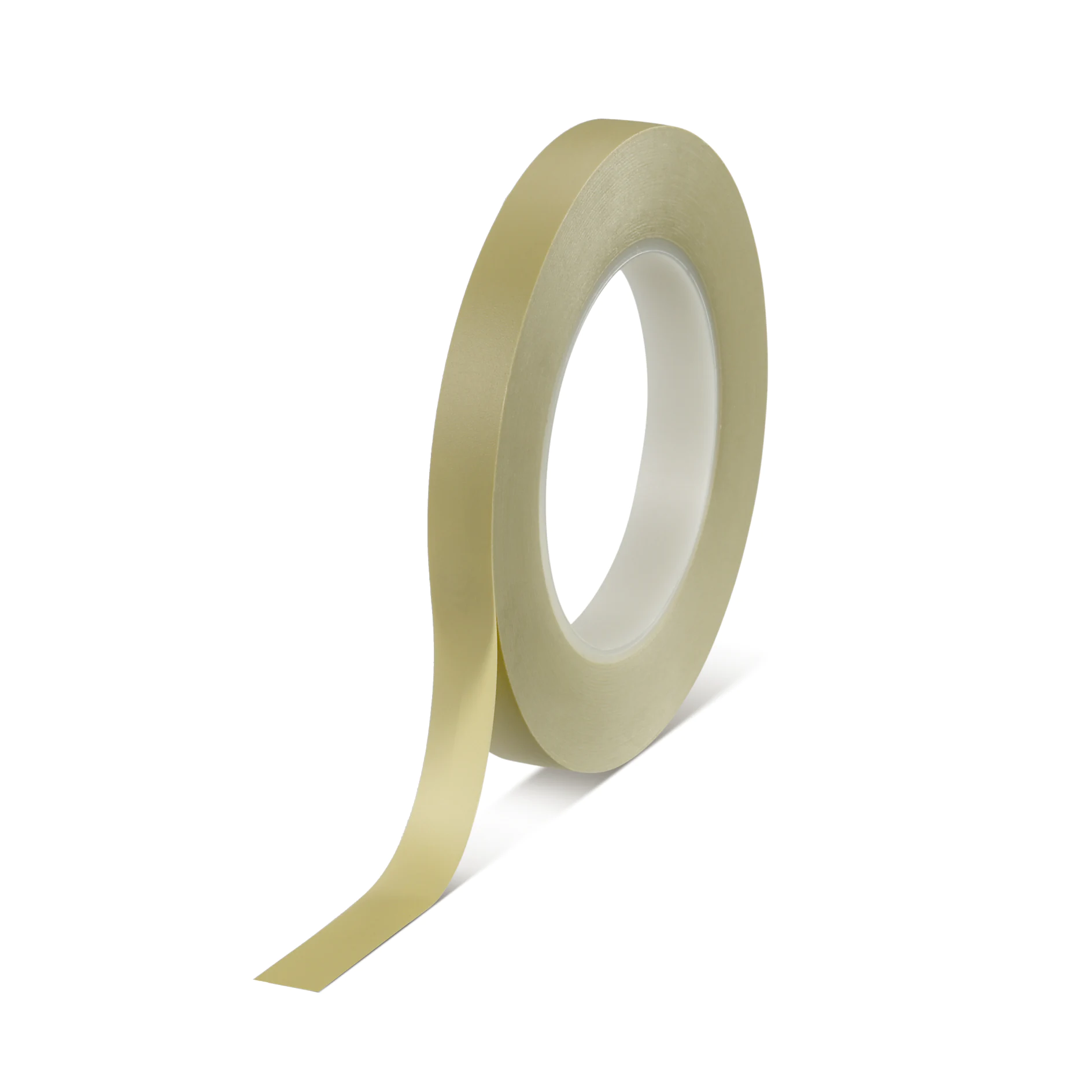

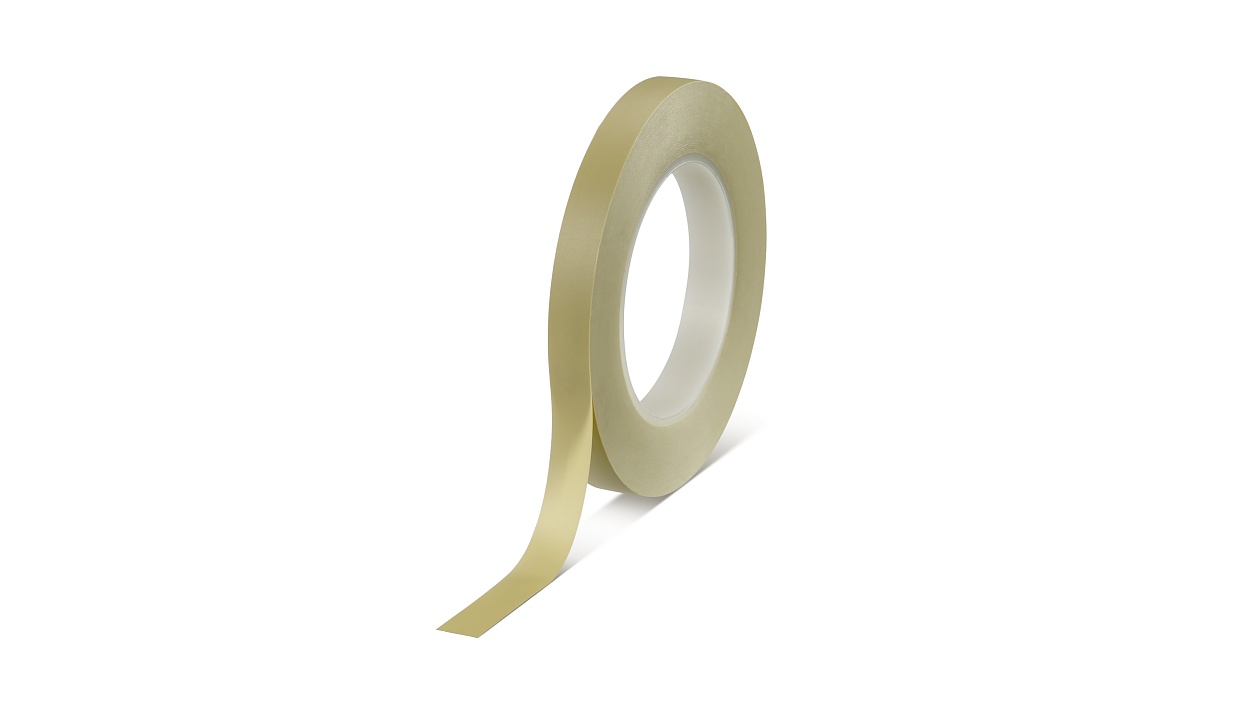

tesa® 4174
Fine line tape for design painting
Product description
tesa® 4174 is a flexible, temperature resistant PVC fineline masking tape with a rubber adhesive for a wide range of design painting requirements
- no shrinking at high temperatures
- conforms to the dimensional change during oven-drying
- no edge lifting and can be removed without leaving any residues
- good conformability to multi dimensional surfaces
Product details and specifications
Application Fields

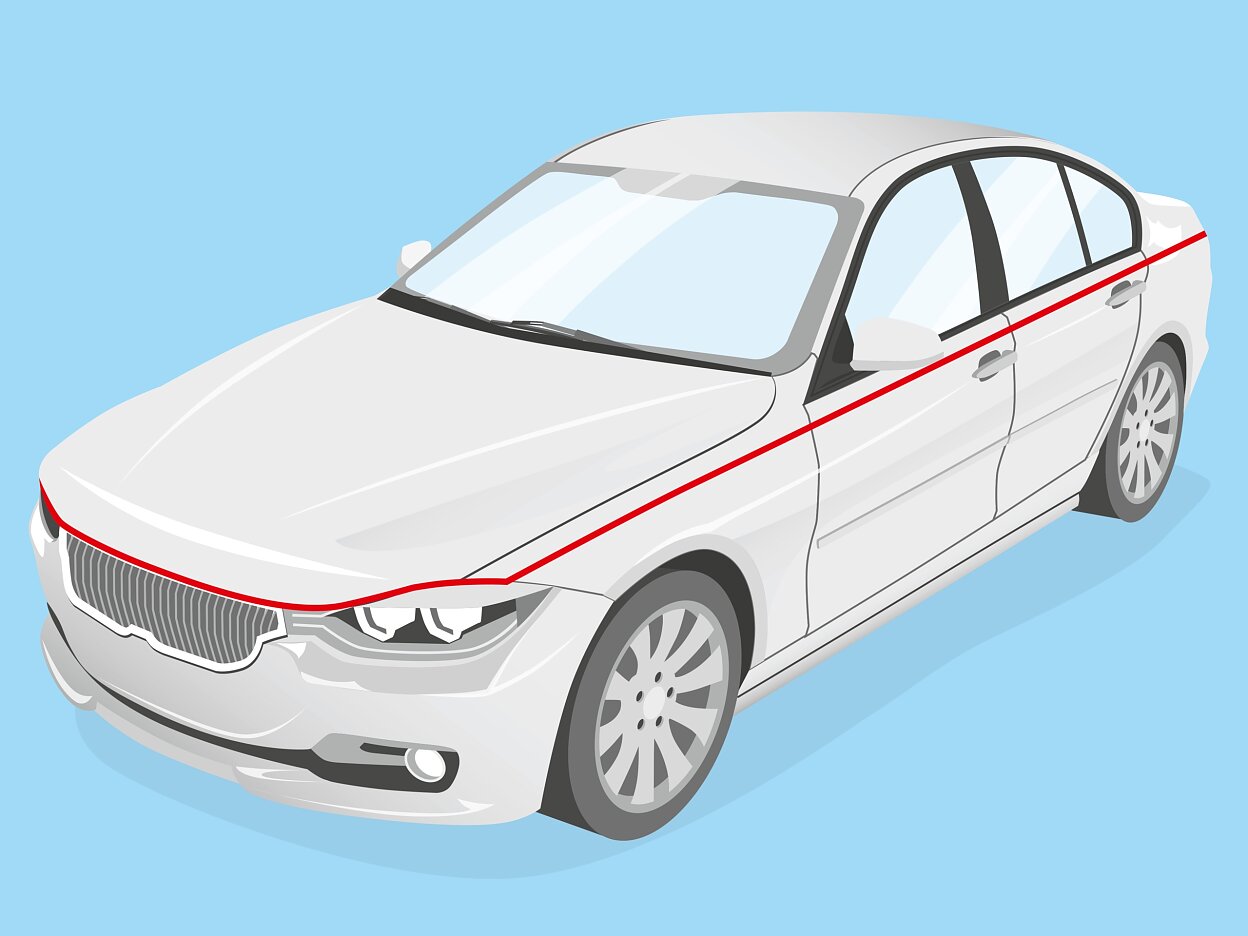

- Lacquering work

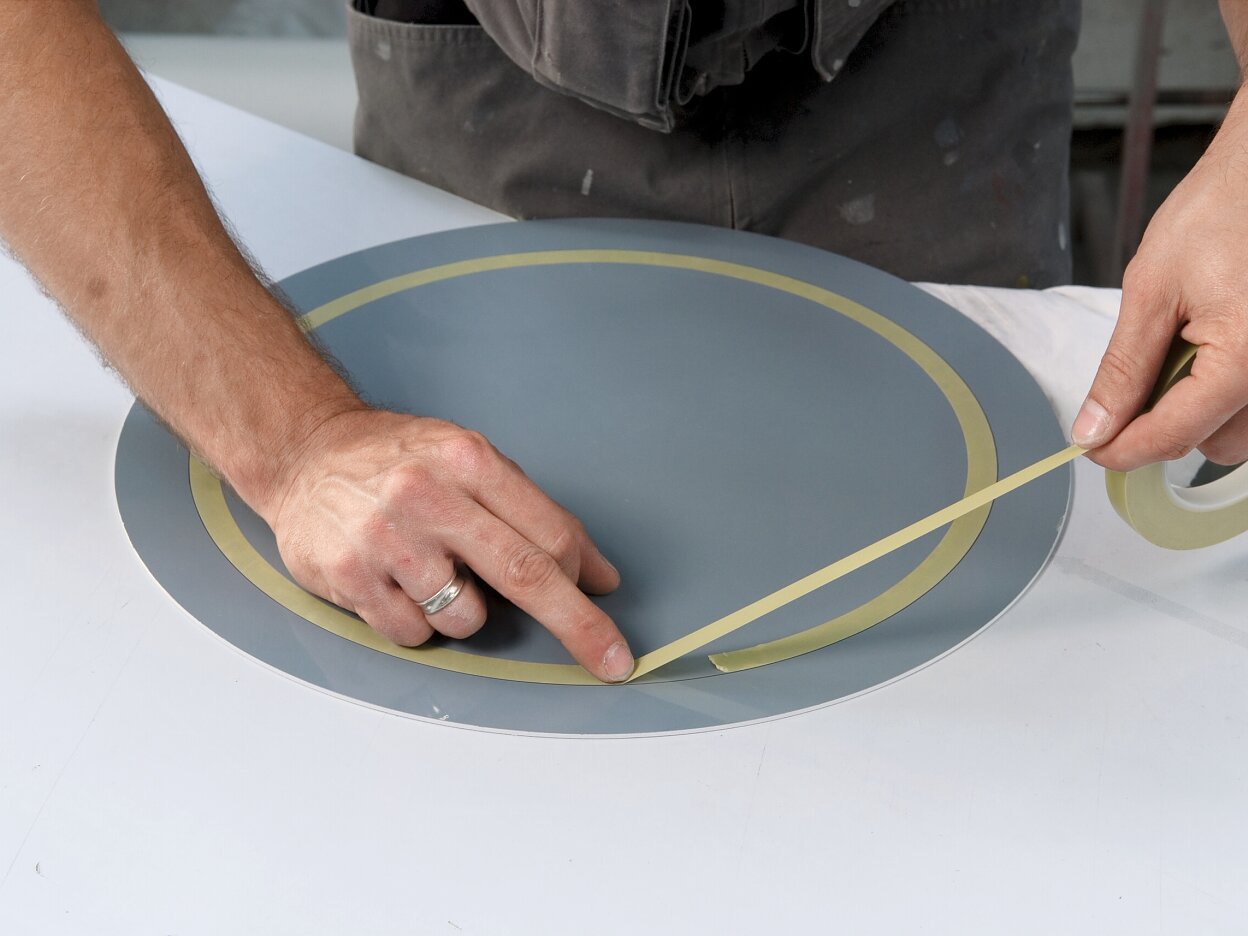

- For masking of plastic parts and fine lines
- For sharp and flat paint edges
- For wide range of fineline applications
Product Construction
| Backing material | PVC film |
|---|---|
| Total thickness | 110 µm |
| Type of adhesive | natural rubber |
Product Construction
| Backing material | PVC film |
|---|---|
| Total thickness | 110 µm |
| Type of adhesive | natural rubber |
Properties / Performance Values
| Elongation at break | 200 % |
|---|---|
| Tensile strength | 25 N/cm |
| Temperature resistance (30 min) | not applicable °C |
| Hand tearability | very good |
| Easy to remove | yes |
| Flame retardance | very good |
| Suitable for die cutting | yes |
Properties / Performance Values
| Elongation at break | 200 % |
|---|---|
| Tensile strength | 25 N/cm |
| Temperature resistance (30 min) | not applicable °C |
| Hand tearability | very good |
| Easy to remove | yes |
| Flame retardance | very good |
| Suitable for die cutting | yes |
Adhesion to Values
| Adhesion to steel | 3.7 N/cm |
|---|
Adhesion to Values
| Adhesion to steel | 3.7 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
