tesa® 61054
250μm d/s black flexible acrylic foam tape
produk fitur
- Thickness: 250 μm
- Very high shock performance
- Very high thermal and cold shock resistance
Product description
tesa® 61054 is a double-sided black tape consisting of a high shock absorbing black acrylic foam.
Detail Produk dan Spesifikasi
produk fitur
- Thickness: 250 μm
- Very high shock performance
- Very high thermal and cold shock resistance
- Very high bonding strength for wide temperature range
- Good anti-repulsion properties to prevent lifting
- Waterproofing
- Light blocking
Application Fields
- Display or touch panel mounting for electronic devices and infotainment systems
- Compensation of mechanical stress (e.g. gap filling and thermal elongation)
- Mounting of waterproof designs

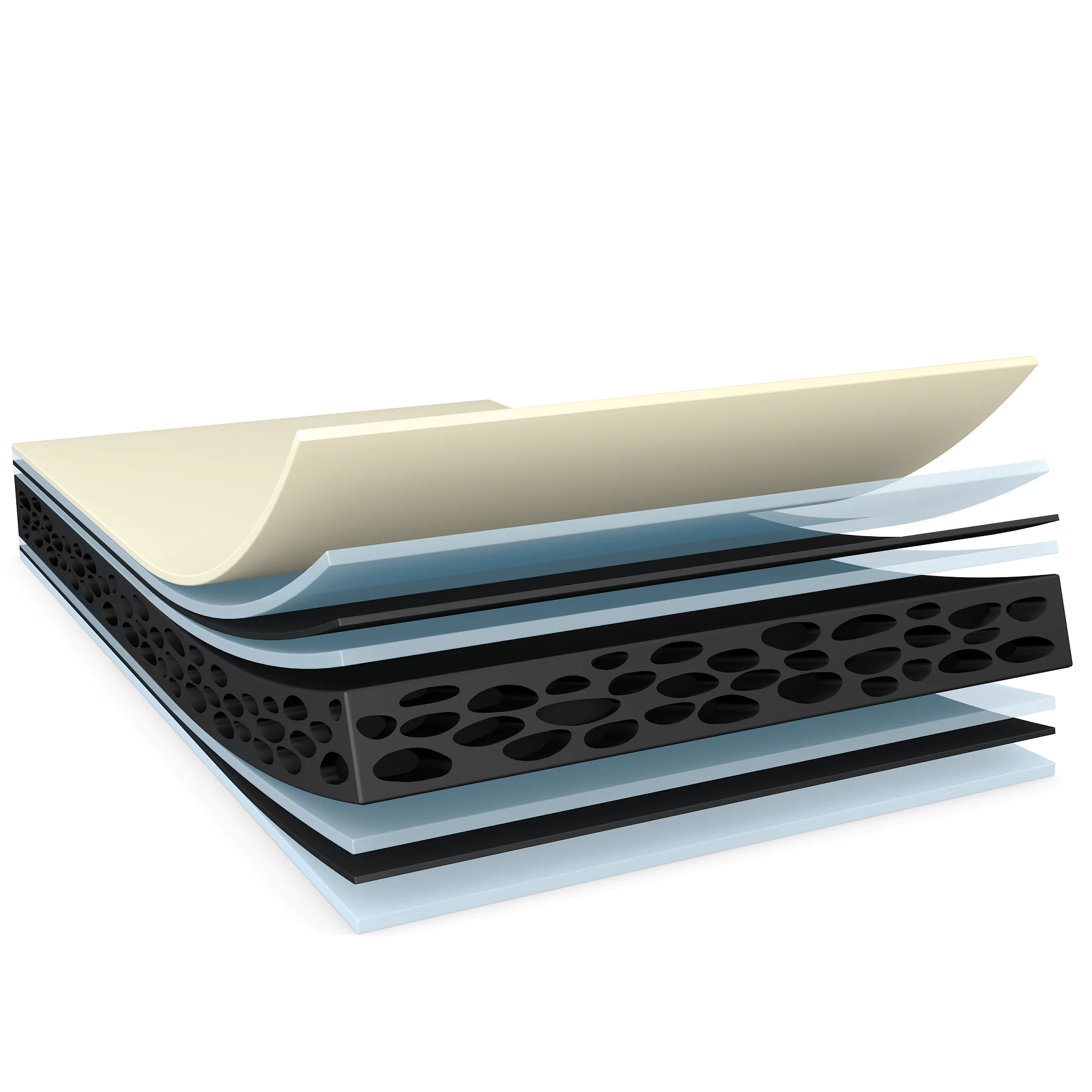

Product Construction
| Bahan penyangga | Acrylic |
|---|---|
| Berat liner | 105 g/m² |
| Jenis Liner | PET |
| Jenis Perekat | modified acrylic |
| Ketebalan liner | 75 µm |
| Ketebalan total | 250 µm |
| Warna | black |
| Warna liner | transparent |
Product Construction
| Bahan penyangga | Acrylic |
|---|---|
| Berat liner | 105 g/m² |
| Jenis Liner | PET |
| Jenis Perekat | modified acrylic |
| Ketebalan liner | 75 µm |
| Ketebalan total | 250 µm |
| Warna | black |
| Warna liner | transparent |
Properties / Performance Values
| Durasi ketahanan suhu jangka panjang | 90 °C |
|---|---|
| Transmitansi (380 - 780 nm) < | 0.001 % |
| Ageing resistance (UV) | very good |
| Durasi ketahanan suhu jangka pendek | 180 °C |
| Ketahanan terhadap geser statis pada suhu 40 ℃ | very good |
Properties / Performance Values
| Durasi ketahanan suhu jangka panjang | 90 °C |
|---|---|
| Transmitansi (380 - 780 nm) < | 0.001 % |
| Ageing resistance (UV) | very good |
| Durasi ketahanan suhu jangka pendek | 180 °C |
| Ketahanan terhadap geser statis pada suhu 40 ℃ | very good |
Adhesion to Values
| Daya rekat ke Aluminium (awal) | 8.5 N/cm |
|---|---|
| Daya rekat ke Aluminium (setelah 3 hari) | 15.5 N/cm |
| Daya rekat ke Kaca (awal) | 17 N/cm |
| Daya rekat ke Kaca (setelah 3 hari) | 18.5 N/cm |
| Daya rekat ke PC (awal) | 14 N/cm |
| Daya rekat ke PC (setelah 3 hari) | 28.7 N/cm |
| Daya rekat ke Baja (awal) | 16 N/cm |
| Daya rekat ke Baja (setelah 3 hari) | 19 N/cm |
Adhesion to Values
| Daya rekat ke Aluminium (awal) | 8.5 N/cm |
|---|---|
| Daya rekat ke Aluminium (setelah 3 hari) | 15.5 N/cm |
| Daya rekat ke Kaca (awal) | 17 N/cm |
| Daya rekat ke Kaca (setelah 3 hari) | 18.5 N/cm |
| Daya rekat ke PC (awal) | 14 N/cm |
| Daya rekat ke PC (setelah 3 hari) | 28.7 N/cm |
| Daya rekat ke Baja (awal) | 16 N/cm |
| Daya rekat ke Baja (setelah 3 hari) | 19 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Unduh file di bawah ini untuk detail teknis dan informasi lebih lanjut tentang produk ini.
