Additional Info
Thermal conductivity measured by ASTM D5470
tesa® 60745
tesa® 60745 100 μm thermal management tape
produk fitur
- Excellent thermal conductivity in z-direction
- Good bonding strength
- Excellent surface wet-out
Product description
tesa® 60745 is a transfer type of white thermal management transfer tape which is designed for excellent thermal conductivity with great mounting on heat source or heat spreading material such as 5G mmWave antenna, heat pipe and other components in electronics devices.
Detail Produk dan Spesifikasi
produk fitur
- Excellent thermal conductivity in z-direction
- Good bonding strength
- Excellent surface wet-out
- Easy handling
- Thin design
- Excellent electrical insulation
Application Fields
- Component mounting wherever heat transfer is needed
- Heat dissipation from MLB / FPC to heat spreader
- Heat pipe mounting
- 5G mmWave antenna mounting

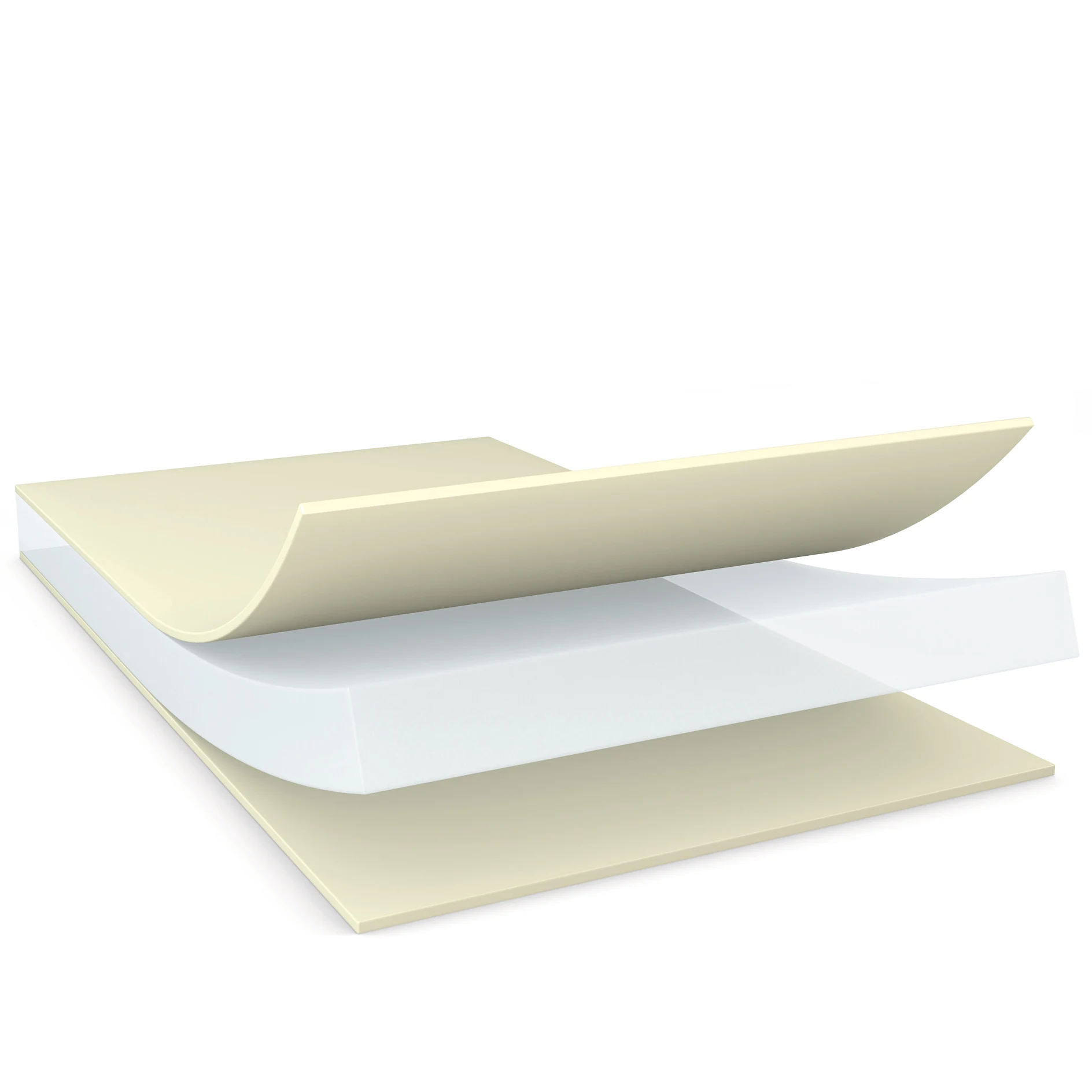

Product Construction
| Bahan penyangga | none |
|---|---|
| Jenis Liner | PET film |
| Jenis Perekat | acrylic |
| Ketebalan total | 100 µm |
| Warna | white |
| Warna liner | transparent |
Product Construction
| Bahan penyangga | none |
|---|---|
| Jenis Liner | PET film |
| Jenis Perekat | acrylic |
| Ketebalan total | 100 µm |
| Warna | white |
| Warna liner | transparent |
Properties / Performance Values
| Konduktivitas termal arah-z | 1 W/mK |
|---|---|
| Pembahasan | 81 % |
| Tegangan rusak | 3.5 KV |
Properties / Performance Values
| Konduktivitas termal arah-z | 1 W/mK |
|---|---|
| Pembahasan | 81 % |
| Tegangan rusak | 3.5 KV |
Adhesion to Values
| Daya rekat ke Baja (awal) | 4.5 N/cm |
|---|
Adhesion to Values
| Daya rekat ke Baja (awal) | 4.5 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Unduh file di bawah ini untuk detail teknis dan informasi lebih lanjut tentang produk ini.
