tesa® 60332
tesa® 60332 20 μm single sided matte black single sided electrically conductive copper tape
produk fitur
- Excellent matte black appearance
- Excellent electrical conductivity in XYZ-direction
- Excellent EMI shielding performance
Product description
tesa® 60332 is matte black single sided electrically conductive copper tape. It consists of electrically conductive matte black copper backing and single sided conductive adhesive coating layer. Designed for EMI shielding for display, FPC, MLB and other components applications.
Detail Produk dan Spesifikasi
produk fitur
- Excellent matte black appearance
- Excellent electrical conductivity in XYZ-direction
- Excellent EMI shielding performance
- Good bonding strength
- Good heat spreading performance with copper backing
Application Fields
- Display covering and shielding
- MLB shielding
- FPC shielding
- Matte black shielding and covering on component

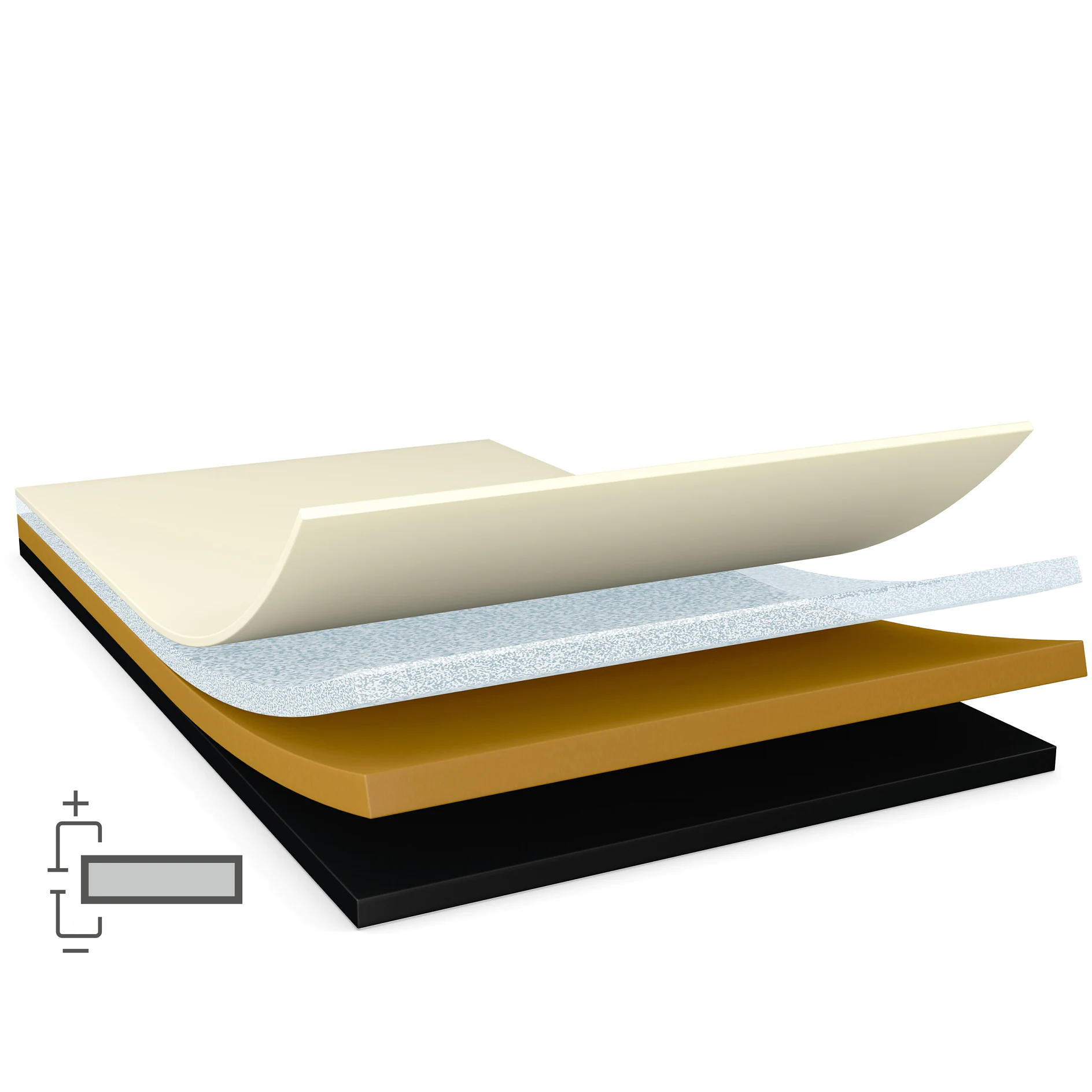

Product Construction
| Bahan penyangga | black-coated copper |
|---|---|
| Jenis Liner | PET film |
| Jenis Perekat | conductive acrylic |
| Ketebalan liner | 100 µm |
| Ketebalan total | 20 µm |
| Warna | matte black |
| Warna liner | translucent |
Product Construction
| Bahan penyangga | black-coated copper |
|---|---|
| Jenis Liner | PET film |
| Jenis Perekat | conductive acrylic |
| Ketebalan liner | 100 µm |
| Ketebalan total | 20 µm |
| Warna | matte black |
| Warna liner | translucent |
Properties / Performance Values
| Ketahanan permukaan arah x-y (perekat) | 0.1 Ohm / square |
|---|---|
| Ketahanan permukaan arah x-y (sisi penyangga) | 0.1 Ohm / square |
| Ketahanan kontak arah-z (awal) | 0.05 Ohm / square inch |
| Tingkat gloss (60°) | 1.1 GU |
Properties / Performance Values
| Ketahanan permukaan arah x-y (perekat) | 0.1 Ohm / square |
|---|---|
| Ketahanan permukaan arah x-y (sisi penyangga) | 0.1 Ohm / square |
| Ketahanan kontak arah-z (awal) | 0.05 Ohm / square inch |
| Tingkat gloss (60°) | 1.1 GU |
Adhesion to Values
| Daya rekat ke Baja (awal) | 4 N/cm |
|---|
Adhesion to Values
| Daya rekat ke Baja (awal) | 4 N/cm |
|---|
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
