Product Construction
| Backing material | PVC film |
| Total thickness | 104 µm |
| Type of adhesive | type: acrylic |

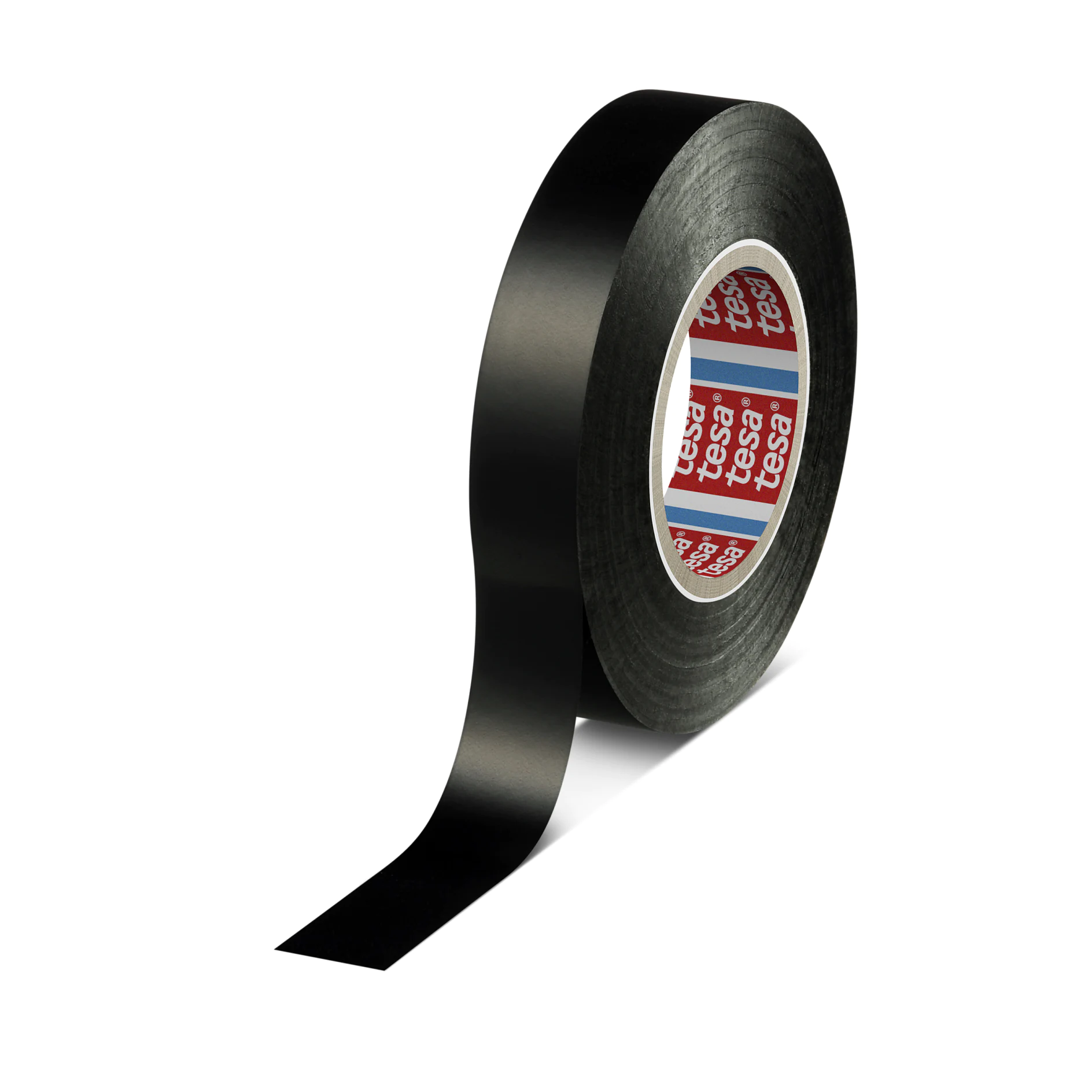

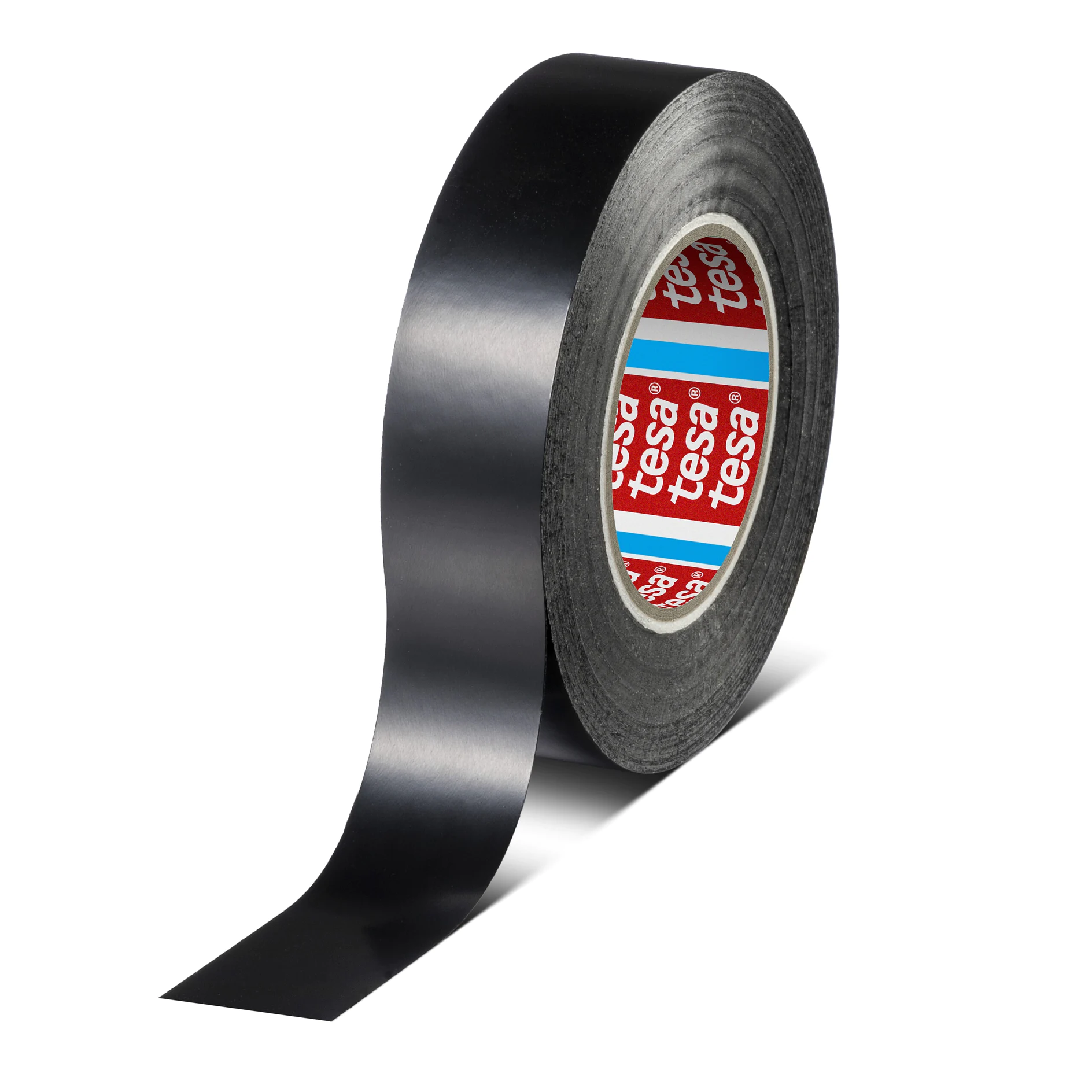

tesa® 4182 PV2
Soft PVC wire harness tape for high temperature areas (105°C)
Product description
tesa 4182 PV2 is a plasticised PVC tape optimised for wire harness bundling areas where the temperature may reach 105°C. Its solid film backing allows for open as well as over-lapped wrapping styles. Its water based acrylic adhesive supports low outgassing of volatile organic compounds.
- cadmium and lead free
- solvent-free
- compatible with PVC-free wire insulation
- flexible
- ozone resistant
- abrasion resistant
- resistant to ageing and weathering
- unwinds evenly
Product details and specifications
Application Fields
Wire Harnessing
Product Construction
| Backing material | PVC film |
| Total thickness | 104 µm |
| Type of adhesive | type: acrylic |
Properties / Performance Values
| Elongation at break | 250 % |
| Tensile strength | 25 N/cm |
| Noise damping (LV312) | Class A |
| Unwind force (roll width ≤ 9mm) | 7.5 N/roll (30 m/min) |
| Temperature resistance min. | -25 °C |
| Temperature resistance max. | 105 °C |
| Unwind force (roll width > 9mm) | 7.5 N/roll (30 m/min) |
Properties / Performance Values
| Elongation at break | 250 % |
| Tensile strength | 25 N/cm |
| Noise damping (LV312) | Class A |
| Unwind force (roll width ≤ 9mm) | 7.5 N/roll (30 m/min) |
| Temperature resistance min. | -25 °C |
| Temperature resistance max. | 105 °C |
| Unwind force (roll width > 9mm) | 7.5 N/roll (30 m/min) |
Adhesion to Values
| Adhesion to steel | 1.8 N/cm |
Adhesion to Values
| Adhesion to steel | 1.8 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
