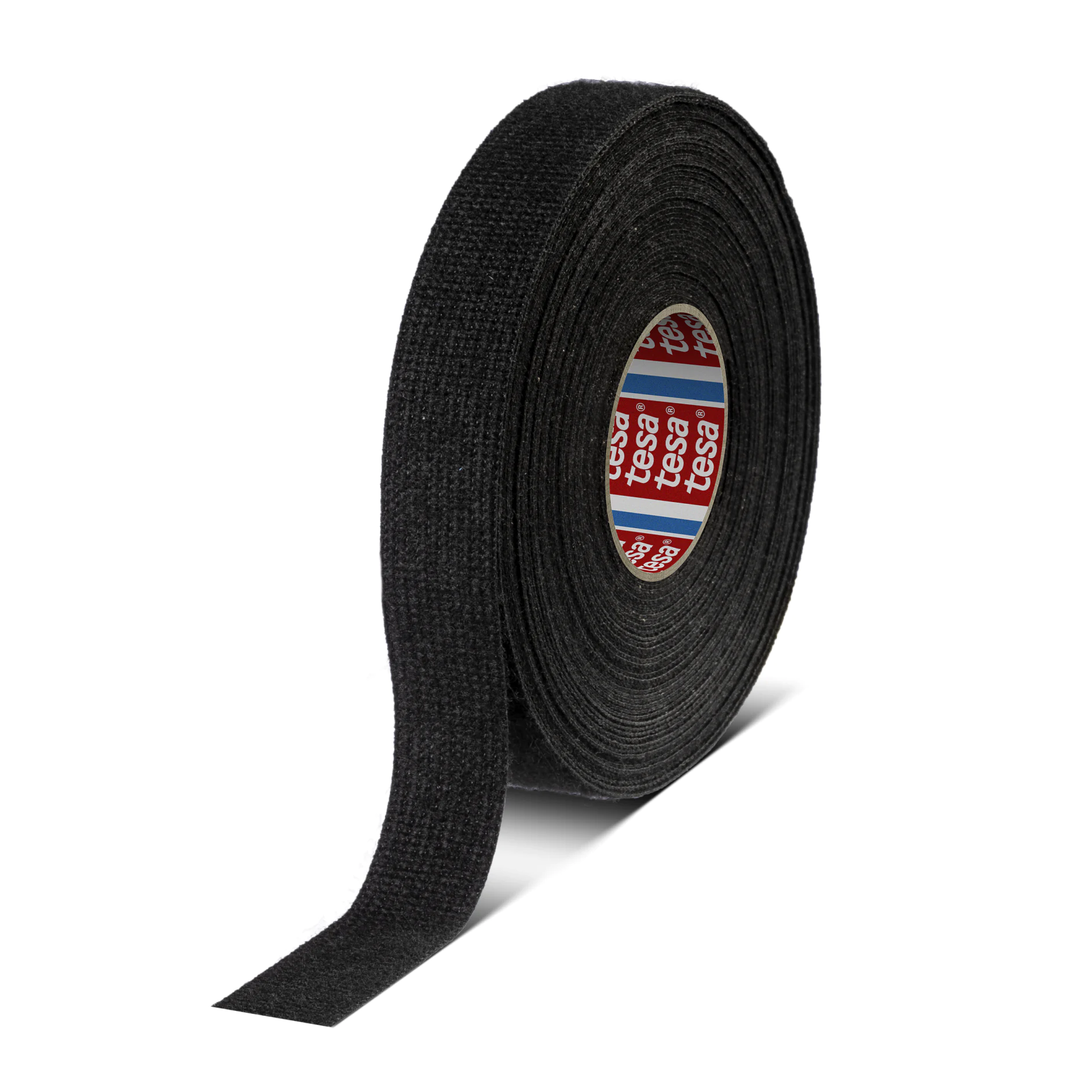

tesa® 51616

Thick PET- fleece wire harness tape for high noise reduction

Product description

tesa® 51616 is the cost efficient solution providing excellent noise reduction and a high abrasion resistance. It is for manual application on wire harnesses.

Features:

  • hand tearable
  • very high sound damping
  • temperature resistance 125°C/3000h
  • resistant to ageing
  • rot-proof
  • strong adhesion
  • flexible and smooth

Product details and specifications

Application Fields

tesa® 51616 is a wire harnessing tape designed for the passenger compartment, providing high noise damping.
Backing material PET fleece
Total thickness 650 µm
Type of adhesive rubber based
Elongation at break 50 %
Tensile strength 30 N/cm
Unwind force (roll width ≤ 9mm) 12 N/roll (30 m/min)
Noise damping (LV312) Class D
Abrasion resistance (10mm mandrel, LV312) Class D
Temperature resistance min. -40 °C
Unwind force (roll width > 9mm) 12 N/roll (30 m/min)
Abrasion resistance (5mm mandrel, LV312) Class C
Temperature resistance max. 105 °C
Adhesion to steel 3 N/cm
Standard widths: 9, 19, 25, 32 mm
Standard lengths: 7.5 m
  • Most combinations of width and length are possible
  • Further dimensions are available upon request

  • Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads

Download the files below for more technical details and information on this product.

Product information_tesa® 51616_en-MA_fr-MA 60.2 kB
