tesa® 50565

Strong 50µm aluminium tape with and without liner (PV1 and PV0)

Product description

tesa® 50565 is a strong aluminium tape, based on a 50µm aluminium foil and an acrylic adhesive.
tesa® 50565 is mainly used in the appliance industry but also for a wide range of other applications.

Features:

good adhesion
mechanical resistance
moisture resistant
vapour tight
high thermal conductivity
oil & acid resistant
ageing resistant

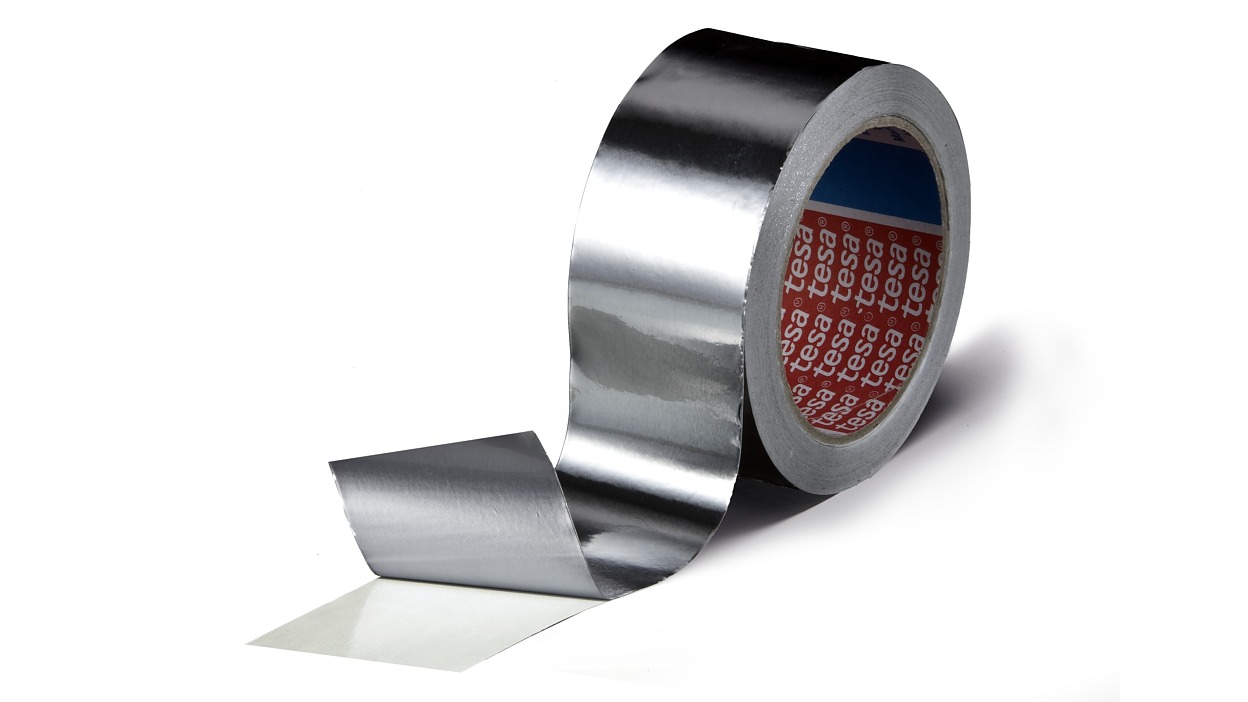

available without liner (PV0) and with liner (PV1)
flame retardant (UL510)

Product details and specifications

Application Fields

Mounting of refrigeration coils
General purpose temperature insulation
Sealing of ducts
Masking, protecting, repairing, closing .

Backing material	aluminium foil
Colour of liner	white
Thickness of liner	65 µm
Total thickness	90 µm
Type of adhesive	acrylic
Type of liner	paper

Elongation at break	8 %
Tensile strength	35 N/cm
Suitable for die cutting	yes
Hand tearability	good
Abrasion resistance	good
Backing appearance (visual)	reflective
Water resistance	very good
Operation temperature from	-40 °C
Operation temperature up to	160 °C
Temperature resistance min.	-40 °C

Adhesion to steel	6 N/cm

Certificates

UL 510

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.

Downloads

Download the files below for more technical details and information on this product.

50565 UL Certificate of Compliance 345.3 kB Product information_tesa® 50565_en-MA_fr-MA 65.8 kB

Contact us

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.

Name of product	tesa® 50565	tesa® 60672	tesa® 60654	tesa® 60632	tesa® 60652	tesa® 60644	tesa® 60630	tesa® 50575	tesa® 60650	tesa® 50525 PV1	tesa® 60670
Total thickness	90 µm	125 µm	90 µm	65 µm	90 µm	70	65 µm	120 µm	90 µm	60 µm	125 µm
Type of adhesive	acrylic	acrylic	modified acrylic	acrylic	acrylic	modified acrylic	acrylic	acrylic	acrylic	acrylic	acrylic
Backing material	aluminium foil	aluminium foil	Al-PET barrier laminate	aluminium foil	aluminium foil	Al-PET barrier laminate	aluminium foil	aluminium foil	aluminium foil	aluminium foil	aluminium foil
Adhesion to steel	6 N/cm	10 N/cm	10 N/cm	8 N/cm	9 N/cm	7.2 N/cm	8 N/cm	4 N/cm	9 N/cm	5 N/cm	10 N/cm
Tensile strength	35 N/cm	60 N/cm	60 N/cm	25 N/cm	40 N/cm	40	25 N/cm	65 N/cm	40 N/cm	23 N/cm	60 N/cm
Elongation at break	8 %	8 %	13 %	3 %	6 %	10 %	3 %	5 %	6 %	5 %	8 %
