Liner variants:
PV0 brown glassine paper (71 µm)
PV4 white PE-coated paper (122 µm)
PV6 red MOPP-film (80 µm)
PV0 brown glassine paper (71 µm)
PV4 white PE-coated paper (122 µm)
PV6 red MOPP-film (80 µm)

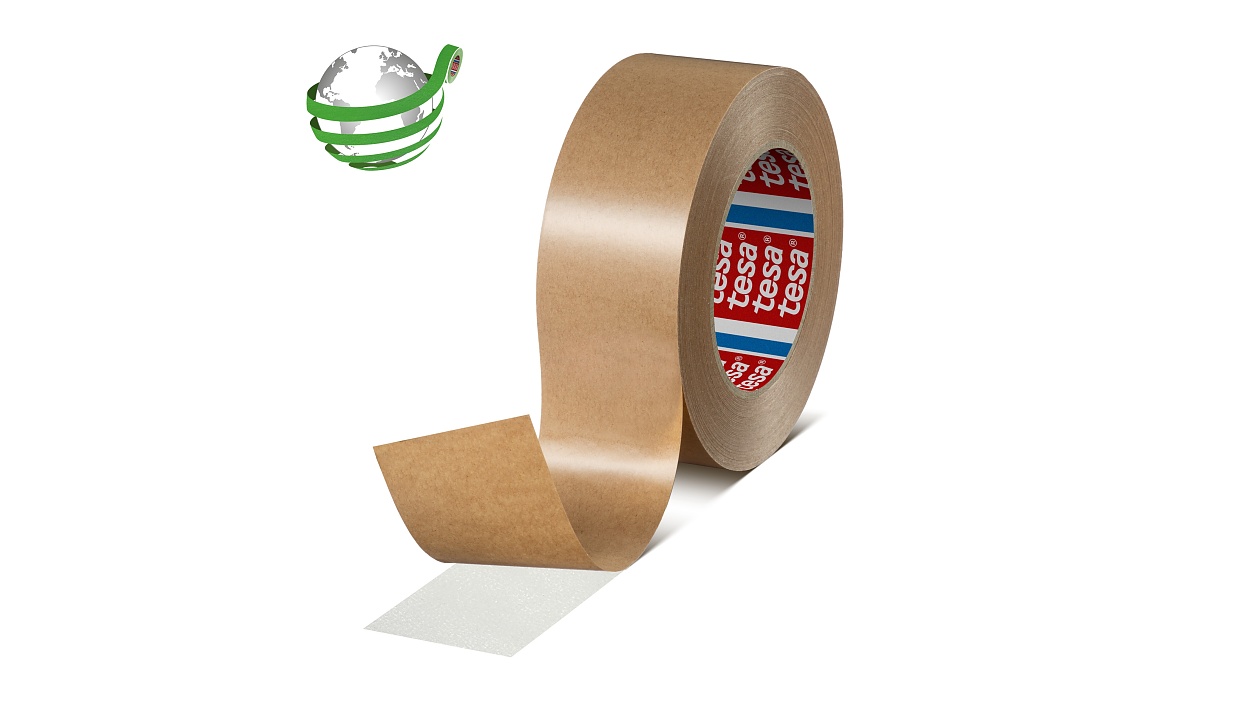

tesa® 4962
Premium double-sided non-woven tape
Product description
tesa® 4962 is a double-sided tape consisting of a non-woven backing and a tackified acrylic adhesive.
tesa® 4962 features:
- High adhesion values on different substrates
- Excellent wetting (grabbing) power to rough surfaces
- Excellent temperature resistance
Product details and specifications
Application Fields
Mounting of plastic and foam parts, heavy papers, textile and leather
For more information click here.
Product Construction
| Backing material | non-woven |
|---|---|
| Colour | translucent |
| Colour of liner | brown |
| Thickness of liner | 69 µm |
| Total thickness | 160 µm |
| Type of adhesive | tackified acrylic |
| Type of liner | paper |
| Weight of liner | 80 g/m² |
Properties / Performance Values
| Elongation at break | 3 % |
|---|---|
| Tensile strength | 8 N/cm |
| Ageing resistance (UV) | very good |
| Tack | very good |
| Temperature resistance short term duration | 200 °C |
| Static shear resistance at 23°C | good |
| Temperature resistance min. | -40 °C |
| Fogging | good |
| Humidity resistance | very good |
| Chemical resistance | good |
| Static shear resistance at 40°C | medium |
| Temperature resistance long term duration | 80 °C |
Adhesion to Values
| Adhesion to ABS (initial) | 11 N/cm |
|---|---|
| Adhesion to ABS (after 14 days) | 12 N/cm |
| Adhesion to Aluminium (initial) | 10 N/cm |
| Adhesion to Aluminium (after 14 days) | 10.5 N/cm |
| Adhesion to PC (initial) | 13 N/cm |
| Adhesion to PC (after 14 days) | 14 N/cm |
| Adhesion to PC (covered side, after 14 days) | 14 N/cm |
| Adhesion to PE (initial) | 6.5 N/cm |
| Adhesion to PE (after 14 days) | 7 N/cm |
| Adhesion to PET (initial) | 9.5 N/cm |
| Adhesion to PET (after 14 days) | 10.5 N/cm |
| Adhesion to PP (initial) | 8.5 N/cm |
| Adhesion to PP (after 14 days) | 10 N/cm |
| Adhesion to PS (initial) | 12 N/cm |
| Adhesion to PS (after 14 days) | 13 N/cm |
| Adhesion to PVC (initial) | 11 N/cm |
| Adhesion to PVC (after 14 days) | 15 N/cm |
| Adhesion to Steel (initial) | 11.5 N/cm |
| Adhesion to Steel (after 14 days) | 12 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
