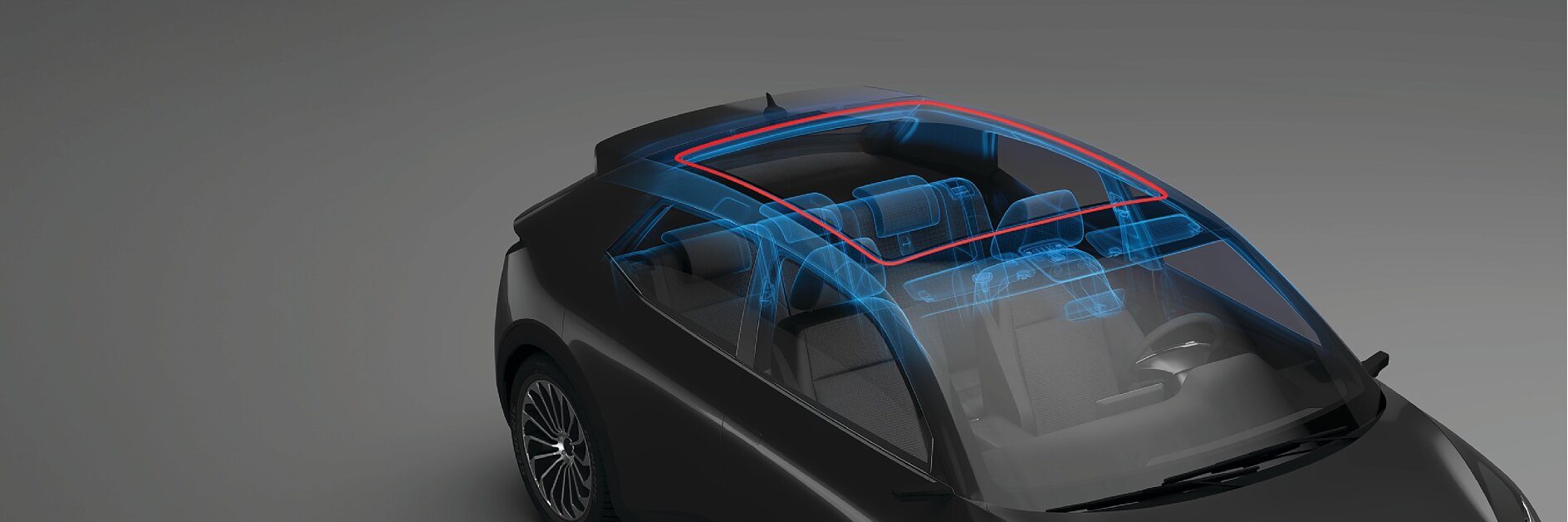

A car with a transparent overlay showing the interior seating and structure, highlighting the sunroof area in red, featuring tesa tape.

Sunroof seals.
Bond with confidence.

Performance is everything when you supply sunroofs. Our adhesive solutions for sunroof seal mounting excel under stress and stand the test of time. The high performance of tesa® ACXplus Seal Line, combined with our technical support that can tailor adhesive tapes for your needs, provides a bonding solution you can have confidence in.

Performance tests

See how tesa® 74508 performs in dynamic shear and floating roller peel tests.

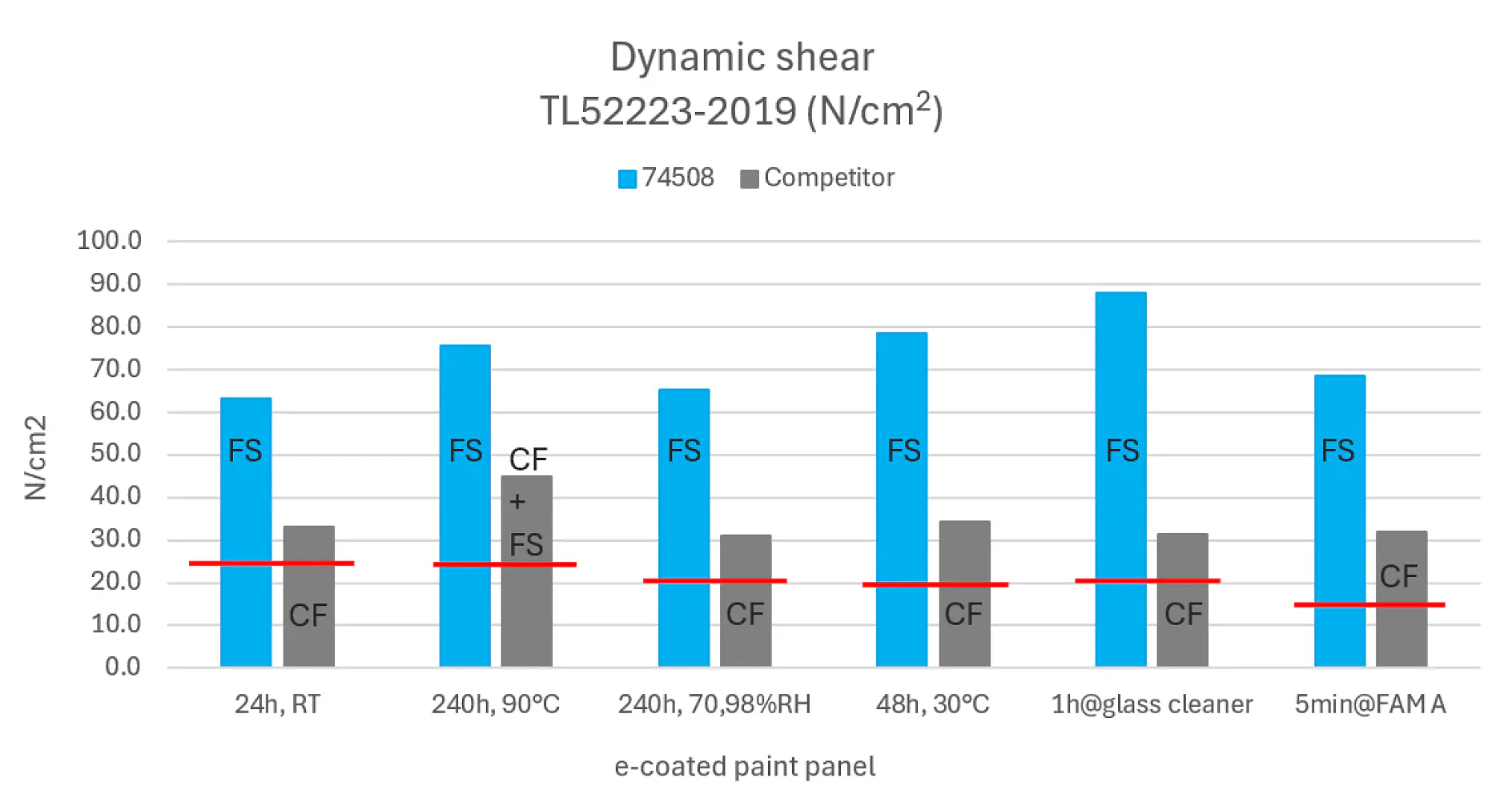

Bar chart comparing dynamic shear (N/cm²) of TL52223-2019 vs. tesa tape on e-coated panels; TL52223-2019 scores higher.

tesa®  745xx shows high shear resistance because of the strong acrylic foam core, reaching dynamic shear values above the required standard for TL 52223-2019.

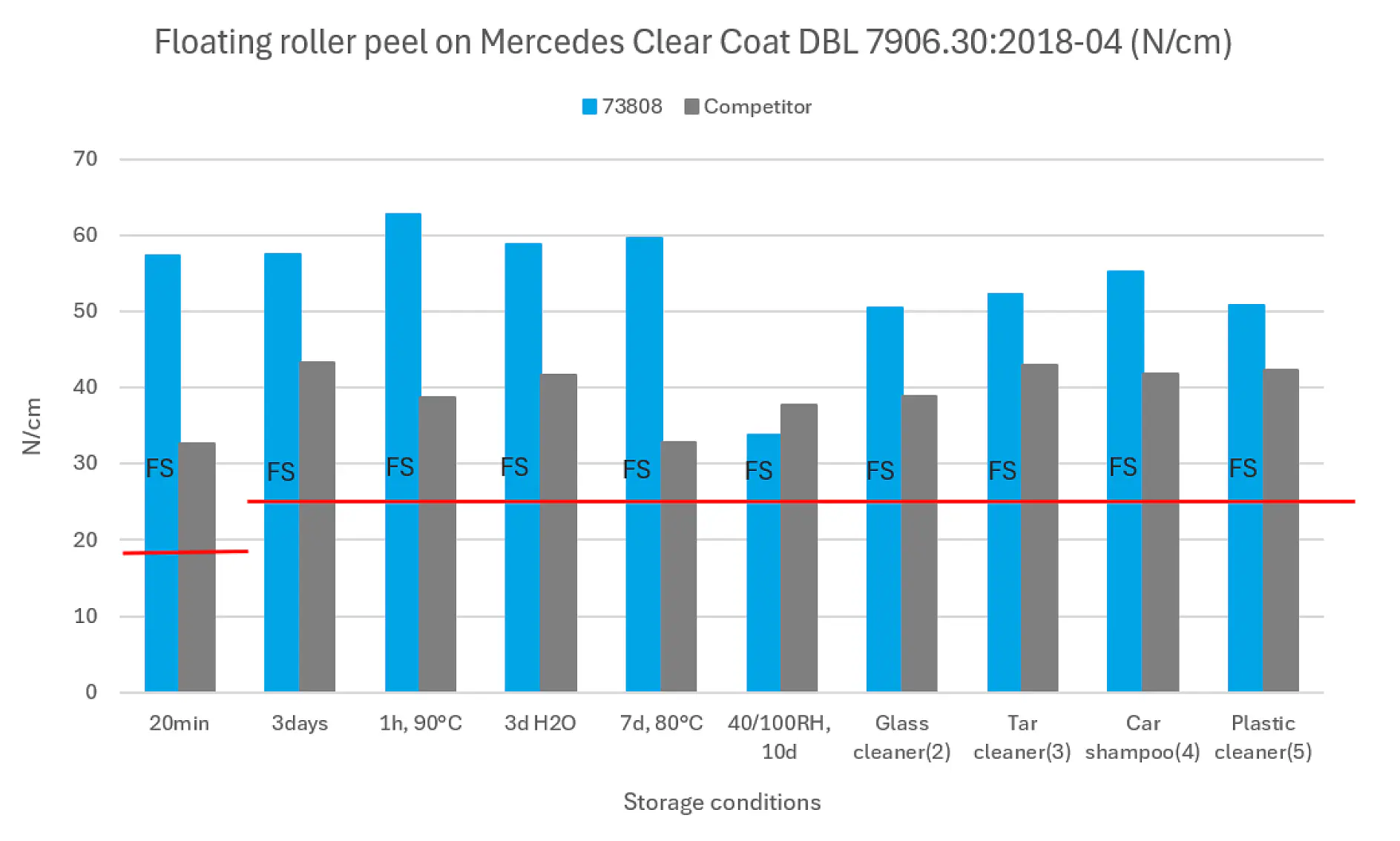

Bar chart comparing floating roller peel strength of tesa tape 73808 and competitor on Mercedes Clear Coat under various conditions; tesa tape 73808 consistently shows higher values.

tesa®  738xx shows immediate foam split with high bonding strength (up to 60 N/cm) as well as after ageing. Foam split or cohesion failure mode shows that the anchorage of the tape to both substrates is very reliable.

Providing responsive support to drive business growth

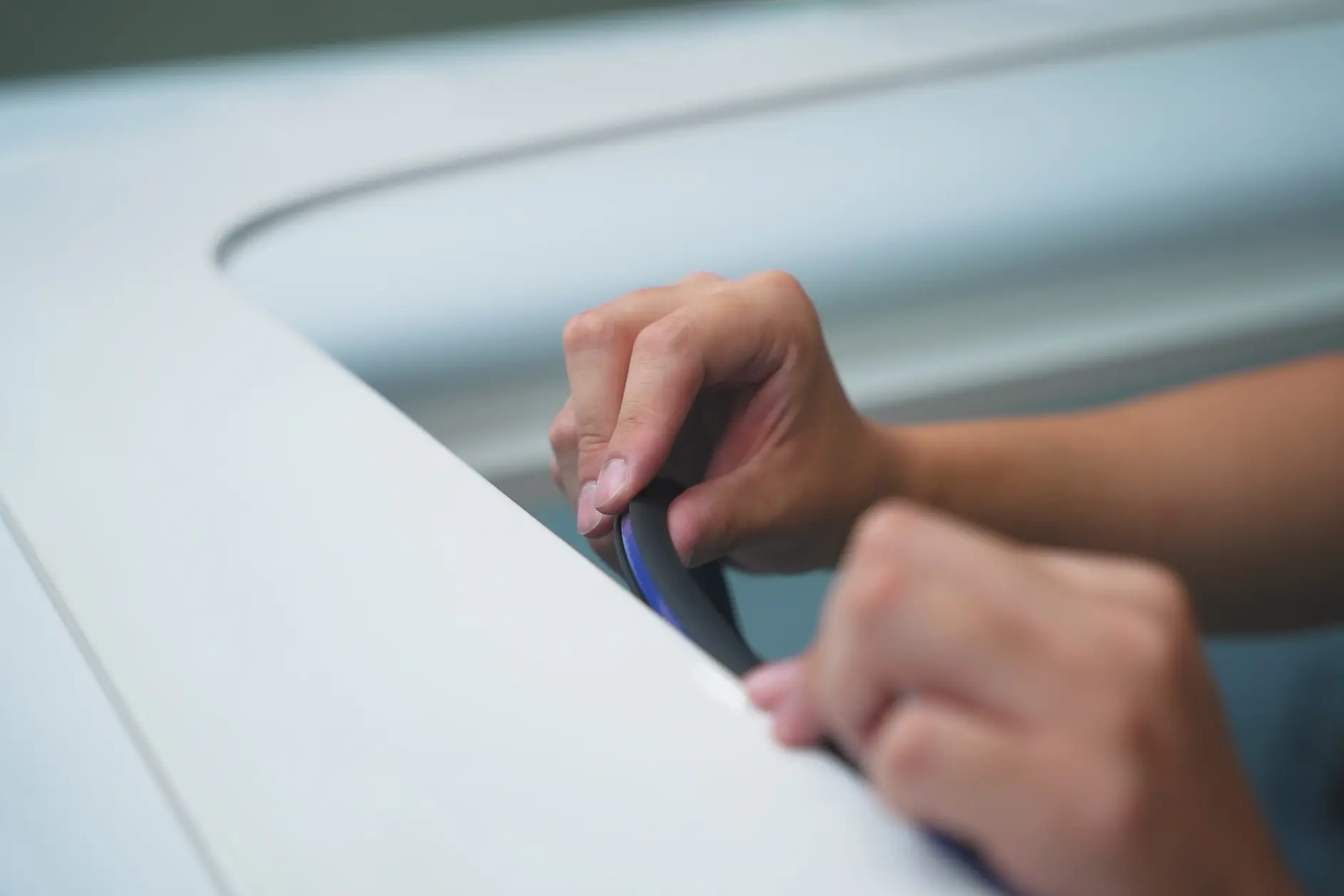

Close-up of two hands installing or adjusting a black rubber seal with tesa tape along the edge of a white surface, possibly a car.

A sunroof seal manufacturer, enjoying success in its home market, was looking to expand into new territories.

This meant it needed to find suppliers that could help it meet material approvals for new OEMs. Looking for a high-performance adhesive partner, they asked tesa, because they knew that as well as offering a proven product, we offer on-site support through our 11 customer solution centers globally.

We were able to help the sunroof seal manufacturer meet the high specification standards of a European OEM, and prove it in testing, at each stage of the value chain. We tailored our product design as necessary, ultimately to get the sunroof seal and our tape into production. This level of support is available to all of tesa’s customers, including you.

Enduring quality & performance

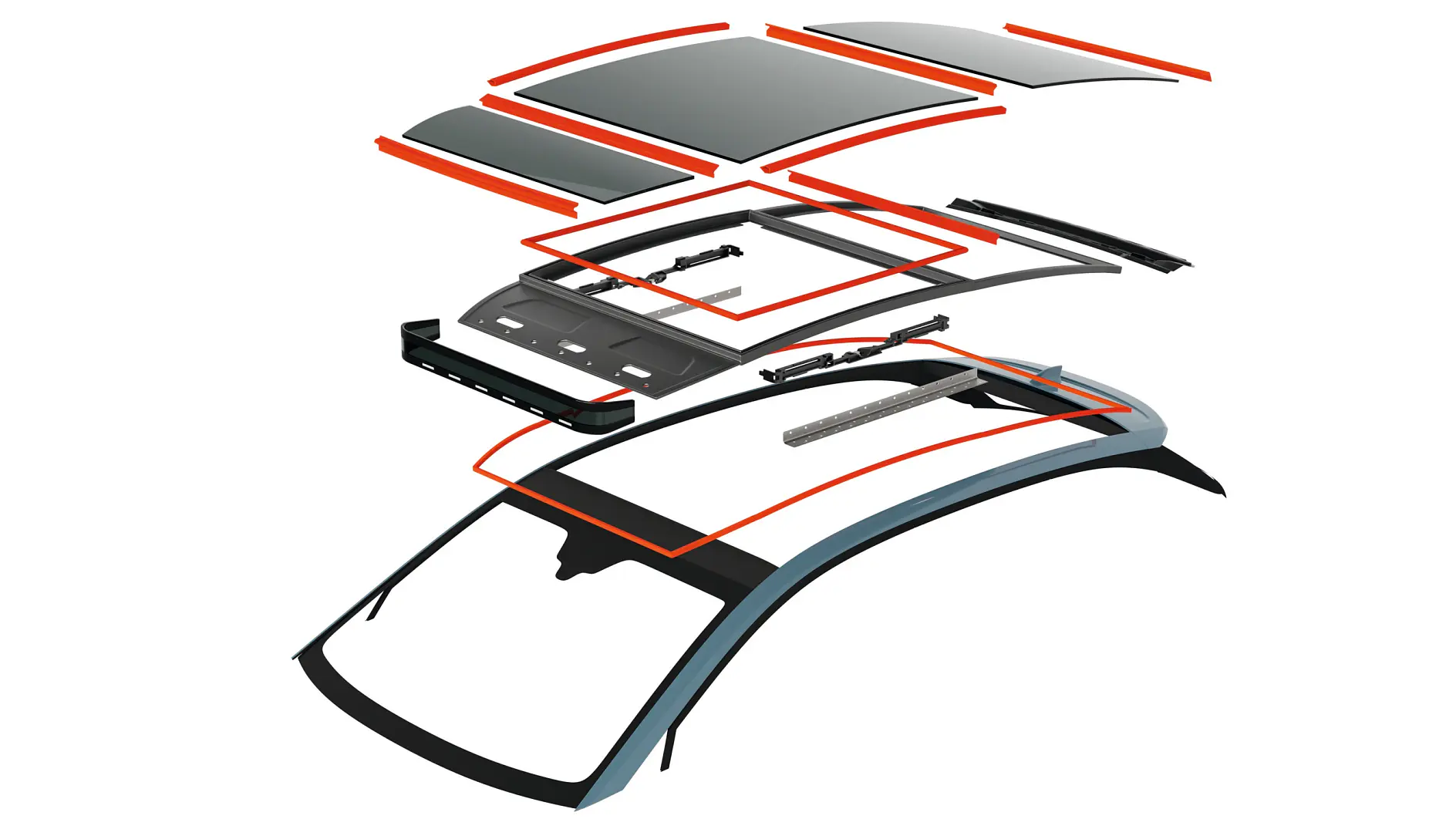

An exploded view diagram of a car’s roof assembly with tesa tape securing glass panels, support structures, and mechanical parts.

For reliable performance, we never compromise on quality: tesa® ACXplus Seal Line tapes are compatible with multiple substrates, including

  • inked glass,
  • e-coating,
  • and UV powder



They’re resistant to temperature variations, humidity, and UV, and they maintain a reliable bond within a temperature range of -40 °C to 90 °C.

Downloads

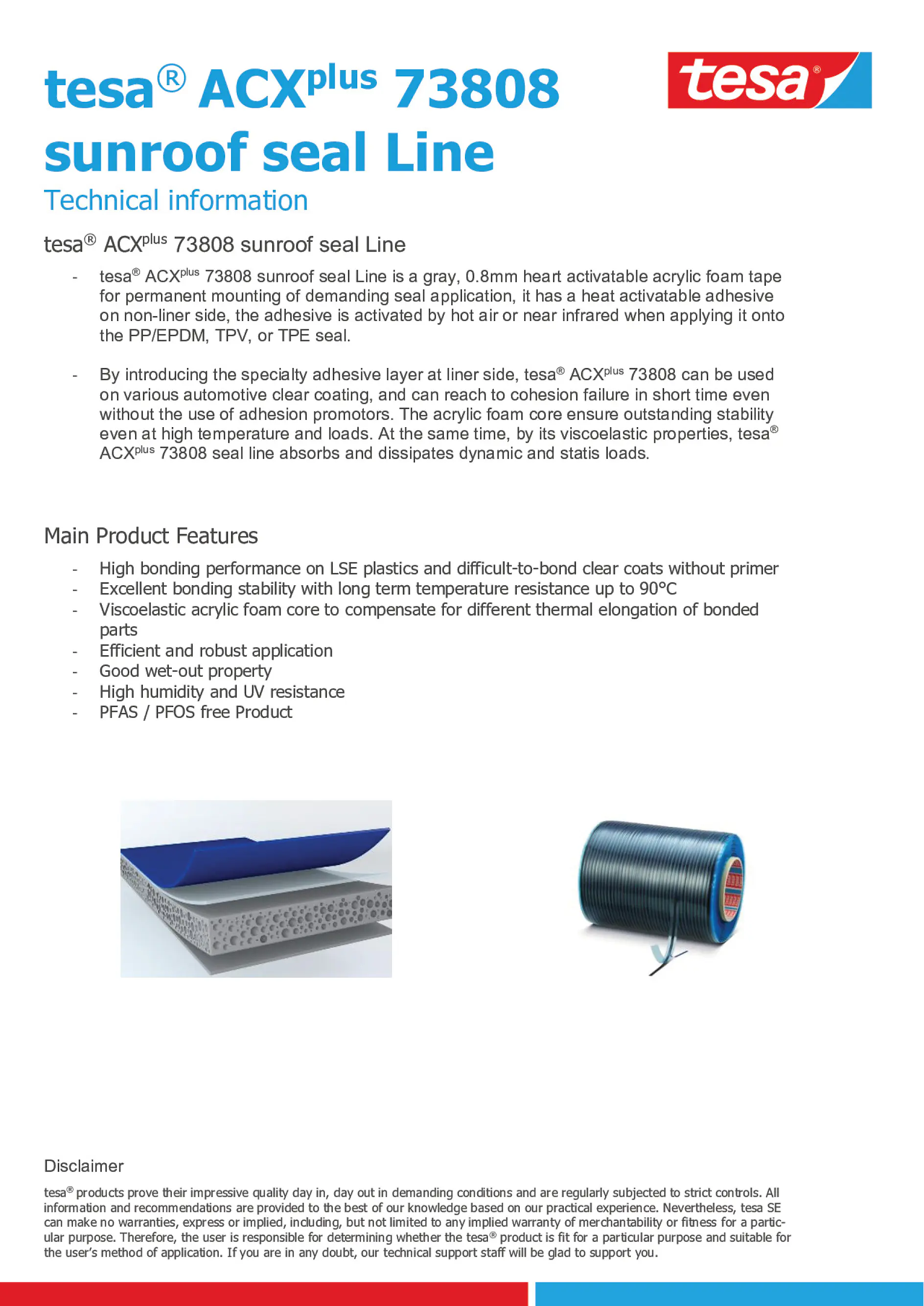

Sunroof seal TI sheet
TI 73808 Sunroof seal TI sheet PDF 202.5 kB
A woman in a light shirt and headset sits at a desk indoors, smiling and chatting, with a roll of tesa tape visible beside her. (This text has been generated by AI)

Contact us

Have a question or need support? Fill out the form below and we’ll get back to you shortly. We’re here to help.

Thank you for your message.

We will contact you as soon as possible.

Something went wrong. Please try again later.
Side view of a black and silver car with a transparent blue overlay highlighting the front door area, showing the door’s dimensions and internal structure. Areas where tesa tape is used are indicated. The background is plain gray. (This text has been generated by AI)
Read more

Door seals

Withstanding 100,000+ slams in door seal testing, tesa® ACXplus Seal Line 74712 provides an ideal adhesive solution for the seal application that’s in constant use. See the performance details, such as achievement of TL52223, view a comparison chart, and hear from our experts.

Read more

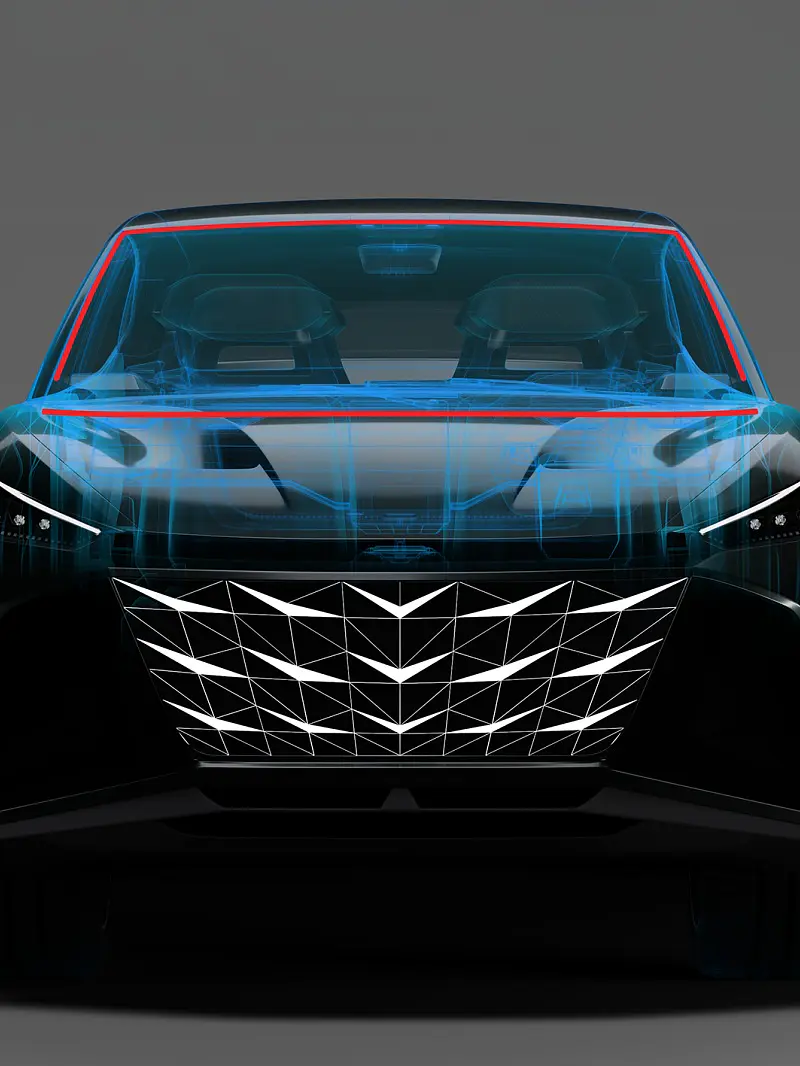

Front view of a digitally rendered car with transparent blue sections showing tesa tape, interior seats, and engine components. (This text has been generated by AI)
