Product Construction
Backing material | PET fleece |
Color | สีดำ/สีขาว |
Color of liner | สีเหลือง |
Thickness of liner | 75 µm |
Thickness of tape | 540 µm |
Type of adhesive | type: acrylic |
Type of liner | type: glassine |
Weight of liner | 90 g/m² |

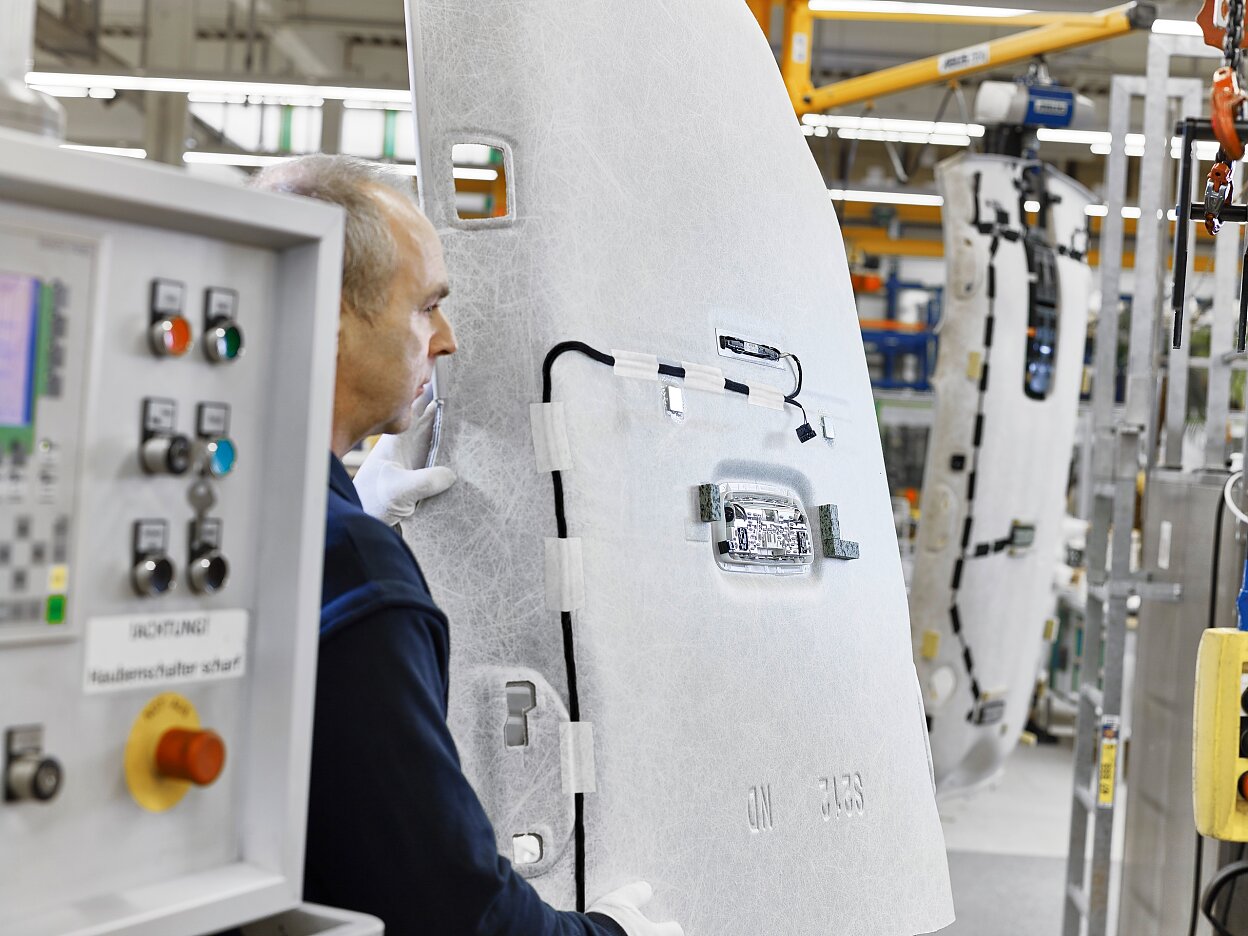

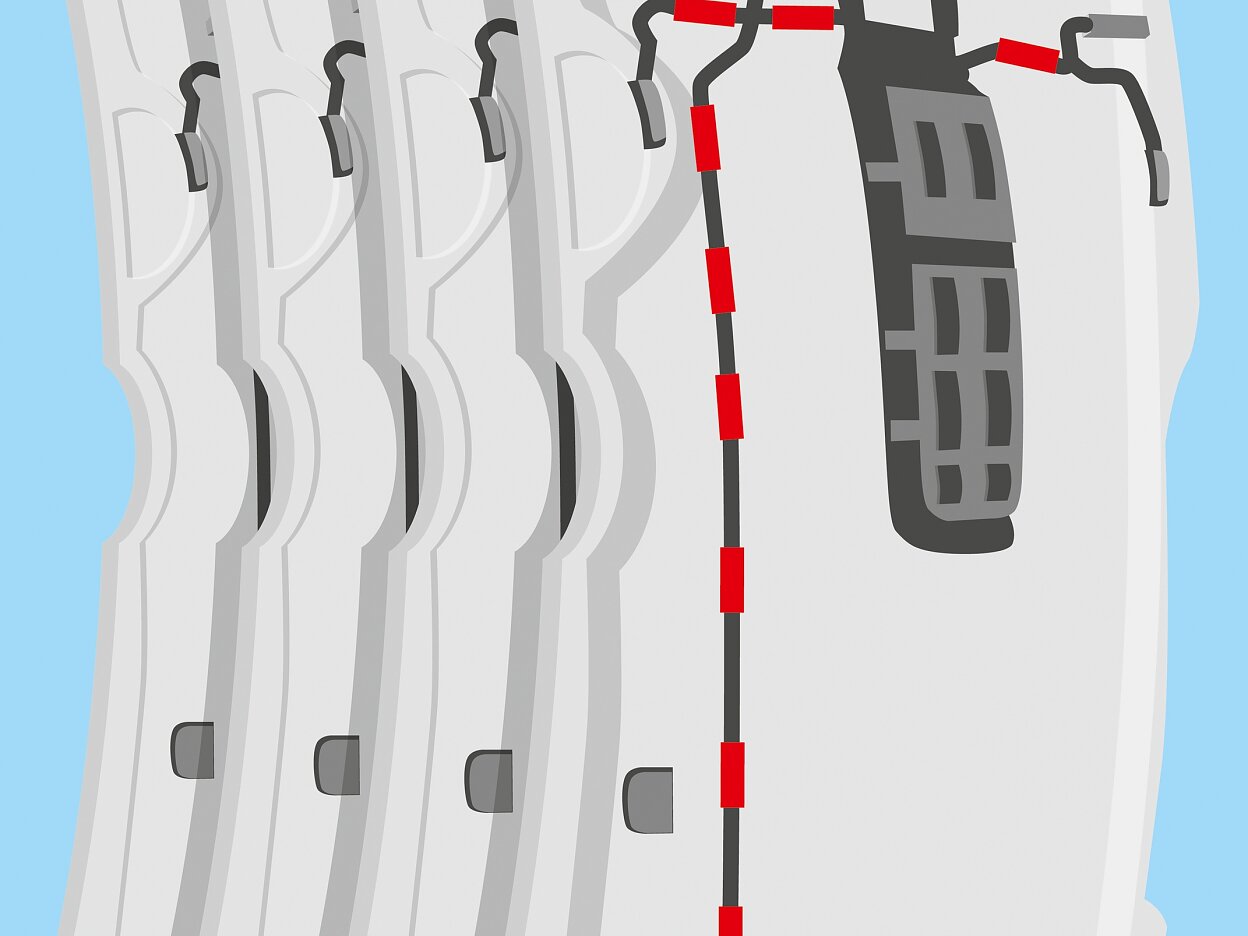

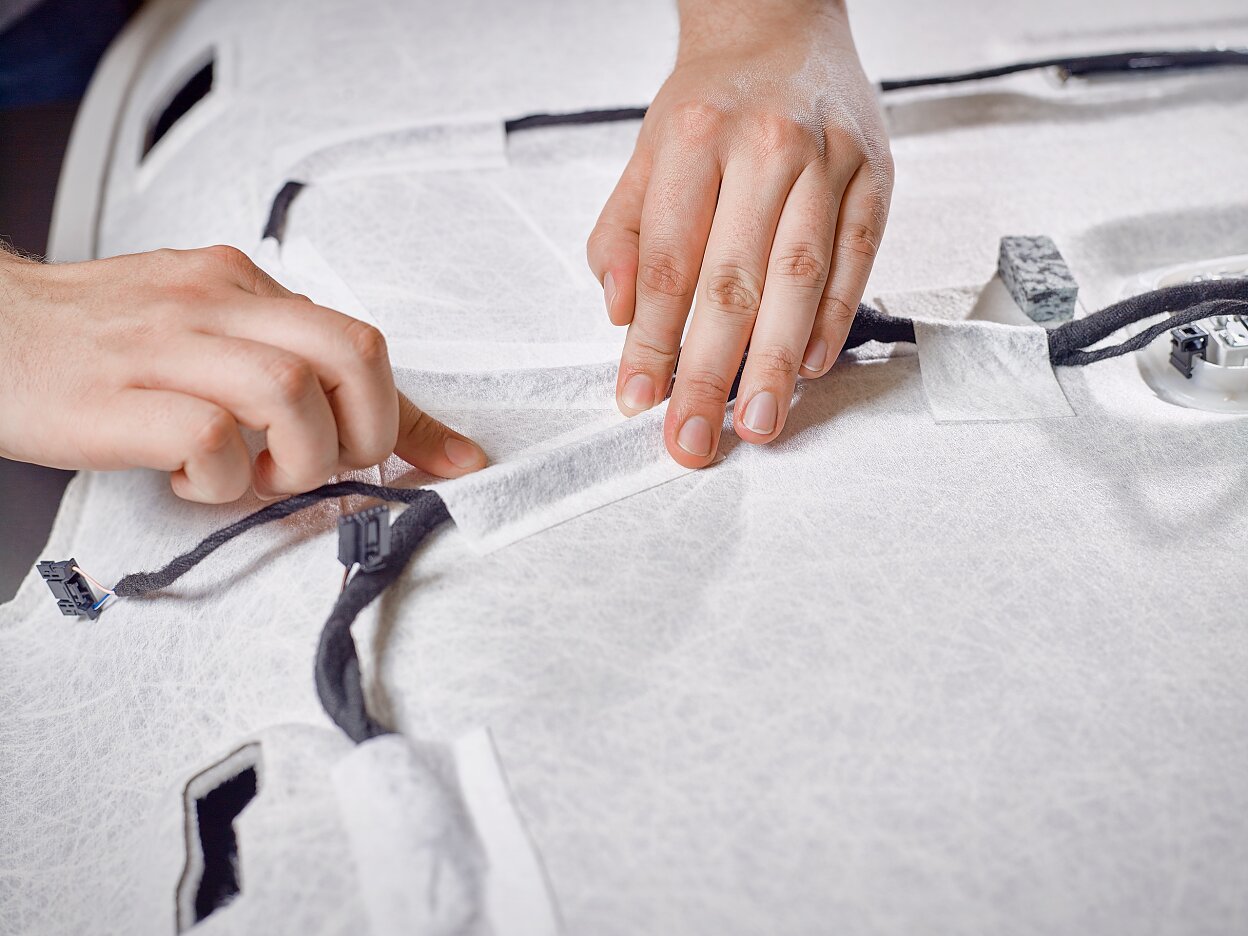

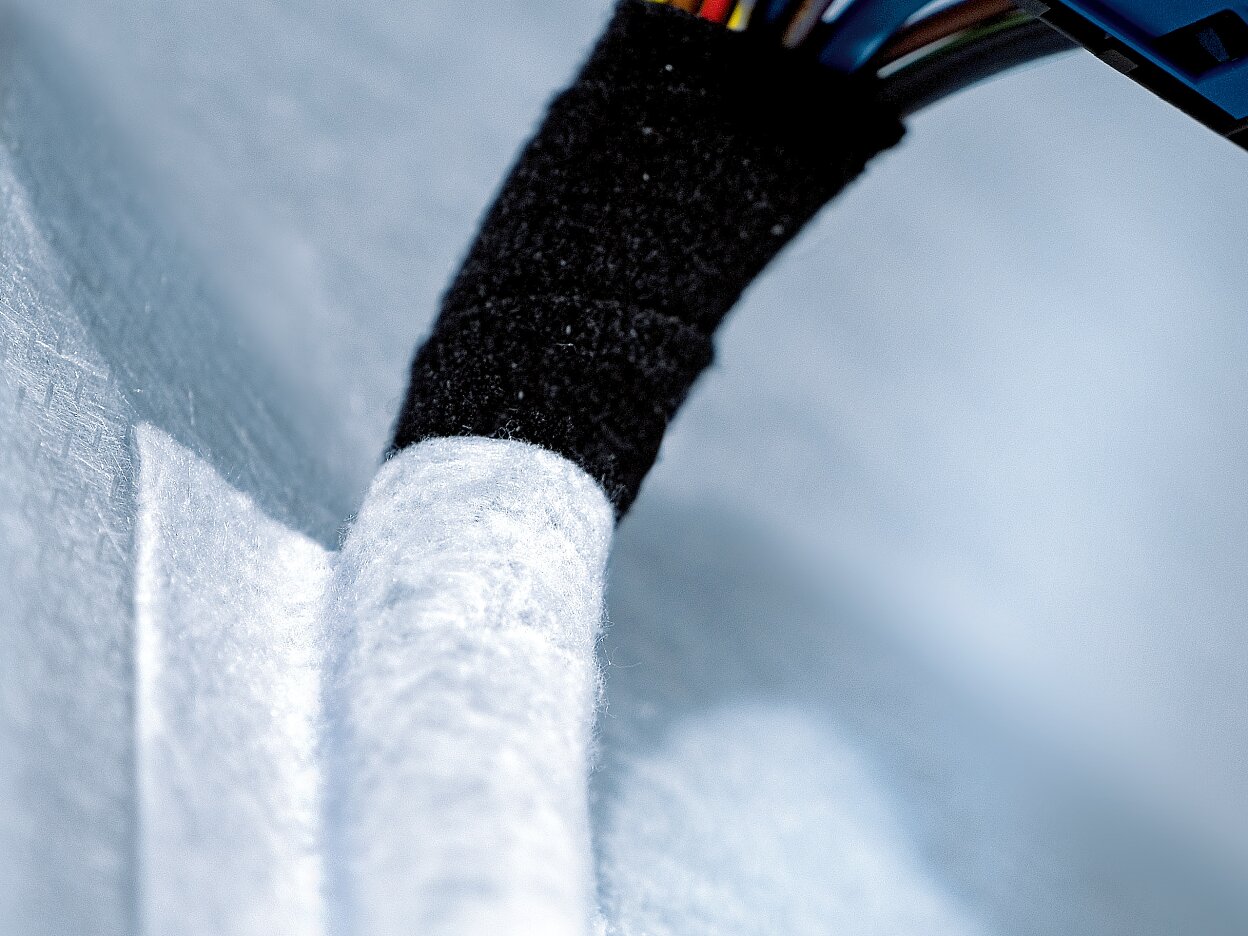

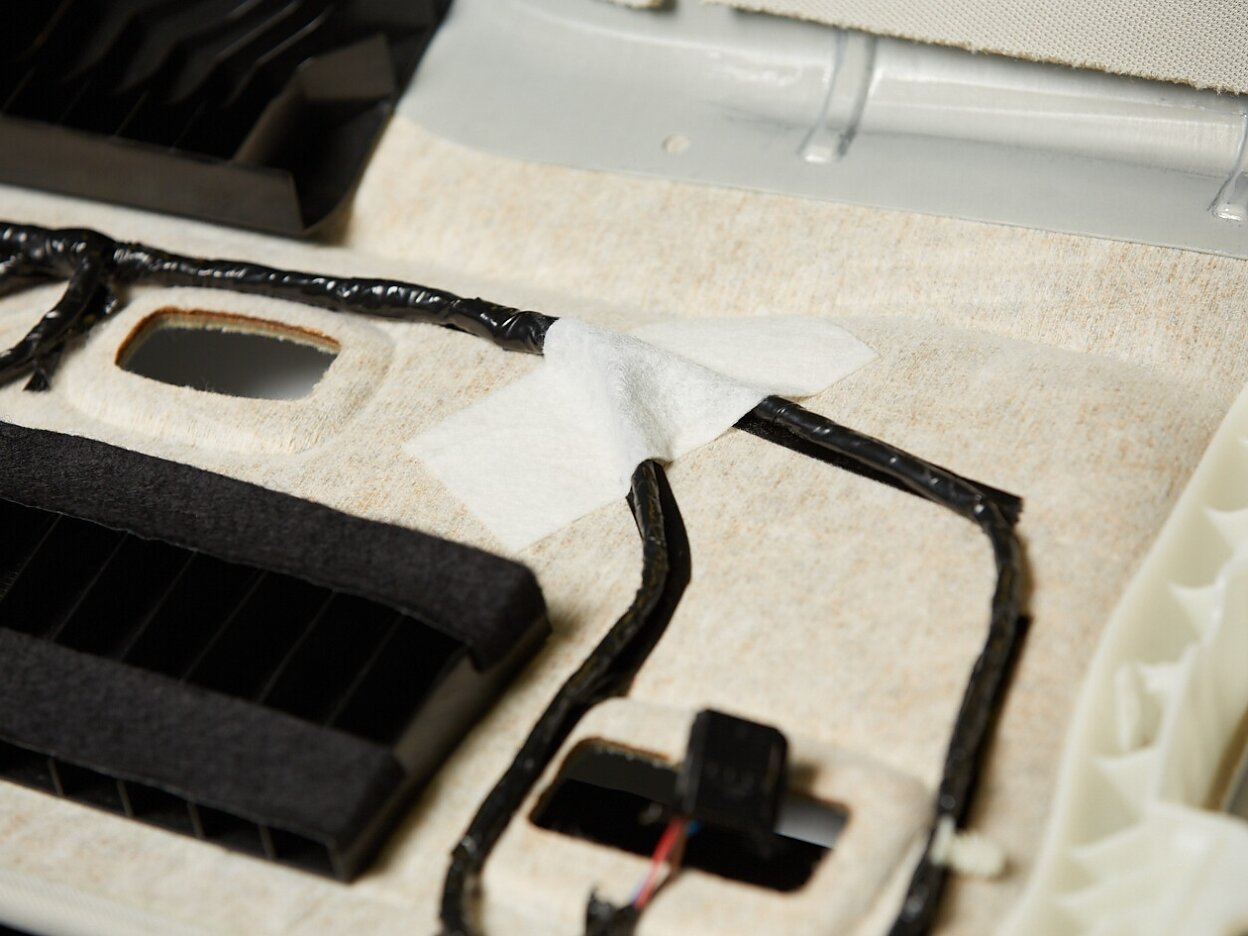

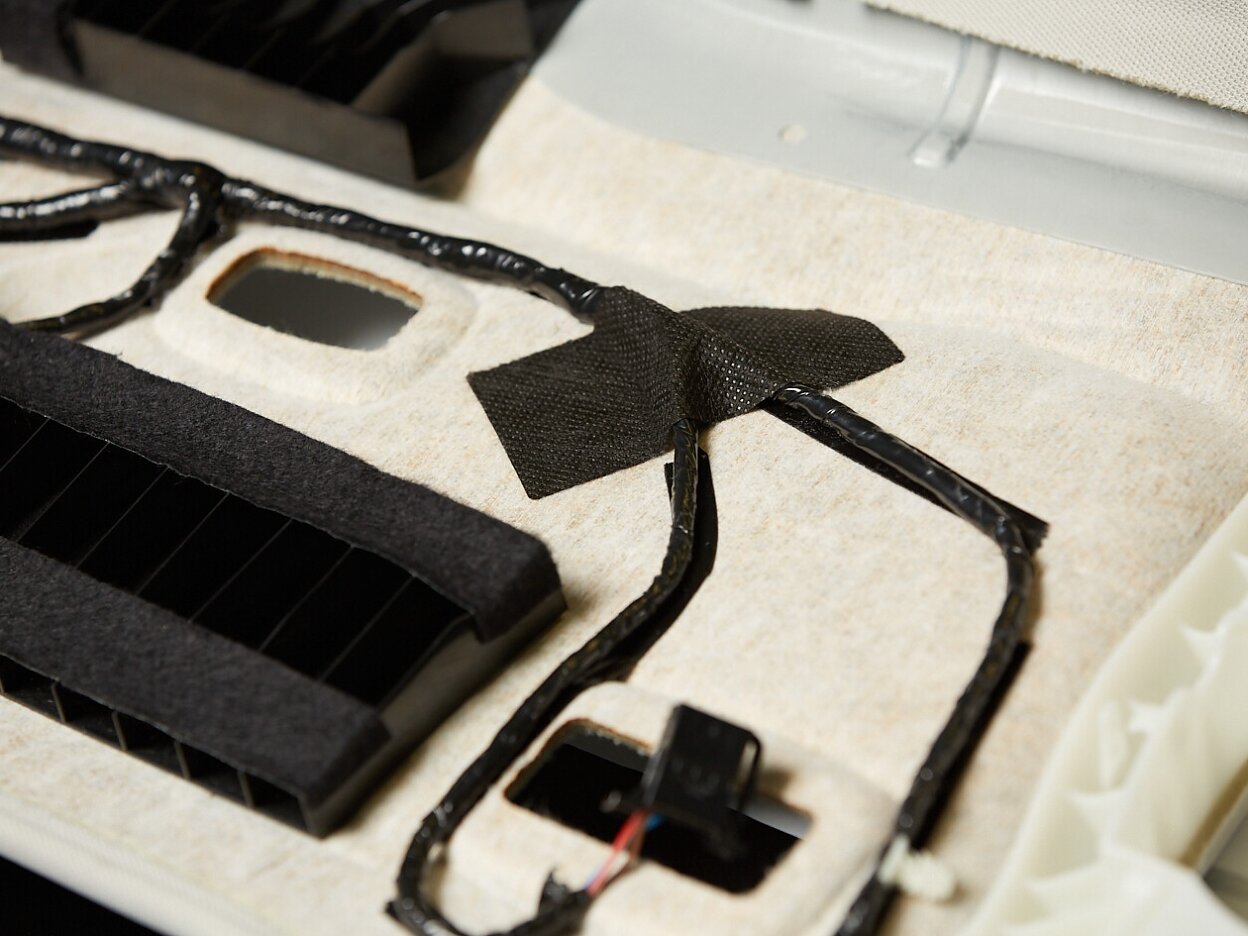

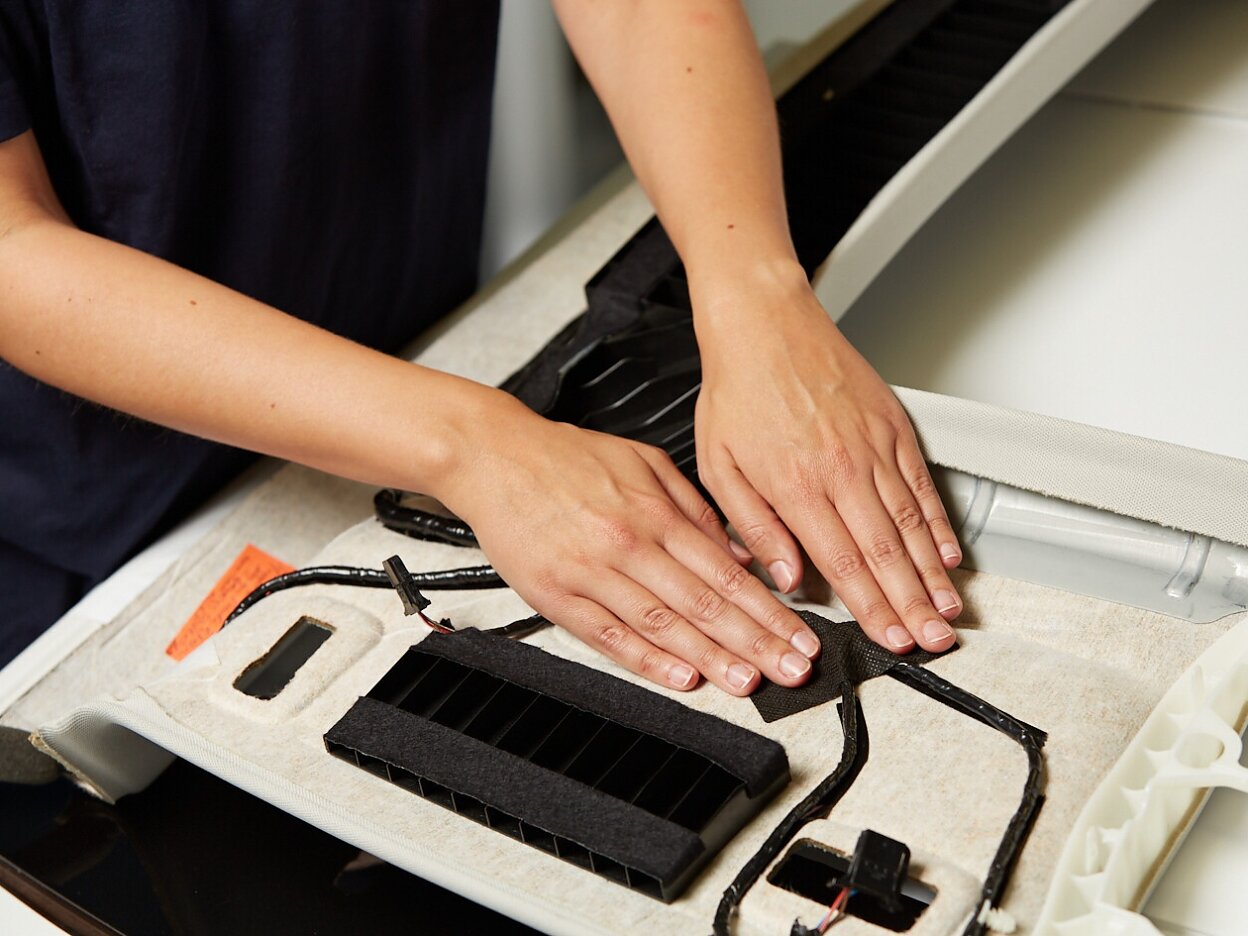

เทปผ้ าขน PET หนา และมีความอ่อนตัวติดแนบสนิทกับผิวโค้ง สำหรับติดสายไฟภายในรถ
tesa® 50118 PV1 เป็นเทปผ้าขน PET หนา มีความอ่อนตัวปรับตัวติดแนบสนิทกับพื้นผิวที่ไม่ราบเรียบได้ง่าย พร้อมด้วยกาวอะคริลิคที่ได้รับการออกแบบมาสำหรับการใช้งานภายในยานยนต์ .
คุณสมบัติ:
Backing material | PET fleece |
Color | สีดำ/สีขาว |
Color of liner | สีเหลือง |
Thickness of liner | 75 µm |
Thickness of tape | 540 µm |
Type of adhesive | type: acrylic |
Type of liner | type: glassine |
Weight of liner | 90 g/m² |
Backing material | PET fleece |
Color | สีดำ/สีขาว |
Color of liner | สีเหลือง |
Thickness of liner | 75 µm |
Thickness of tape | 540 µm |
Type of adhesive | type: acrylic |
Type of liner | type: glassine |
Weight of liner | 90 g/m² |
Elongation at break | 70 % |
Tensile strength | 31 N/cm |
Hand tearability | ต่ำ |
Static shear resistance | ดีมาก |
Noise damping (LV312) | Class C |
การทนต่ออุณหภูมิระยะเวลาสั้น | 160 °C |
Tack | ดีมาก |
Suitable for rough surfaces | ดีมาก |
Low VOC | ดีมาก |
Elongation at break | 70 % |
Tensile strength | 31 N/cm |
Hand tearability | ต่ำ |
Static shear resistance | ดีมาก |
Noise damping (LV312) | Class C |
การทนต่ออุณหภูมิระยะเวลาสั้น | 160 °C |
Tack | ดีมาก |
Suitable for rough surfaces | ดีมาก |
Low VOC | ดีมาก |
Adhesion to PET (initial) | 8.5 N/cm |
Adhesion to PET fleece Headliner A (initial) | 3.9 N/cm |
Adhesion to PET fleece surface (after 3 days) | 5.2 N/cm |
Adhesion to PET fleece Headliner A (after 3 days) | 5.9 N/cm |
Adhesion to PET fleece surface (initial) | 5.2 N/cm |
Adhesion to PET (after 3 days) | 9.1 N/cm |
Adhesion to PET (initial) | 8.5 N/cm |
Adhesion to PET fleece Headliner A (initial) | 3.9 N/cm |
Adhesion to PET fleece surface (after 3 days) | 5.2 N/cm |
Adhesion to PET fleece Headliner A (after 3 days) | 5.9 N/cm |
Adhesion to PET fleece surface (initial) | 5.2 N/cm |
Adhesion to PET (after 3 days) | 9.1 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
