Product Construction
| Backing material | PA cloth |
| Total thickness | 350 µm |
| Type of adhesive | type: advanced acrylic |
tesa® 69000
PA Cloth Tape for Superior Abrasion Protection
Product Features
- Superior abrasion resistance
- Temperature resistance up to 125°C
- Flag-resistance
Product description
tesa® 69000 is a PA cloth tape with a solvent-free, acrylic adhesive which offers excellent cable compatibility for all standard cables used in automotive wire harnesses.
The tape is designed for particularly demanding application areas within passenger and commercial vehicles and ensures superior abrasion protection for automotive wire harnesses in exposed areas of the vehicle e.g., the engine compartment, while enabling secure closing and high flag-resistance.

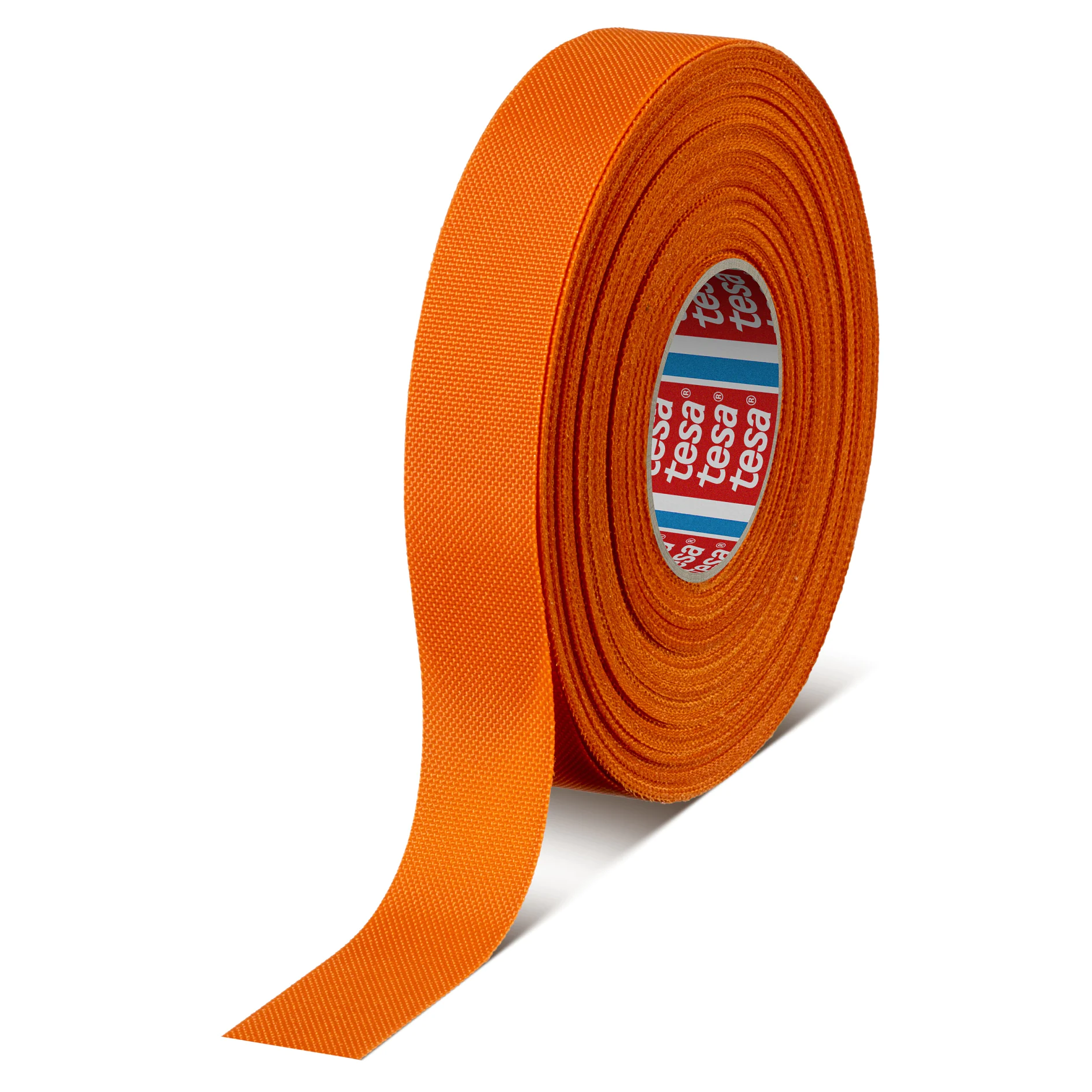

As tesa® 69000 is offered in both colors, black and orange, the tape can also be used for high-voltage applications.
Product details and specifications
Product Features
- Superior abrasion resistance
- Temperature resistance up to 125°C
- Flag-resistance
- Excellent cable compatibility
- Aging-resistance
- Flame-retardant
- Tear-resistance
- Stable unwinding force
- Available in black and orange color
Application Fields
tesa® 69000 has been specially designed for superior abrasion protection. The main application field is the engine compartment of passenger and commercial vehicles with demanding temperature-related and environmental conditions.
Product Construction
| Backing material | PA cloth |
| Total thickness | 350 µm |
| Type of adhesive | type: advanced acrylic |
Properties / Performance Values
| Elongation at break | 35 % |
| Tensile strength | 450 N/cm |
| Unwind force (roll width ≤ 9mm) | 4 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 10 N/roll (30 m/min) |
| Temperature resistance max. | 125 °C |
| Temperature resistance min. | -40 °C |
| Noise damping (LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class E |
| Abrasion resistance (5mm mandrel, LV312) | Class E |
Properties / Performance Values
| Elongation at break | 35 % |
| Tensile strength | 450 N/cm |
| Unwind force (roll width ≤ 9mm) | 4 N/roll (30 m/min) |
| Unwind force (roll width > 9mm) | 10 N/roll (30 m/min) |
| Temperature resistance max. | 125 °C |
| Temperature resistance min. | -40 °C |
| Noise damping (LV312) | Class A |
| Abrasion resistance (10mm mandrel, LV312) | Class E |
| Abrasion resistance (5mm mandrel, LV312) | Class E |
Adhesion to Values
| Adhesion to Steel | 3.5 N/cm |
Adhesion to Values
| Adhesion to Steel | 3.5 N/cm |
Additional Info
- Standard widths: 19, 25, 38 mm
- Standard lengths: 15, 20 m
- Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
