Hard grade PVC closed cell double sided foam tape 4.8mm thick (black). Ideal for use in the glazing market
Product Features
The closed cell foam can create a waterproof barrier when compressed, while still being flexible enough to seal uneven surfaces.
The higher density foam has a greater resistance to water penetration than tesa 602 Series foam tapes, making it the ideal choice for sealing applications in the glazing market.
tesa 604 Series is resistant to fungi, oxidation, UV and ozone.
All product featuresProduct description

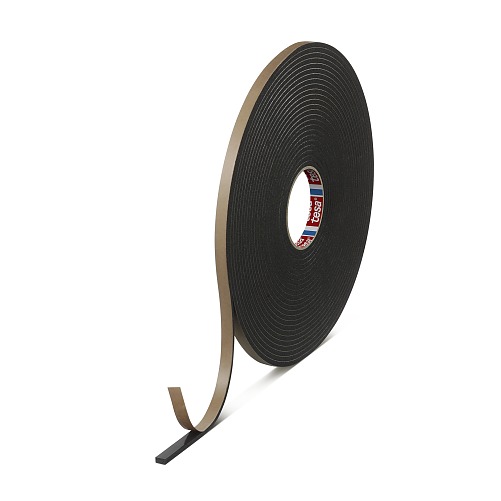

tesa 60405 is a 4.8mm hard grade closed cell PVC foam tape with an acrylic adhesive on both sides.
Note: 604 Series has a permanently elastic adhesive and is not suitable for bonding or mounting applications.
Product details and specifications
Product Features
The closed cell foam can create a waterproof barrier when compressed, while still being flexible enough to seal uneven surfaces.
The higher density foam has a greater resistance to water penetration than tesa 602 Series foam tapes, making it the ideal choice for sealing applications in the glazing market.
tesa 604 Series is resistant to fungi, oxidation, UV and ozone.
It complies with A.A.M.A.**810-85 type 1 and AS 2047 standards.
The elastic adhesive prevents flanking, stopping the water passing between the foam and the glass or aluminium window frame.
Application Fields
tesa 604 Series foam tape is an approved primary glazing seal for domestic and commercial glazing systems.
Application ideas:
Primary seal between the glass and metal frame in commercial and domestic windows and window walls
Dampening vibrations between the metal frame and cladding in the transport industry
Product Construction
Backing material
PVC foam
Color
black
Total thickness
4800 µm
Type of adhesive
type: acrylic
Type of liner
type: paper
Product Construction
Backing material
PVC foam
Color
black
Total thickness
4800 µm
Type of adhesive
type: acrylic
Type of liner
type: paper
Properties / Performance Values
Elongation at break
160 %
Properties / Performance Values
Elongation at break
160 %
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
Downloads
Download the files below for more technical details and information on this product.
