Product Construction
Backing material | none |
Colour | black |
Colour of liner | transparent |
Thickness of tape | 800 µm |
Total thickness | 800 µm |
Type of adhesive | type: performance polymer foam |
Type of liner | type: PET |

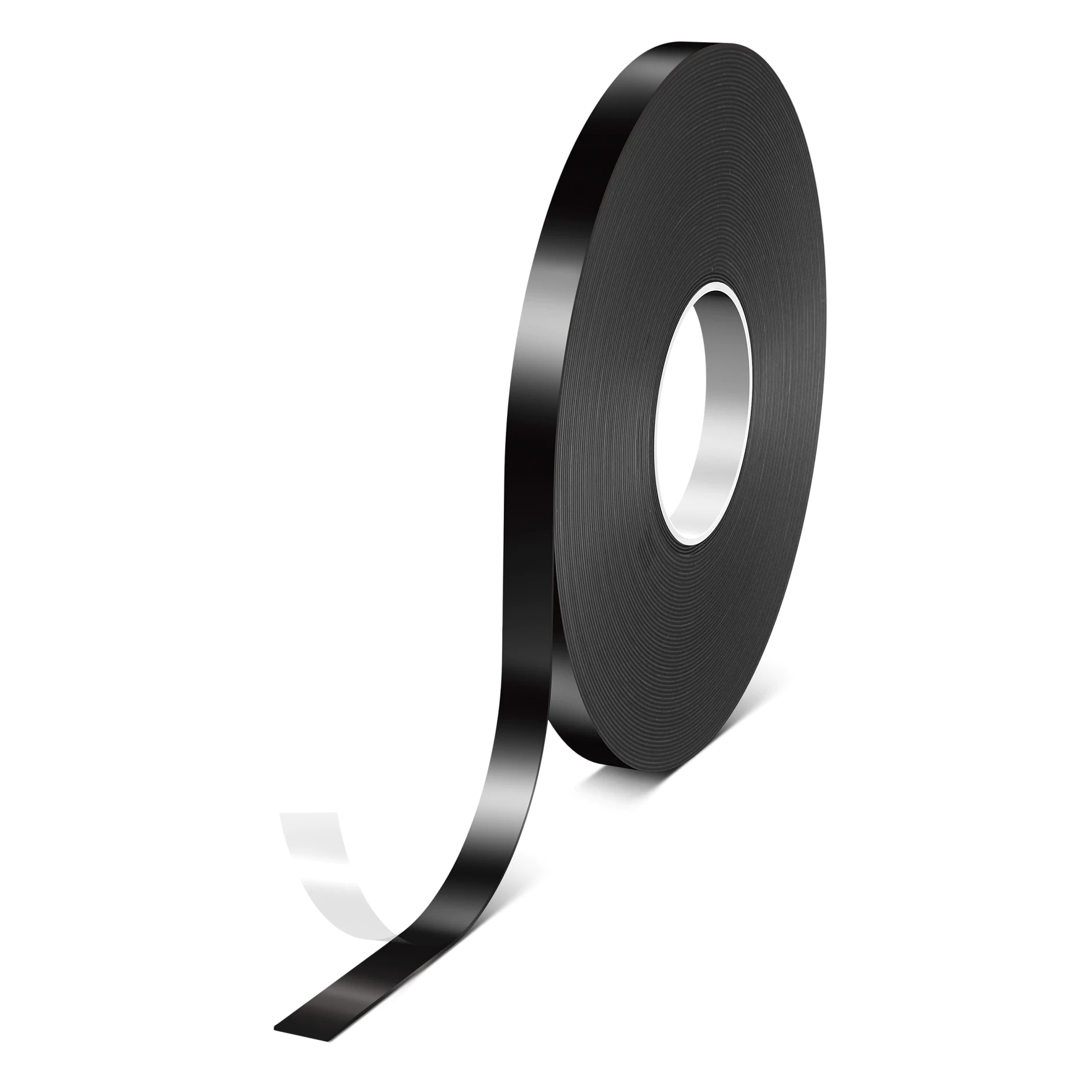

High initial Performance (HiP) - 0.8 mm double-sided foam tape for LSE surfaces: plastic to plastic application
tesa® 92108 HiP is a deep black double-sided foam tape for mounting interior plastic parts. This single-layer designed product provides its high performance on LSE plastics right after application without any surface pre-treatment. Its high-performance LSE adhesive creates an outstanding and secure bond to typical automotive attachment parts made of LSE (like PP and PP/EPDM) and MSE (like ABS, PA, or PC). tesa® 92108 HiP shows low VOC properties to meet automotive interior requirements and assures a reliable bond in the temperature range from -30°C to 100°C that is requested for interior applications.
Its pull force resistance and shear force resistance even on demanding LSE surfaces is outstanding and provides a secure bond in changing temperature conditions.
tesa® 92108 HiP is suitable for sealing requirements in terms of air and humidity permeability.
tesa® 92108 HiP is also available in 0.5 mm and 1.1 mm thicknesses.
LSE: Low surface energy
MSE: Medium surface energy
Backing material | none |
Colour | black |
Colour of liner | transparent |
Thickness of tape | 800 µm |
Total thickness | 800 µm |
Type of adhesive | type: performance polymer foam |
Type of liner | type: PET |
Backing material | none |
Colour | black |
Colour of liner | transparent |
Thickness of tape | 800 µm |
Total thickness | 800 µm |
Type of adhesive | type: performance polymer foam |
Type of liner | type: PET |
Suitable for die cutting | yes |
Static shear resistance | very good |
Ageing resistance (UV) | good |
Low VOC | very good |
Suitable for die cutting | yes |
Static shear resistance | very good |
Ageing resistance (UV) | good |
Low VOC | very good |
Adhesion to ABS (initial) | 25 N/cm |
Adhesion to ABS (after 3 days) | 30 N/cm |
Adhesion to PP (initial) | 28 N/cm |
Adhesion to PP (after 3 days) | 36 N/cm |
Adhesion to Steel (initial) | 32 N/cm |
Adhesion to Steel (after 3 days) | 35 N/cm |
Adhesion to ABS (initial) | 25 N/cm |
Adhesion to ABS (after 3 days) | 30 N/cm |
Adhesion to PP (initial) | 28 N/cm |
Adhesion to PP (after 3 days) | 36 N/cm |
Adhesion to Steel (initial) | 32 N/cm |
Adhesion to Steel (after 3 days) | 35 N/cm |
Download the files below for more technical details and information on this product.
