Product Construction
Backing material | PE foam |
Color | สีขาว |
Color of liner | สีน้ำตาล |
Thickness of liner | 70 µm |
Total thickness | 1150 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: glassine |
Weight of liner | 80 g/m² |
เทปโฟม PE กาวสองหน้า

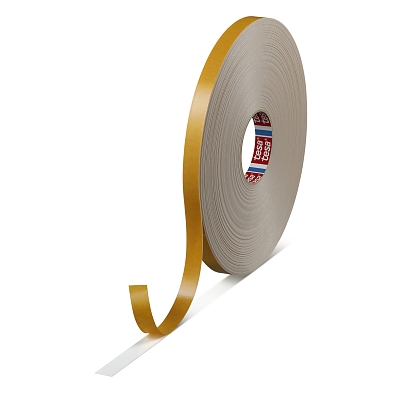

tesa® 4952 เป็นเทปโฟมชนิด PE กาวสองด้าน สำหรับใช้ในงานติดประกอบที่เป็นงานโครงสร้างและต้องการแรงยึดติดสูง ประกอบด้วย backing ชนิดโฟม PE อ่อนตัวแนบติดได้ดีกับผิวโค้ง และกาวอะคริลิค tesa® 4952 ได้รับการรับรองจากหน่วยงานภายนอกสำหรับการติดตั้งกระจกประดับตกแต่ง.
ประโยชน์ของผลิตภัณฑ์:
Backing material | PE foam |
Color | สีขาว |
Color of liner | สีน้ำตาล |
Thickness of liner | 70 µm |
Total thickness | 1150 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: glassine |
Weight of liner | 80 g/m² |
Backing material | PE foam |
Color | สีขาว |
Color of liner | สีน้ำตาล |
Thickness of liner | 70 µm |
Total thickness | 1150 µm |
Type of adhesive | type: tackified acrylic |
Type of liner | type: glassine |
Weight of liner | 80 g/m² |
Elongation at break | 200 % |
Tensile strength | 10 N/cm |
การทนต่ออุณหภูมิระยะเวลายาว | 80 °C |
Chemical resistance | ดี, กลาง |
การทนต่ออุณหภูมิระยะเวลาสั้น | 80 °C |
Static shear resistance at 23°C | ดี, กลาง |
Static shear resistance at 40°C | ดี, กลาง |
Tack | ดี, กลาง |
Ageing resistance (UV) | ดี, กลาง |
Humidity resistance | ดีมาก |
Softener resistance | กลาง, ดี |
Elongation at break | 200 % |
Tensile strength | 10 N/cm |
การทนต่ออุณหภูมิระยะเวลายาว | 80 °C |
Chemical resistance | ดี, กลาง |
การทนต่ออุณหภูมิระยะเวลาสั้น | 80 °C |
Static shear resistance at 23°C | ดี, กลาง |
Static shear resistance at 40°C | ดี, กลาง |
Tack | ดี, กลาง |
Ageing resistance (UV) | ดี, กลาง |
Humidity resistance | ดีมาก |
Softener resistance | กลาง, ดี |
Adhesion to ABS (initial) | 5 N/cm |
Adhesion to ABS (after 14 days) | 8 N/cm |
Adhesion to Aluminium (initial) | 5 N/cm |
Adhesion to Aluminium (after 14 days) | 8 N/cm |
Adhesion to PC (initial) | 5 N/cm |
Adhesion to PC (after 14 days) | 8 N/cm |
Adhesion to PE (initial) | 2.7 N/cm |
Adhesion to PE (after 14 days) | 2.8 N/cm |
Adhesion to PET (initial) | 5 N/cm |
Adhesion to PET (after 14 days) | 7 N/cm |
Adhesion to PP (initial) | 2.8 N/cm |
Adhesion to PP (after 14 days) | 5.5 N/cm |
Adhesion to PS (initial) | 5 N/cm |
Adhesion to PS (after 14 days) | 7.5 N/cm |
Adhesion to PVC (initial) | 5 N/cm |
Adhesion to PVC (after 14 days) | 8 N/cm |
Adhesion to Steel (initial) | 6.5 N/cm |
Adhesion to Steel (after 14 days) | 8 N/cm |
Adhesion to ABS (initial) | 5 N/cm |
Adhesion to ABS (after 14 days) | 8 N/cm |
Adhesion to Aluminium (initial) | 5 N/cm |
Adhesion to Aluminium (after 14 days) | 8 N/cm |
Adhesion to PC (initial) | 5 N/cm |
Adhesion to PC (after 14 days) | 8 N/cm |
Adhesion to PE (initial) | 2.7 N/cm |
Adhesion to PE (after 14 days) | 2.8 N/cm |
Adhesion to PET (initial) | 5 N/cm |
Adhesion to PET (after 14 days) | 7 N/cm |
Adhesion to PP (initial) | 2.8 N/cm |
Adhesion to PP (after 14 days) | 5.5 N/cm |
Adhesion to PS (initial) | 5 N/cm |
Adhesion to PS (after 14 days) | 7.5 N/cm |
Adhesion to PVC (initial) | 5 N/cm |
Adhesion to PVC (after 14 days) | 8 N/cm |
Adhesion to Steel (initial) | 6.5 N/cm |
Adhesion to Steel (after 14 days) | 8 N/cm |
ดาวน์โหลดไฟล์ด้านล่างเพื่อข้อมูลทางเทคนิคและข้อมูลเพิ่มเติมเกี่ยวกับผลิตภัณฑ์นี้
