Product description

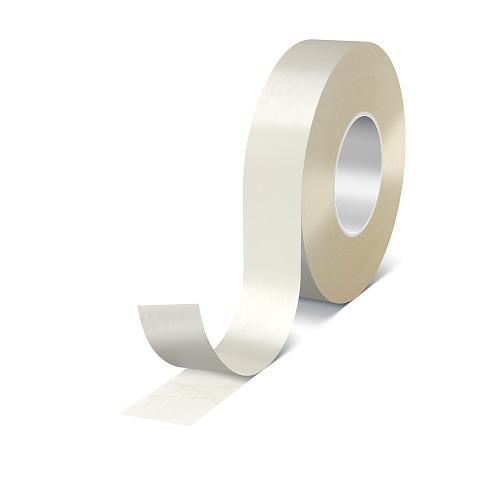

tesa® 77007 Infinite Bond is a permanent mounting tape for extrusion processes. The tape comprises of a heat sealable layer to bond to plastics during extrusion processes, a PET-film barrier layer and a reliable acrylic adhesive specifically chosen to comply with demanding surfaces such as powder-coatings. Coming with following feature:- Superior bond strength to extruded plastics due to in-line lamination with heat sealing layer
- Barrier film to prevent migration of additives (e.g. softeners) in to the adhesive
- Excellent performance on demanding substrates such as power coatings due to specifically chosen acrylic adhesive
Main applications
- Extrusion of intumescent seals
- Extrusion of Polyolefins (e.g. PE, PP)
- Extrusion of EVA
- Extrusion of EPDM
- General calendering processes with bulk temperature >150°C
Technical properties
Type of adhesive
acrylic
Bonding temperature
150 °C
Total thickness
140 µm
Backing material
PET
Color
transparent
Adhesion properties
Adhesion to Steel (initial)
13.7 N/cm
Adhesion to ABS (initial)
7.8 N/cm
Adhesion to ABS (after 14 days)
11.2 N/cm
Adhesion to Steel (after 14 days)
16.5 N/cm
Rating properties
Static shear resistance at 23°C
++
Humidity resistance
++
Ageing resistance (UV)
++
Temperature resistance long term
100 °C
Static shear resistance at 40°C
+
Temperature resistance short term
200 °C
Additional Info
PV1 = white paper linerPV6 = red MOPP liner
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
