Product information

tesa^® ACX^plus 75530 High Transparency

Name: tesa® ACXplus 75530 High Transparency
Brand: tesa®

3,00 µm double-sided acrylic core tape

Product description

tesa^® ACX^plus 75530 is a double-sided transparent acrylic core tape. It consists of a high performance acrylic system and is identified by its bonding power, stress dissipation and its temperature and weather resistance.

Due to the product’s unique formulation, this double-sided acrylic core tape combines high adhesion levels with the ability to absorb and dissipate high dynamic loads. The viscoelastic core of the product is able to compensate for thermal elongations of bonded parts.

tesa^® ACX^plus 75530 is especially suitable for constructive bonding of transparent and translucent materials such as glass or acrylic to receive a seamless and optical clear bonding. In addition, it is recommended for outdoor applications.

Main applications

The tesa^® ACX^plus product family is suitable for a wide range of constructive bonding applications. To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) in order to provide the right product recommendation. Example mounting applications of transparent and translucent materials include but are not limited to:

Plissee profiles

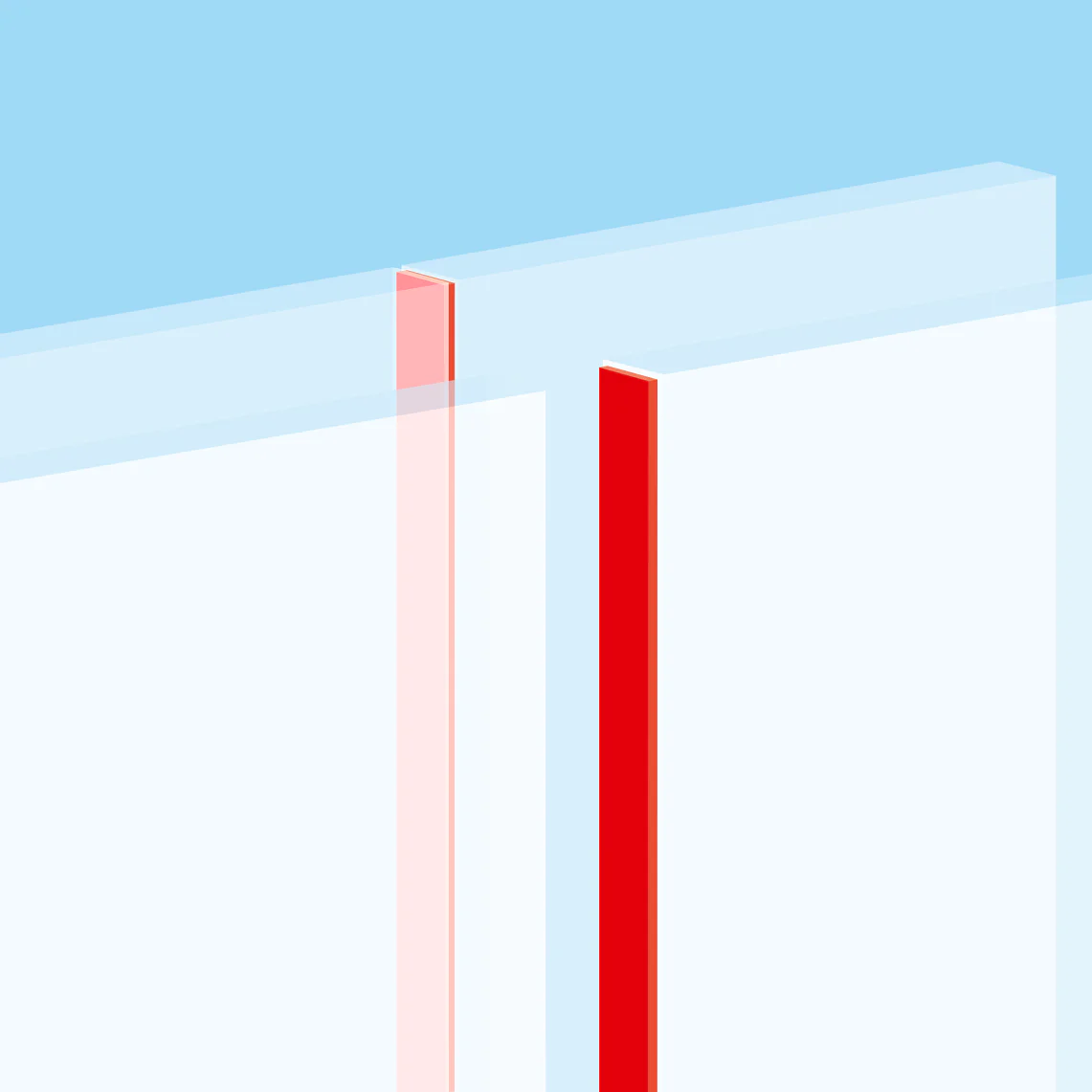

Partition walls (glass on glass)
Signage (PMMA on aluminum)
Extruded profiles

Additional Info

Please note that we recommend using tesa^® Adhesion Promoter as a surface pre-treatment. It leads to a significant improvement in adhesion levels, avoids moisture infiltration, and promotes long-term resistance against harsh environmental factors. Which tesa^® Adhesion Promoter should be used depends on the substrates and the application. We will be glad to advise you in order to find the right solution.

For permanent outdoor applications with load-bearing requirements, our first recommendation is tesa^® ACX^plus 707x High Resistance.

Selected product thicknesses of our 705x series are available with adhesive neutralized edges.

Liner versions:
•   PV12: Transparent PET liner – unbranded
•   PV26: White paper liner – unbranded
•   PV28: Blue film liner – unbranded
•   PV32: White paper liner – branded
•   Further liner versions might be available upon request.

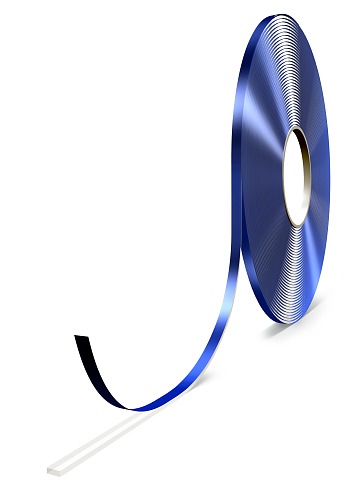

tesa_75530_PV24_pr_001

Technical properties

Elongation at break

1000 %

Type of adhesive

pure acrylic

Total thickness

3000 µm

Backing material

solid acrylic

Color

transparent

Adhesion properties

Adhesion to Steel (initial)

14 N/cm

Adhesion to PMMA (after 3 days)

20 N/cm

Adhesion to Aluminium (after 3 days)

26 N/cm

Adhesion to Steel (after 3 days)

27 N/cm

Adhesion to Glass (after 3 days)

32 N/cm

Adhesion to Glass (initial)

21 N/cm

Adhesion to PMMA (initial)

13 N/cm

Adhesion to Aluminium (initial)

12 N/cm

Rating properties

Static shear resistance at 23°C

T-block

Resistance to chemicals

Humidity resistance

Tack

Static shear resistance at 70°C

Ageing resistance (UV)

Temperature resistance long term

100 °C

Temperature resistance short term

200 °C

Softener resistance

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
