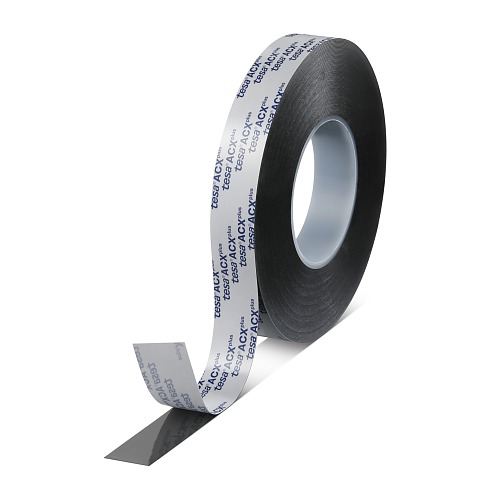

tesa® ACXplus 7072 High Resistance

500 µm double-sided acrylic foam tape

  • It combines a very good temperature and shear resistance with an outstanding cold shock resistance up to -40°.
  • The viscoelastic core of this product is able to compensate for thermal elongations of bonded parts.

Product description

tesa® ACXplus 7072 is a deep black double-sided acrylic foam tape. It consists of a high performance acrylic system and is identified by its bonding power, stress dissipation and its temperature resistance. tesa® ACXplus 7072 is especially designed for outdoor bonding applications.

Application Fields

The tesa® ACXplus product family is suitable for a wide range of bonding applications. To ensure the highest performance possible, our aim is to fully understand the application (including the substrates involved) in order to provide the right product recommendation. Example mounting applications in different industries (e.g. solar, elevator, transportation) include but are not limited to:
• Decorative elements
• Door panels
• Flush Design

Product Construction

Elongation at break 1000 %
Type of adhesive pure acrylic
Total thickness 500 µm
Backing material foamed acrylic
Color deep black

Properties / Performance Values

Temperature resistance long term 120 °C
Temperature resistance short term 220 °C

Adhesion to Values

Adhesion to Steel (initial) 8 N/cm
Adhesion to Steel (initial) 8 N/cm
Adhesion to Aluminium (after 3 days) 18 N/cm
Adhesion to Steel (after 3 days) 20 N/cm
Adhesion to Glass (after 3 days) 20 N/cm
Adhesion to Glass (initial) 15 N/cm
Adhesion to Aluminium (initial) 8 N/cm

Additional Info

Please note that we recommend using tesa® Adhesion Promoter as a surface pre-treatment. It leads to a significant improvement in adhesion levels, avoids moisture infiltration, and promotes long-term resistance against harsh environmental factors. Which tesa® Adhesion Promoter should be used depends on the substrates and the application. We will be glad to advise you in order to find the right solution.

Liner versions:
  • PV22: White paper liner - branded
  • PV24: Blue film liner - unbranded
  • Further liner versions might be available upon request.


  • tesa® ACXplus 7072 is recognized according to UL Standard 746C. UL File QOQW2.E309290
  • RST Fire testing in accordance with DIN EN 45545-2, EN ISO 5658-2
  • Qualified for a credit according LEED
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
