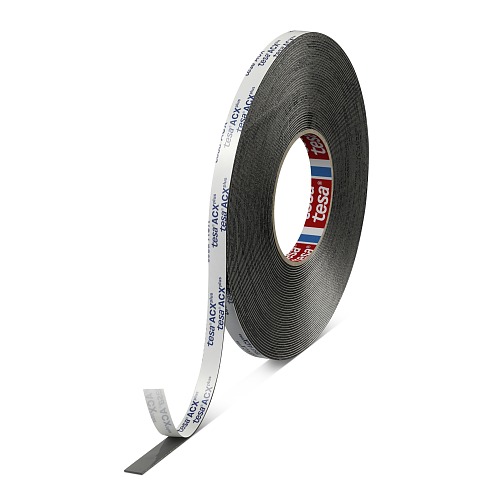

tesa® ACXplus 7066 High Adhesion
1500 µm double-sided acrylic foam tape
- It combines very high adhesion levels with a very good resistance against plasticizer migration.
- The viscoelastic core of this product is able to compensate for thermal elongations of bonded parts.
- This product provides a very high immediate tack and peel adhesion even on substrates with a low surface energy.
Product description
tesa® ACXplus 7066 is a deep black double-sided acrylic foam tape. It consists of a high performance acrylic system and is identified by its very good adhesion to difficult to bond substrates and stress dissipation. It is recommended for indoor applications.
tesa® ACXplus 7066 is especially designed for the bonding of “hard-to-bond-materials” such as powder coatings or plastic materials. Even in combinations of such materials, this product provides advanced safety due to its innovative product design.
tesa® ACXplus 7066 is especially designed for the bonding of “hard-to-bond-materials” such as powder coatings or plastic materials. Even in combinations of such materials, this product provides advanced safety due to its innovative product design.
Application Fields
tesa® ACXplus product family is suitable for a wide range of constructive bonding applications. To ensure the highest performance possible, our aim is to fully understand the application (including the substrate involved) in order to provide the right product recommendation. Example bonding solutions of “hard-to-bond-materials” include but are not limited to:
- Bumper rails
- Signage, blades or panels
- Reinforcement bars (e.g. in elevators)
- Decorative parts on white goods (e.g. decorative panel mounting)
1 / 2
2 / 2
Product Construction
| Elongation at break | 600 % |
| Type of adhesive | tackified acrylic |
| Total thickness | 1500 µm |
| Backing material | foamed acrylic |
| Color | deep black |
Properties / Performance Values
| Temperature resistance long term | 70 °C |
| Temperature resistance short term | 170 °C |
Adhesion to Values
| Adhesion to PMMA (after 3 days) | 41 N/cm |
| Adhesion to Aluminium (after 3 days) | 40 N/cm |
| Adhesion to Steel (after 3 days) | 45 N/cm |
| Adhesion to Glass (after 3 days) | 39 N/cm |
Additional Info
Liner versions:
- PV22: White paper liner – branded
- PV24: Blue film liner – unbranded
- Further liner versions might be available upon request.
- tesa® ACXplus 7066 is recognized according to UL Standard 746C. UL File QOQW2.E309290
- tesa® ACXplus 7066 is recognized according to UL Standard 879. UL File UYMR2.E479260
- Qualified for a credit according to LEED
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
