Product Construction
| Backing material | aluminium foil |
| Color of liner | white |
| Thickness of liner | 85 µm |
| Thickness of tape | _NULL µm |
| Total thickness | 80 µm |
| Type of adhesive | type: synthetic rubber |
| Type of liner | type: paper |

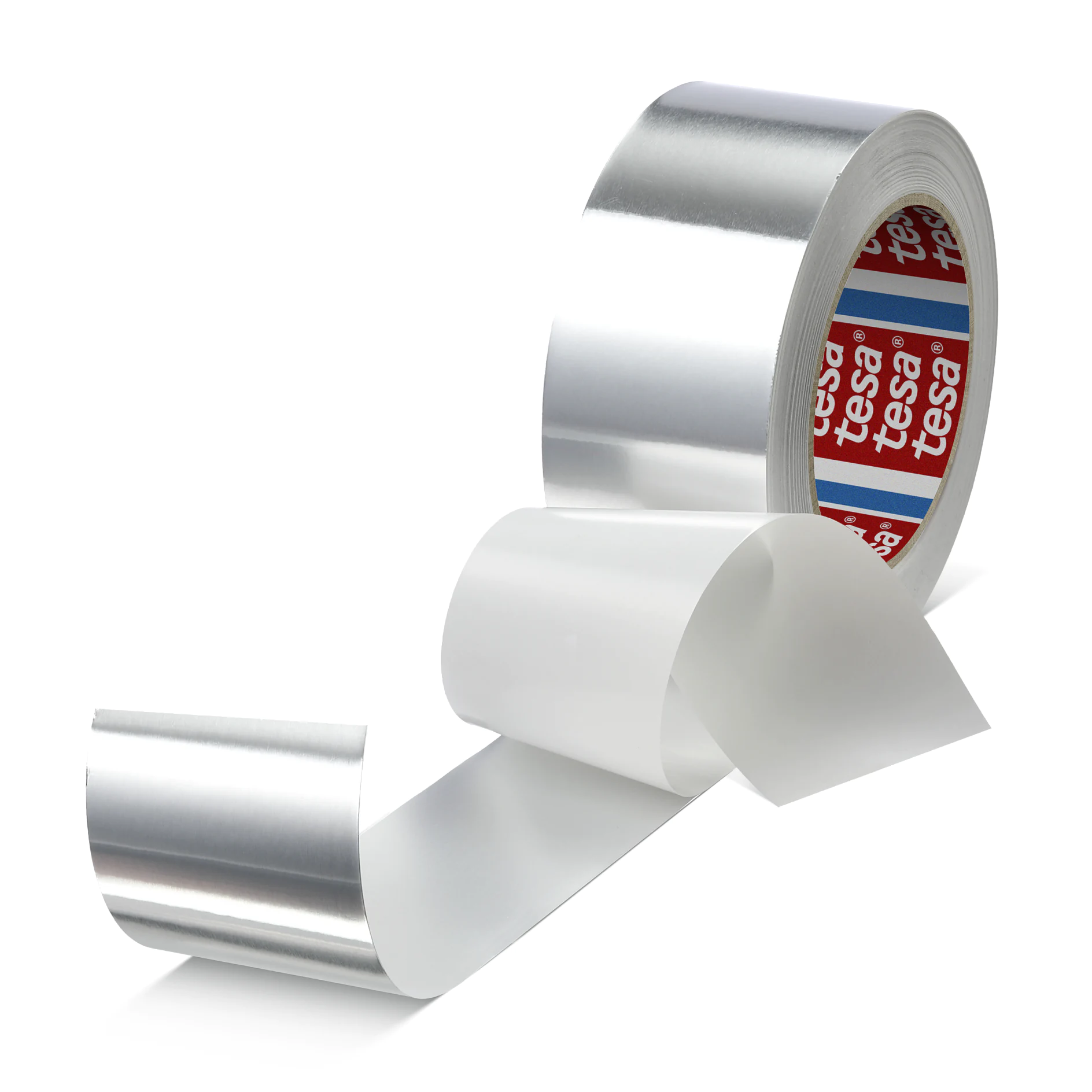

tesa® 60642
Aluminum tape with paper liner - 40µm foil
Product Features
- Balanced stability and conformability
- Good initial tack
- Easily removable liner
Product description
tesa® 60642 is a basic aluminum tape for thermal insulation strapping, joining and sealing application. It consists of a 40 μm aluminum foil, transparent synthetic rubber adhesive and an 85μm siliconized paper liner
Product details and specifications
Product Features
- Balanced stability and conformability
- Good initial tack
- Easily removable liner
- Barrier against moisture, gases and vapors
- Heat and light reflective
- Flame retardant according to BS476, class 0
Application Fields

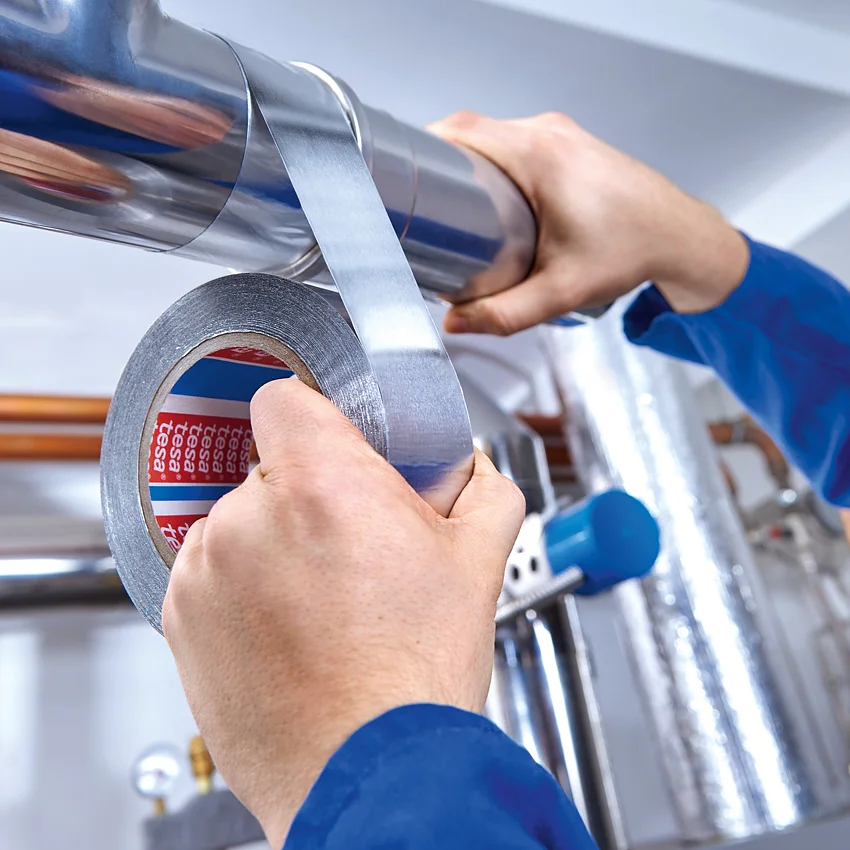

- Joining and sealing of thermal insulation, ducts and pipes
- To reflect heat radiation
Product Construction
| Backing material | aluminium foil |
| Color of liner | white |
| Thickness of liner | 85 µm |
| Thickness of tape | _NULL µm |
| Total thickness | 80 µm |
| Type of adhesive | type: synthetic rubber |
| Type of liner | type: paper |
Properties / Performance Values
| Suitable for die cutting | yes |
| Abrasion resistance | very good |
| Elongation at break | 5 % |
| Tensile strength | 21 N/cm |
| Operation temperature up to | 60 °C |
| Tack | very good |
| Release of liner | easy |
| Operation temperature from | -20 °C |
| Liner release force | 0.3 N/cm |
| Hand tearability | very good |
| Backing appearance (visual) | reflective |
| Temperature resistance min. | -20 °C |
Properties / Performance Values
| Suitable for die cutting | yes |
| Abrasion resistance | very good |
| Elongation at break | 5 % |
| Tensile strength | 21 N/cm |
| Operation temperature up to | 60 °C |
| Tack | very good |
| Release of liner | easy |
| Operation temperature from | -20 °C |
| Liner release force | 0.3 N/cm |
| Hand tearability | very good |
| Backing appearance (visual) | reflective |
| Temperature resistance min. | -20 °C |
Adhesion to Values
| Adhesion to Steel | 8 N/cm |
Adhesion to Values
| Adhesion to Steel | 8 N/cm |
Additional Info
The total thickness given in the section "Technical Data" describes the thickness of the tape without liner. The thickness with liner is 165 μm.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
