Product Construction
| Backing material | PETP |
| Color | black |
| Color of liner | white |
| Thickness of liner | 140 µm |
| Total thickness | 85 µm |
| Type of adhesive | type: modified acrylic |
| Type of liner | type: PE-coated paper |

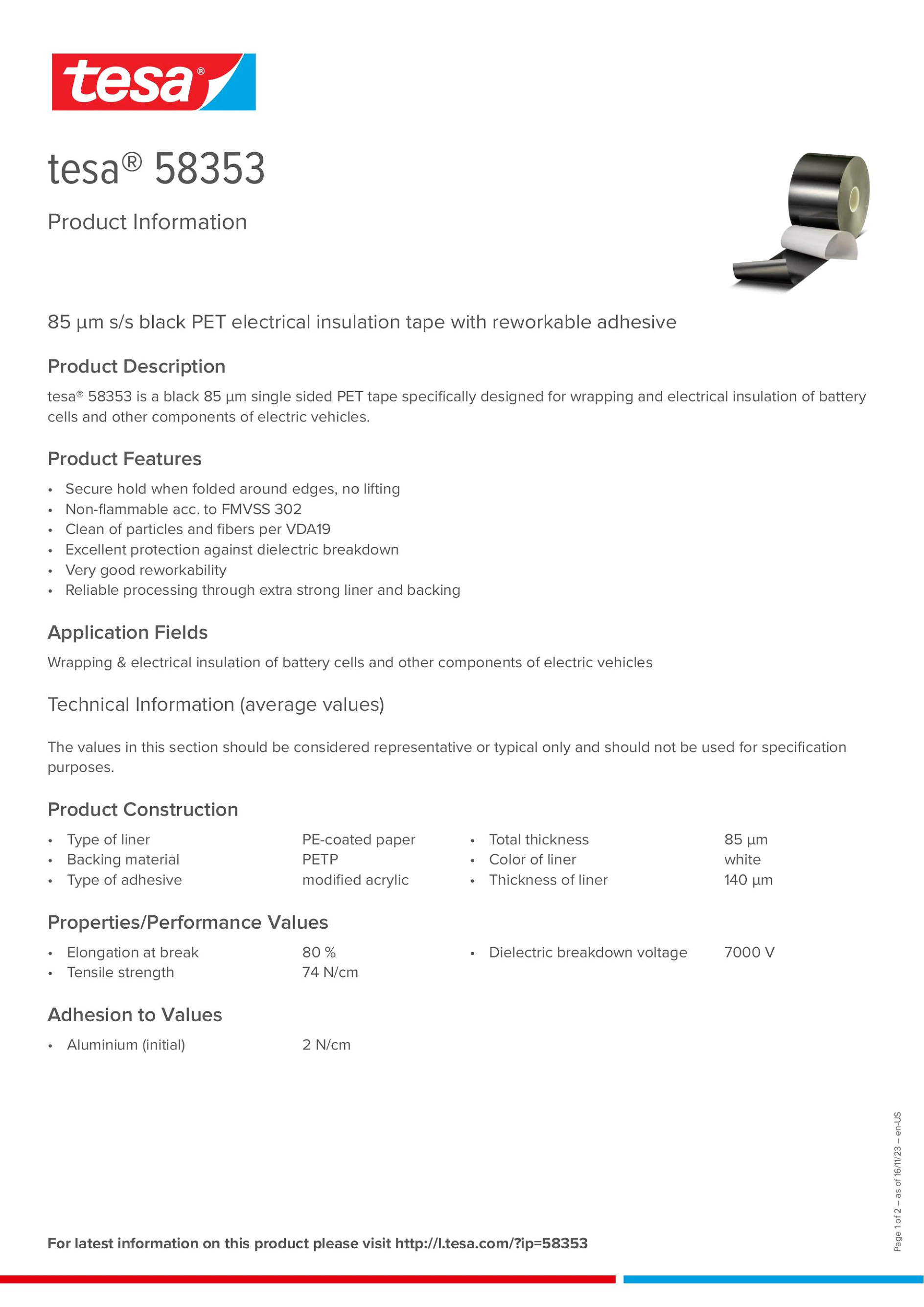

tesa® 58353
85 µm s/s black PET electrical insulation tape with reworkable adhesive
Product Features
- Secure hold when folded around edges, no lifting
- Non-flammable acc. to FMVSS 302
- Clean of particles and fibers per VDA19
Product description

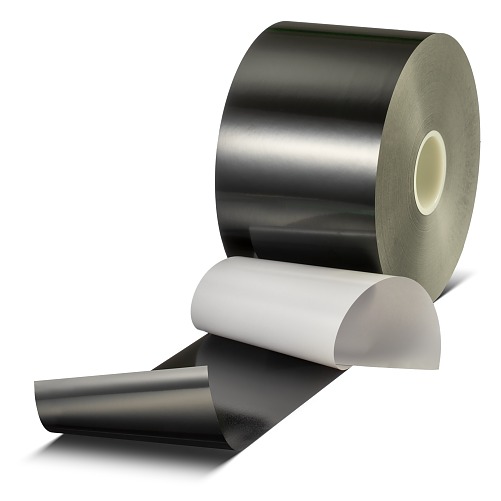

tesa® 58353 is a black 85 µm single sided PET tape specifically designed for wrapping and electrical insulation of battery cells and other components of electric vehicles.
Product details and specifications
Product Features
- Secure hold when folded around edges, no lifting
- Non-flammable acc. to FMVSS 302
- Clean of particles and fibers per VDA19
- Excellent protection against dielectric breakdown
- Very good reworkability
- Reliable processing through extra strong liner and backing
Application Fields
Wrapping & electrical insulation of battery cells and other components of electric vehicles
Product Construction
| Backing material | PETP |
| Color | black |
| Color of liner | white |
| Thickness of liner | 140 µm |
| Total thickness | 85 µm |
| Type of adhesive | type: modified acrylic |
| Type of liner | type: PE-coated paper |
Properties / Performance Values
| Elongation at break | 80 % |
| Tensile strength | 74 N/cm |
| Dielectric breakdown voltage | 7000 V |
Properties / Performance Values
| Elongation at break | 80 % |
| Tensile strength | 74 N/cm |
| Dielectric breakdown voltage | 7000 V |
Adhesion to Values
| Adhesion to Aluminium (initial) | 2 N/cm |
| Adhesion to Aluminium (after 14 days) | 5 N/cm |
| Adhesion to Steel (initial) | 6 N/cm |
| Adhesion to Steel (after 14 days) | 6 N/cm |
Adhesion to Values
| Adhesion to Aluminium (initial) | 2 N/cm |
| Adhesion to Aluminium (after 14 days) | 5 N/cm |
| Adhesion to Steel (initial) | 6 N/cm |
| Adhesion to Steel (after 14 days) | 6 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
