How to apply the tesa® Insect Stop Adapter Set

Our fly screens for windows and doors allow you to protect your windows so that insects can't get in. All fly screen solutions for windows and doors can be mounted in a snap and require no drilling.

Step-by-step Tutorial Video:

tesa_InsectStop_NWB_Adapter_Tutorial-Long_180112

Video Tutorial - Adapter

Take a look at our step-by-step video and convince yourself of how simple it is to use our mounting tape and to implement your projects. The adapter set for aluminum doors is based on the tesa® Power.Kit technology and does not cause any drill holes in the door frame.

tesa_Insect_Stop_NWB_Adapter_step_1of11_ap
01

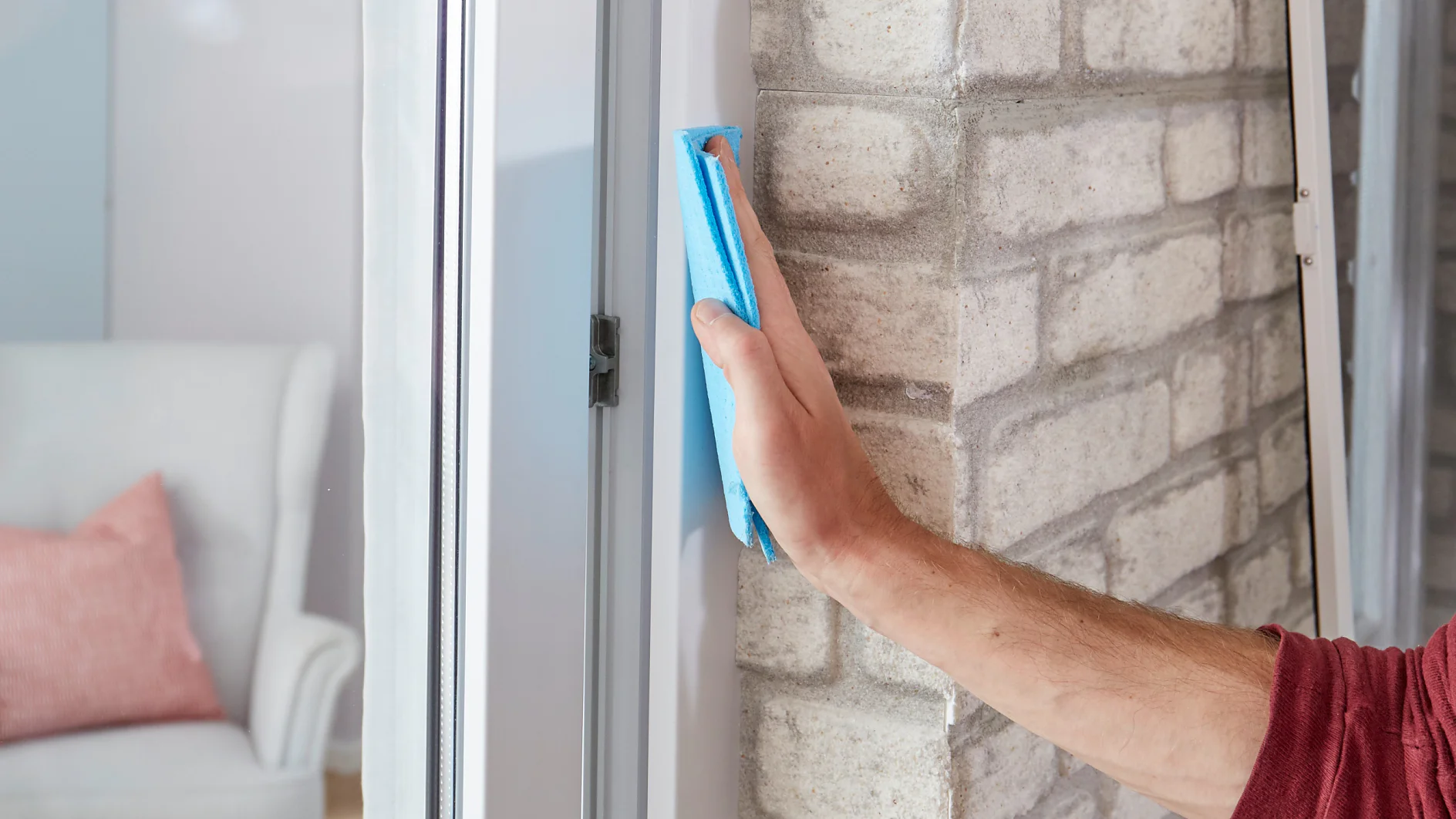

Clean the window frame and use a dust-free cloth with a little alcohol or denatured alcohol to remove dirt and grease. If you would prefer to use a cleaning agent, you should choose one which is silicone-free. Silicone has non-stick properties and therefore prevents adhesion. Before continuing with the next step, the surface should be dry.
tesa_Insect_Stop_NWB_Adapter_step_2of11_ap
02

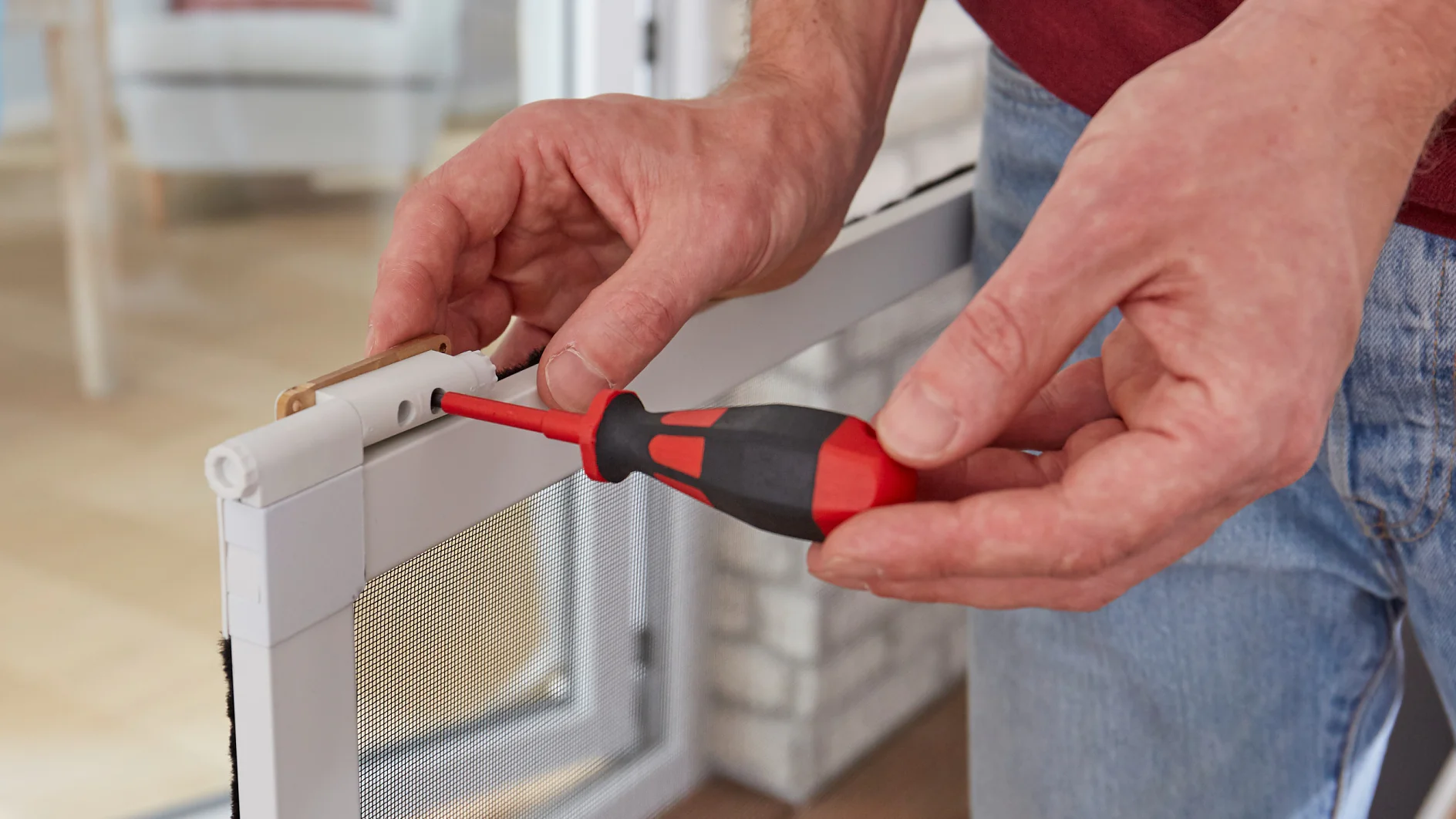

Next, screw the adapter tightly to the aluminum frame's hinge.
tesa_Insect_Stop_NWB_Adapter_step_3of11_ap
03

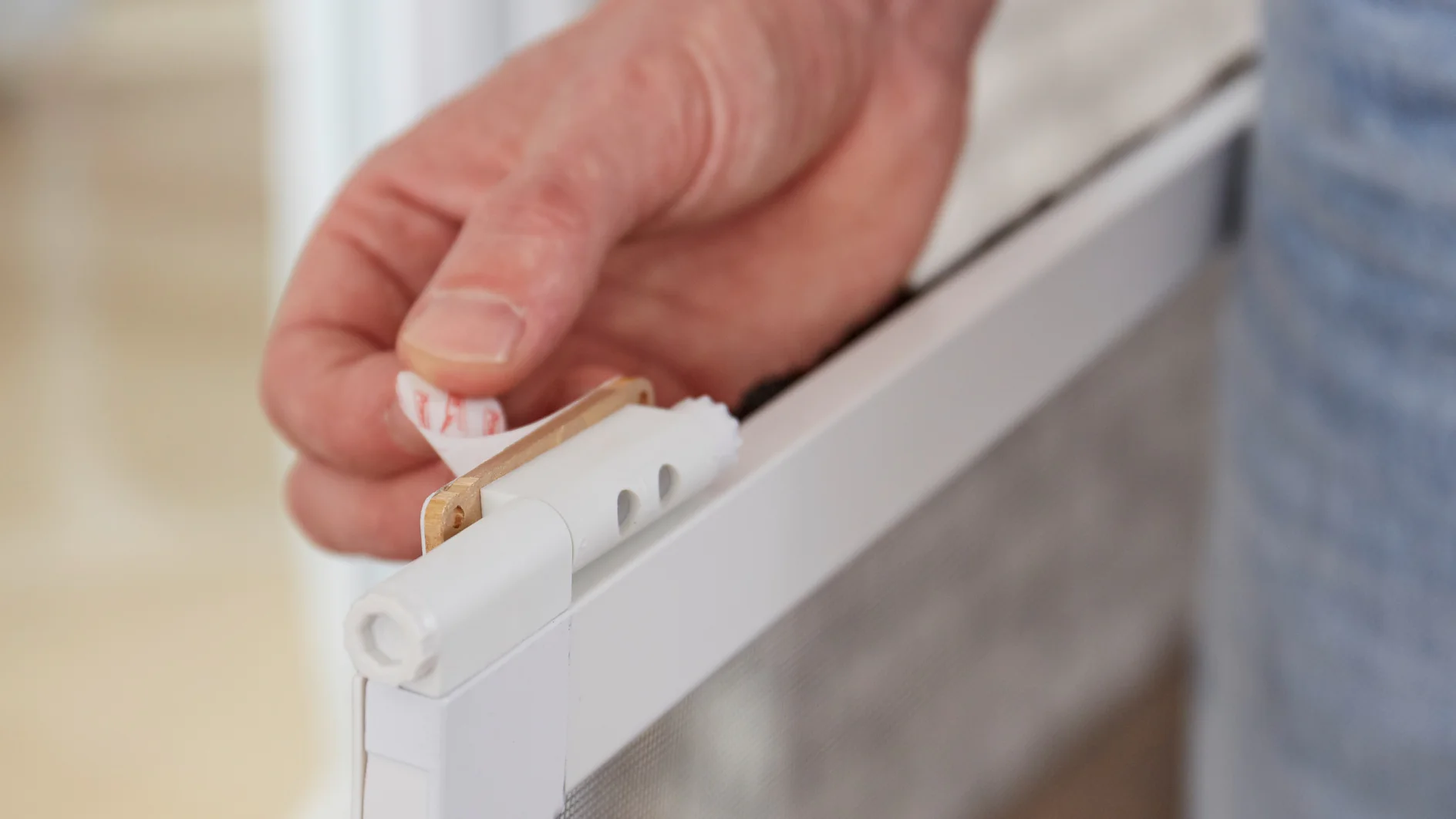

Remove the protective film from the adapter.
tesa_Insect_Stop_NWB_Adapter_step_4of11_ap
04

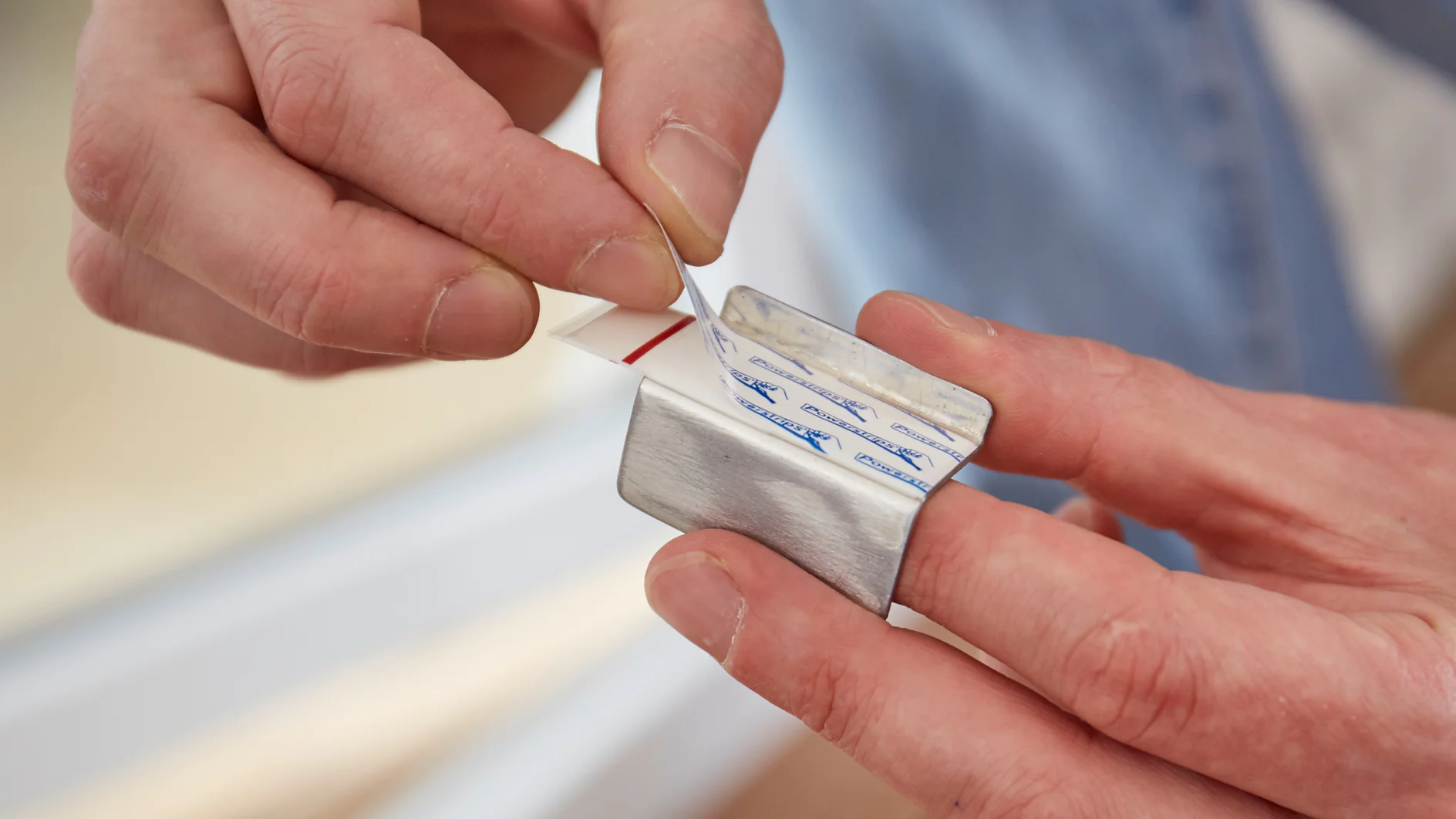

Put a powerstrip onto the mounting brackets and remove the protective film.
tesa_Insect_Stop_NWB_Adapter_step_5of11_ap
05

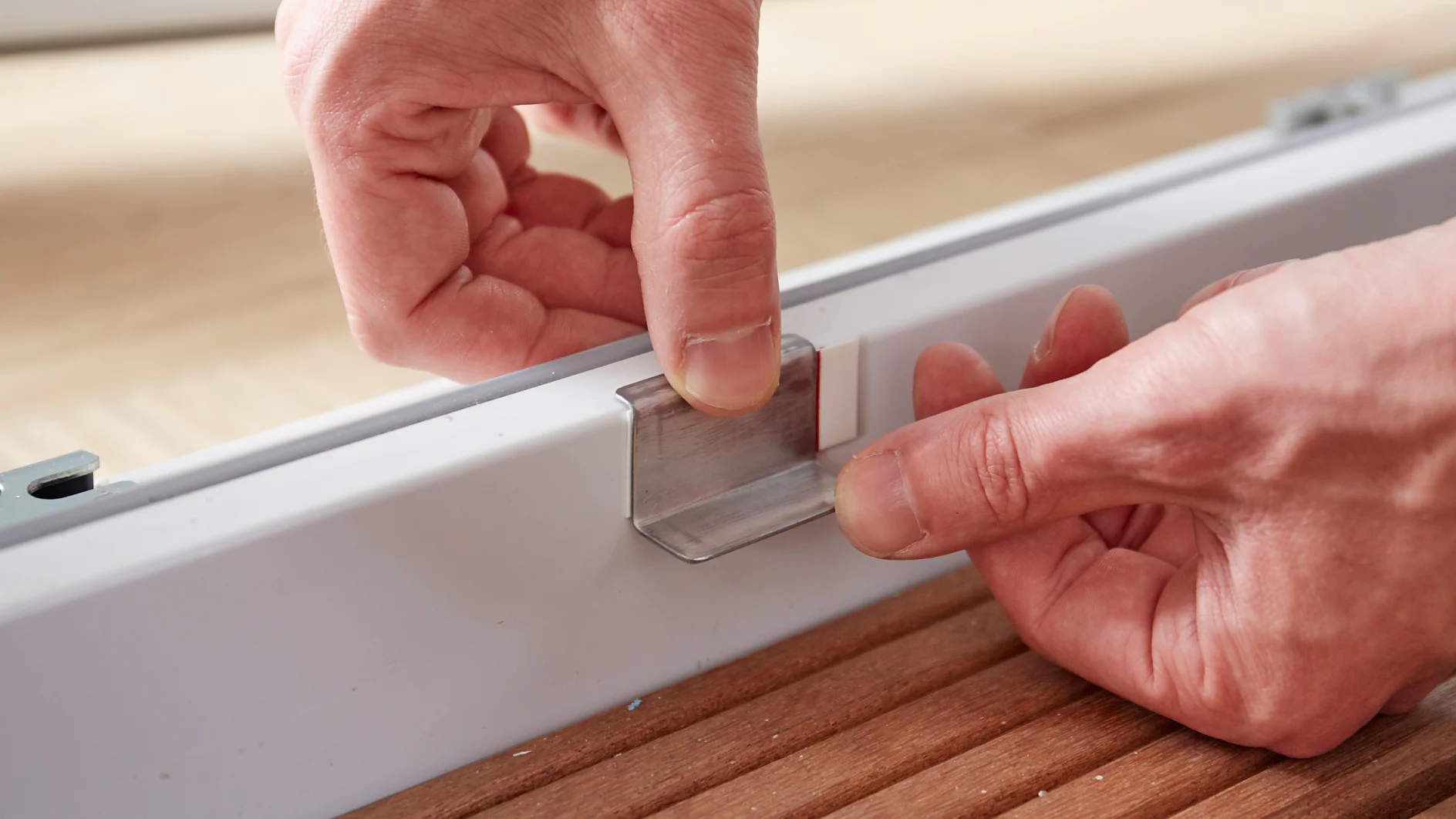

Now place the mounting brackets onto the lower part of the outer door frame.
tesa_Insect_Stop_NWB_Adapter_step_6of11_ap
06

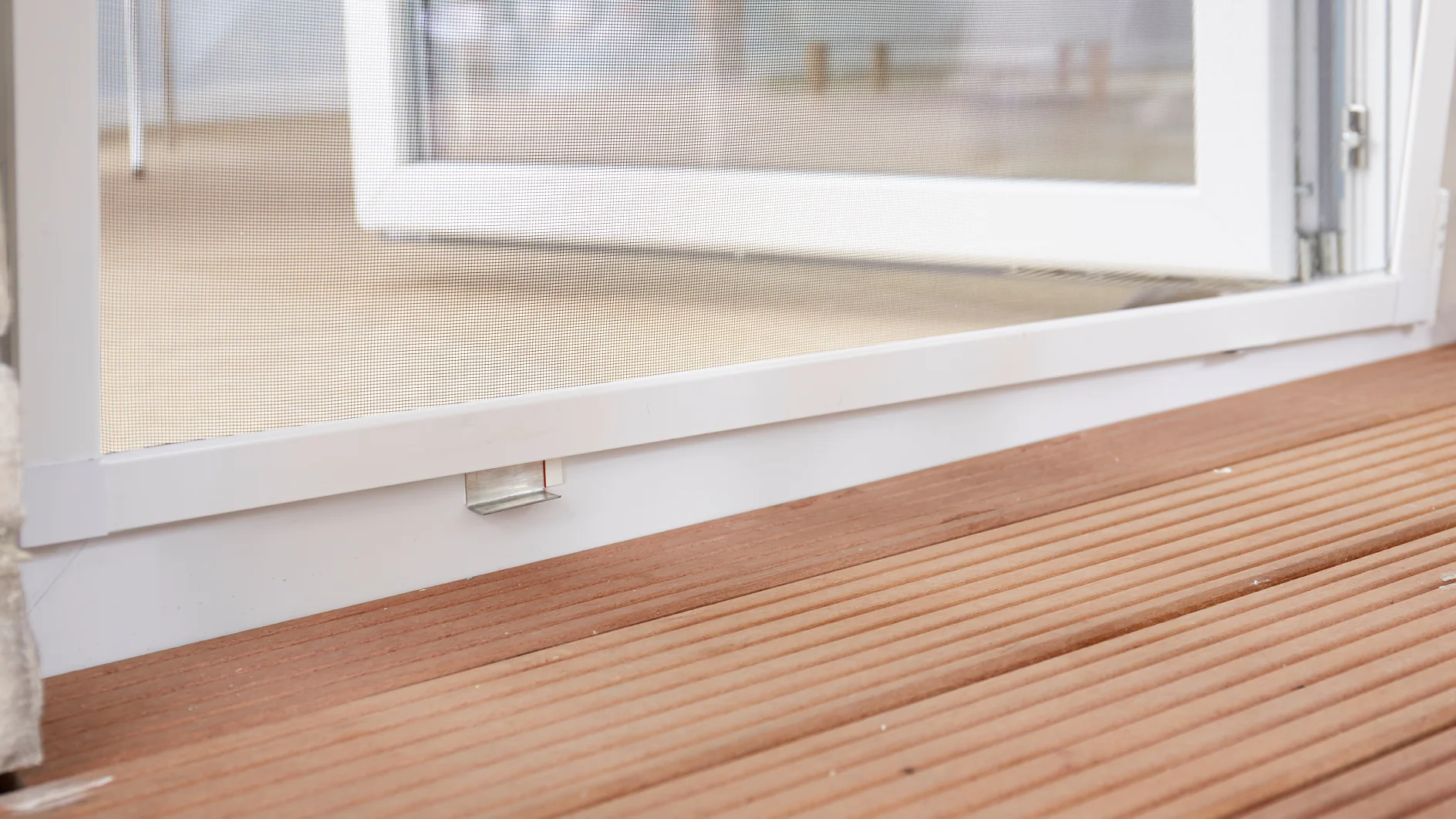

Now the aluminum door can be brought into the right position and for now held in place by the mounting bracket.
tesa_Insect_Stop_NWB_Adapter_step_7of11_ap
07

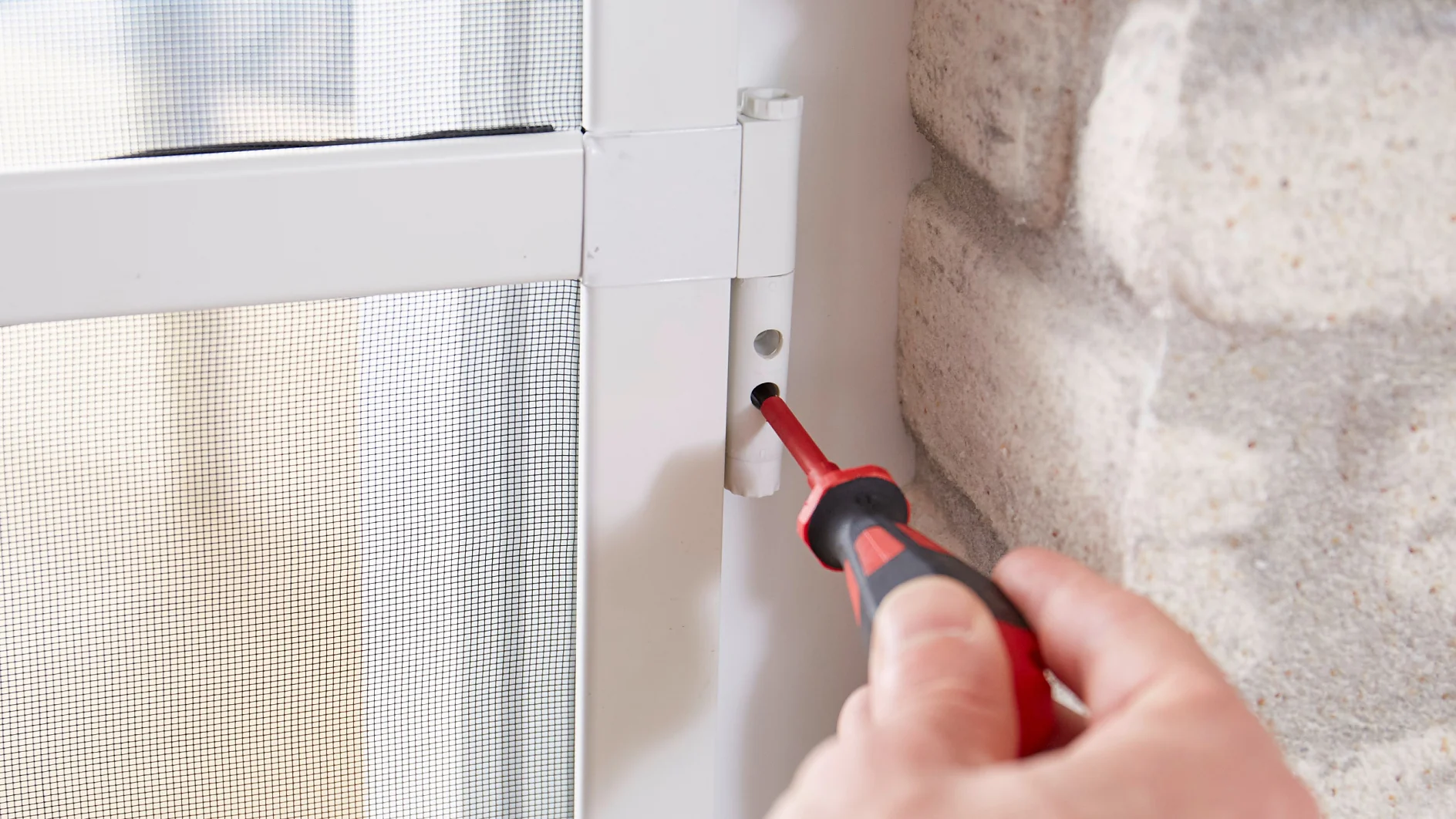

Now loosen the screws from the adapter again and hold together the hinges. This brings the adapter into the right position.
tesa_Insect_Stop_NWB_Adapter_step_8of11_ap
08

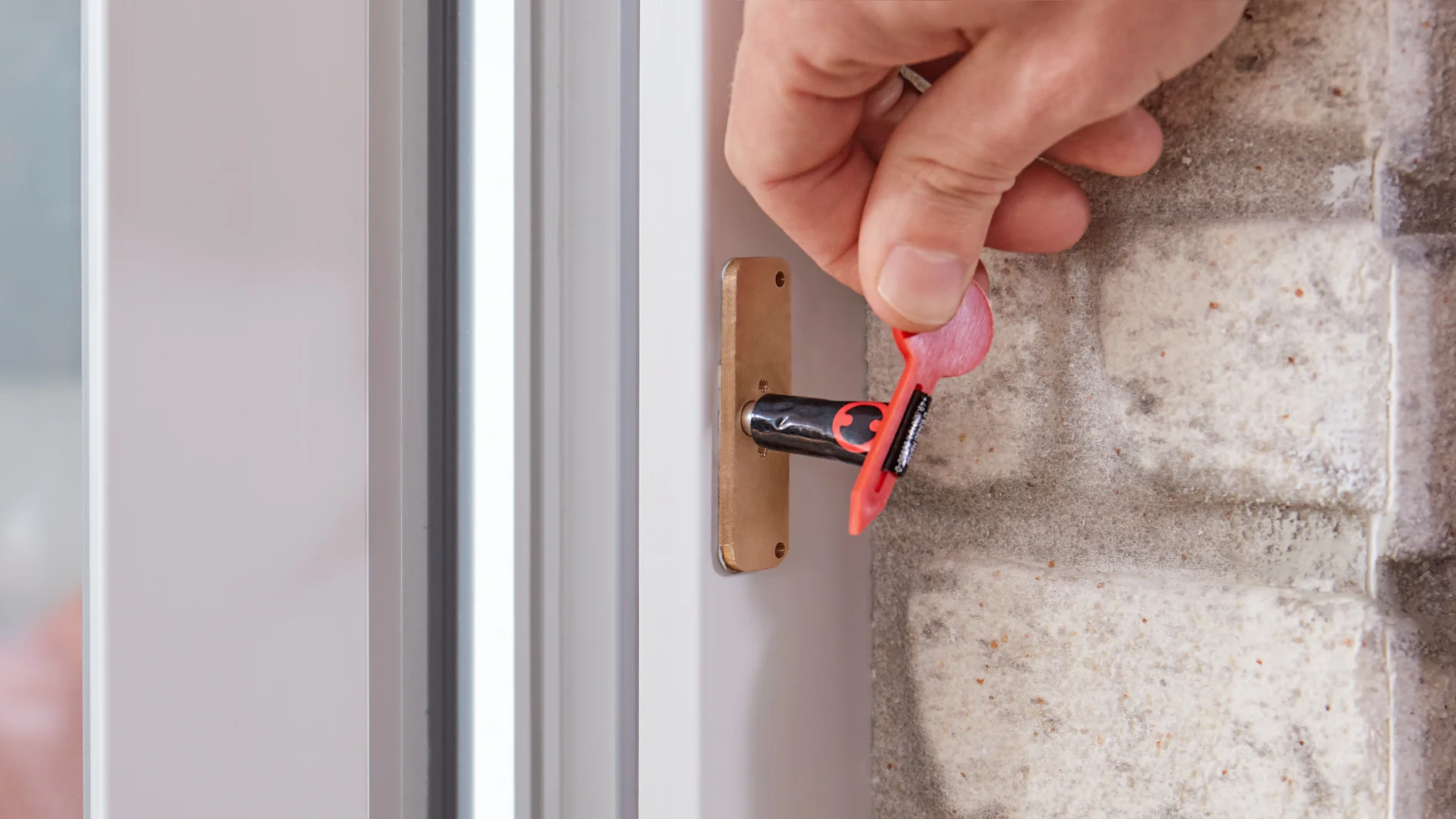

Now open the tube of glue with the tip of the tool and stick the spray nozzle into the larger hole of the base plate. Use the red tool to roll up the tube of glue.
tesa_Insect_Stop_NWB_Adapter_step_9of11_ap
09

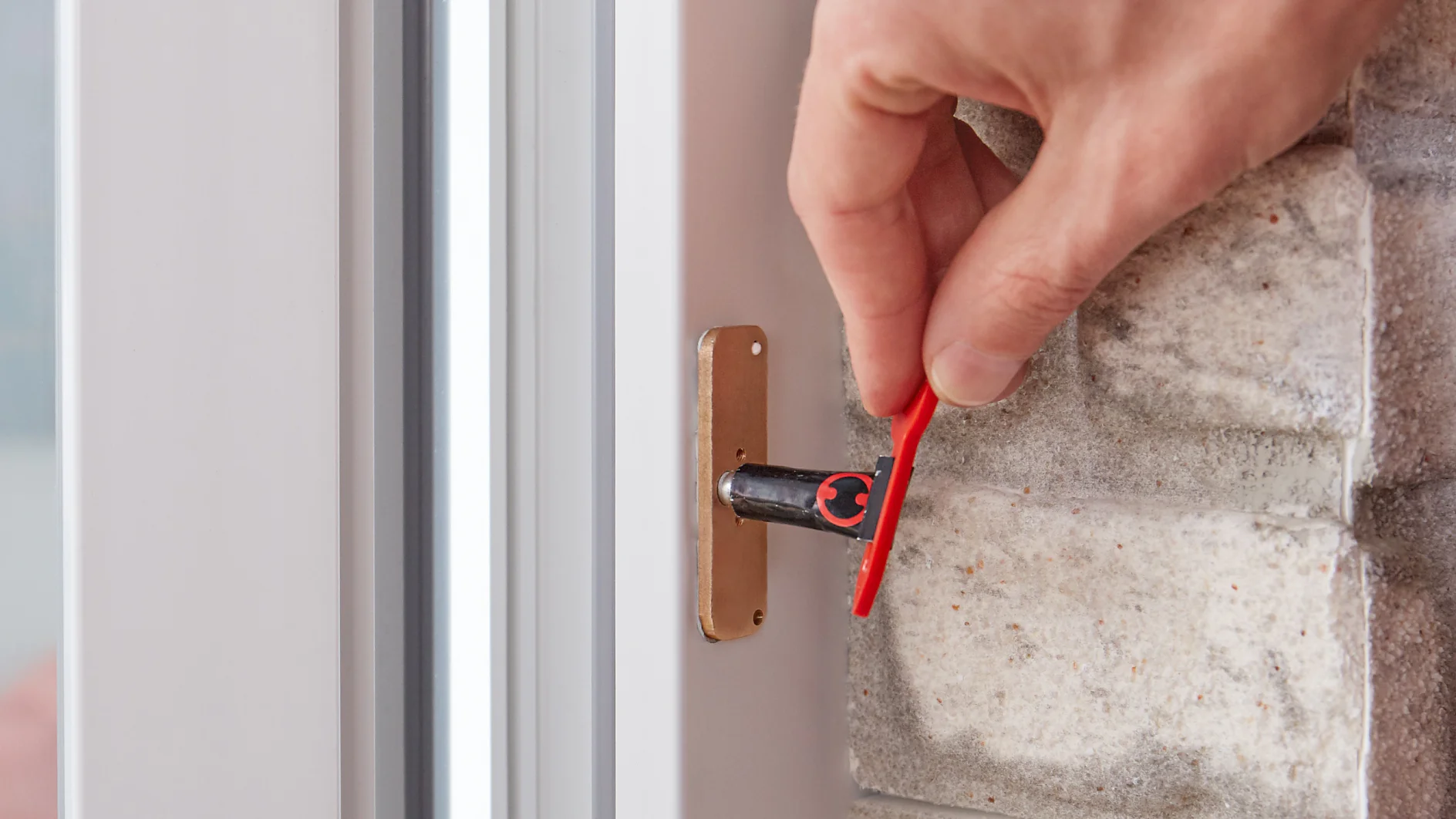

Now turn the red tool and fill the larger hole until the glue exudes from the smaller hole. Allow the glue to harden for 12 hours.
tesa_Insect_Stop_NWB_Adapter_step_10of11_ap
10

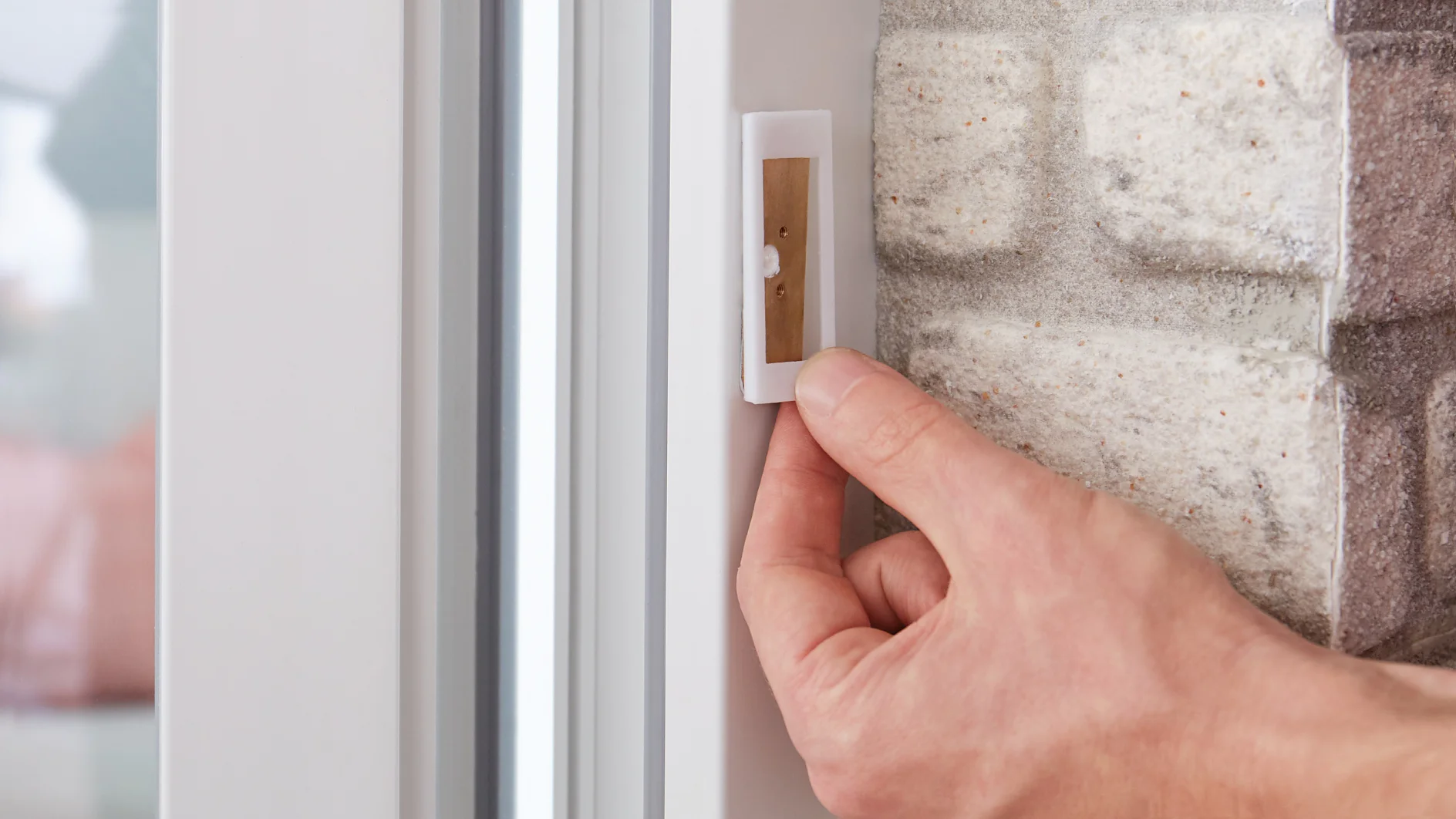

Now place the white adapter on the base plate.
tesa_Insect_Stop_NWB_Adapter_step_11of11_ap
11

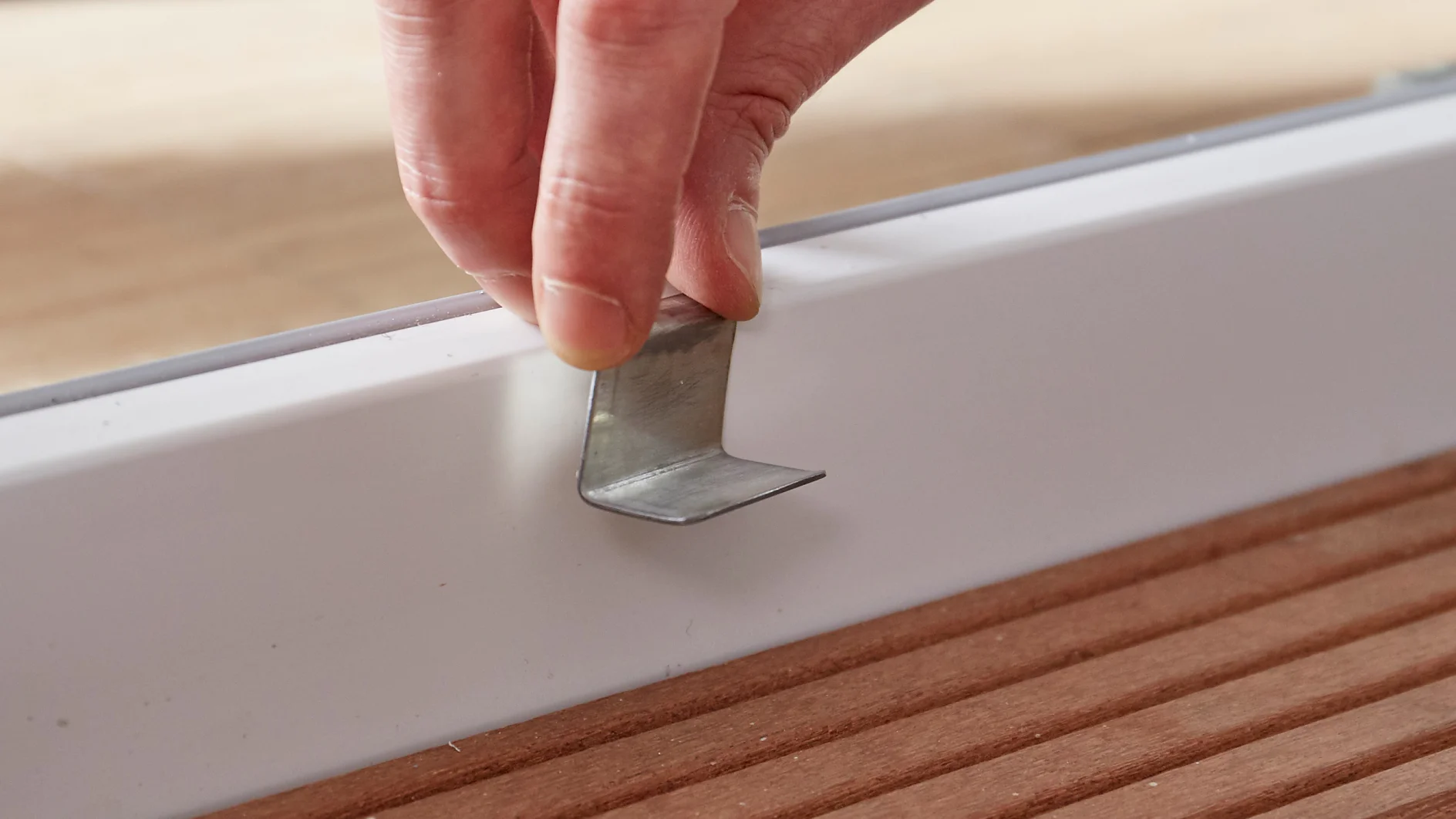

Once you have mounted the aluminum frame, you can remove the mounting bracket.
