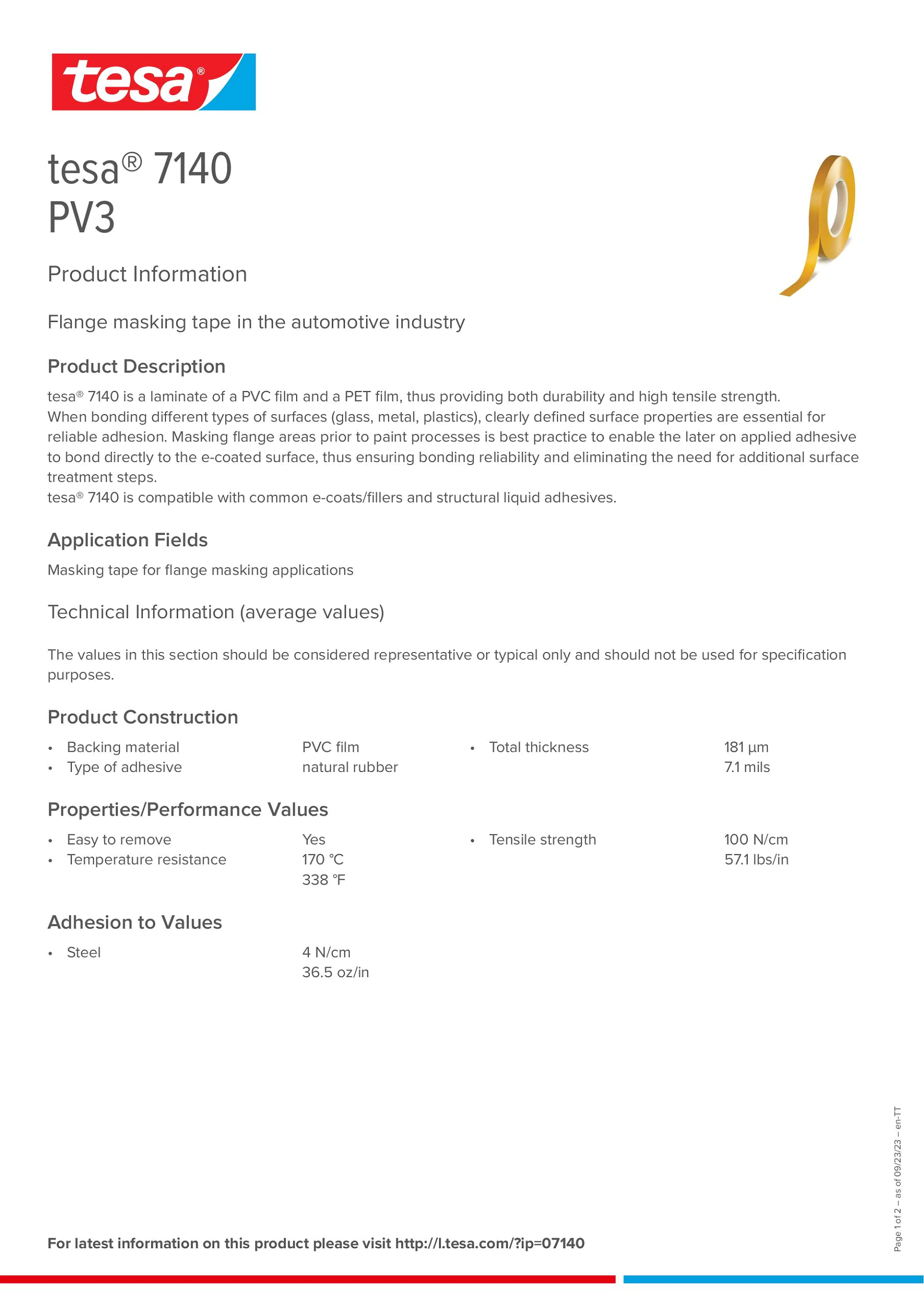

tesa® 7140 PV3
Flange masking tape in the automotive industry
Product description
tesa® 7140 is a laminate of a PVC film and a PET film, thus providing both durability and high tensile strength.
When bonding different types of surfaces (glass, metal, plastics), clearly defined surface properties are essential for reliable adhesion. Masking flange areas prior to paint processes is best practice to enable the later on applied adhesive to bond directly to the e-coated surface, thus ensuring bonding reliability and eliminating the need for additional surface treatment steps.
tesa® 7140 is compatible with common e-coats/fillers and structural liquid adhesives.
When bonding different types of surfaces (glass, metal, plastics), clearly defined surface properties are essential for reliable adhesion. Masking flange areas prior to paint processes is best practice to enable the later on applied adhesive to bond directly to the e-coated surface, thus ensuring bonding reliability and eliminating the need for additional surface treatment steps.
tesa® 7140 is compatible with common e-coats/fillers and structural liquid adhesives.
Application Fields
Masking tape for flange masking applications
Product Construction
| Backing material | PVC film |
| Total thickness | 7.13 mils
181 µm |
| Type of adhesive | natural rubber |
Properties / Performance Values
| Temperature resistance | 338 °F
170 °C |
| Elongation at break | 130 % |
| Tensile strength | 57.1 lbs/in
100 N/cm |
| Easy to remove | Yes |
Adhesion to Values
| Adhesion to Steel | 36.54 oz/in
4 N/cm |
Additional Info
The product design of tesa® 7140 allows for both manual and automatic (robot) application and is also suitable for converting and die-cutting. In case of fully automatic applications the best-before-date of spools is 12 months under recommended storage conditions.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
