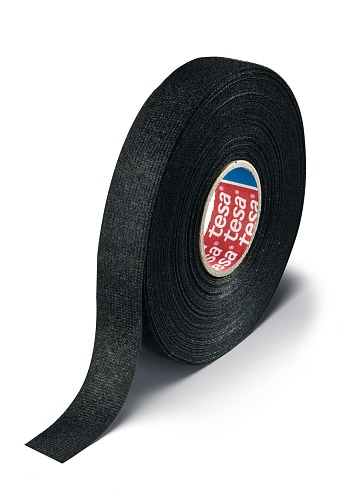

tesa® 51628

PET fleece tape for flexibility and noise damping

Product description

tesa® 51628 is a PET fleece wire harness tape with an acrylic adhesive.

Major Features:
  • Temperature resistant 125°C/257°F per 3000h
  • Noise damping
  • Abrasion resistant
  • Handtearable

Color: Black

Application Fields

tesa® 51628 is designed for the passenger compartment, providing flexibility and noise damping.

Product Construction

Type of adhesive acrylic
Total thickness 10.63 mils
270 µm
Backing material PET fleece

Properties / Performance Values

Elongation at break 20 %
Abrasion resistance (5mm mandrel) Class A (acc. to LV312)
Noise damping (LV312) C
Temperature resistance (3000h) 257 °F
125 °C
Tensile strength 22.84 lbs/in
40 N/cm
Temperature resistance min. -40 °F
-40 °C
Unwind force (roll width ≤ 9mm) 9 N/roll (30 m/min)
Unwind force (roll width > 9mm) 9 N/roll (30 m/min)
Abrasion resistance (10mm mandrel) Class B (acc. to LV312)

Adhesion to Values

Adhesion to steel 31.98 oz/in
3.5 N/cm

Additional Info

Standard widths: 9, 19, 25, 32 mm
Standard lengths: 25 m
  • Most combinations of width and length are possible
  • Further dimensions are available upon request

  • Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
