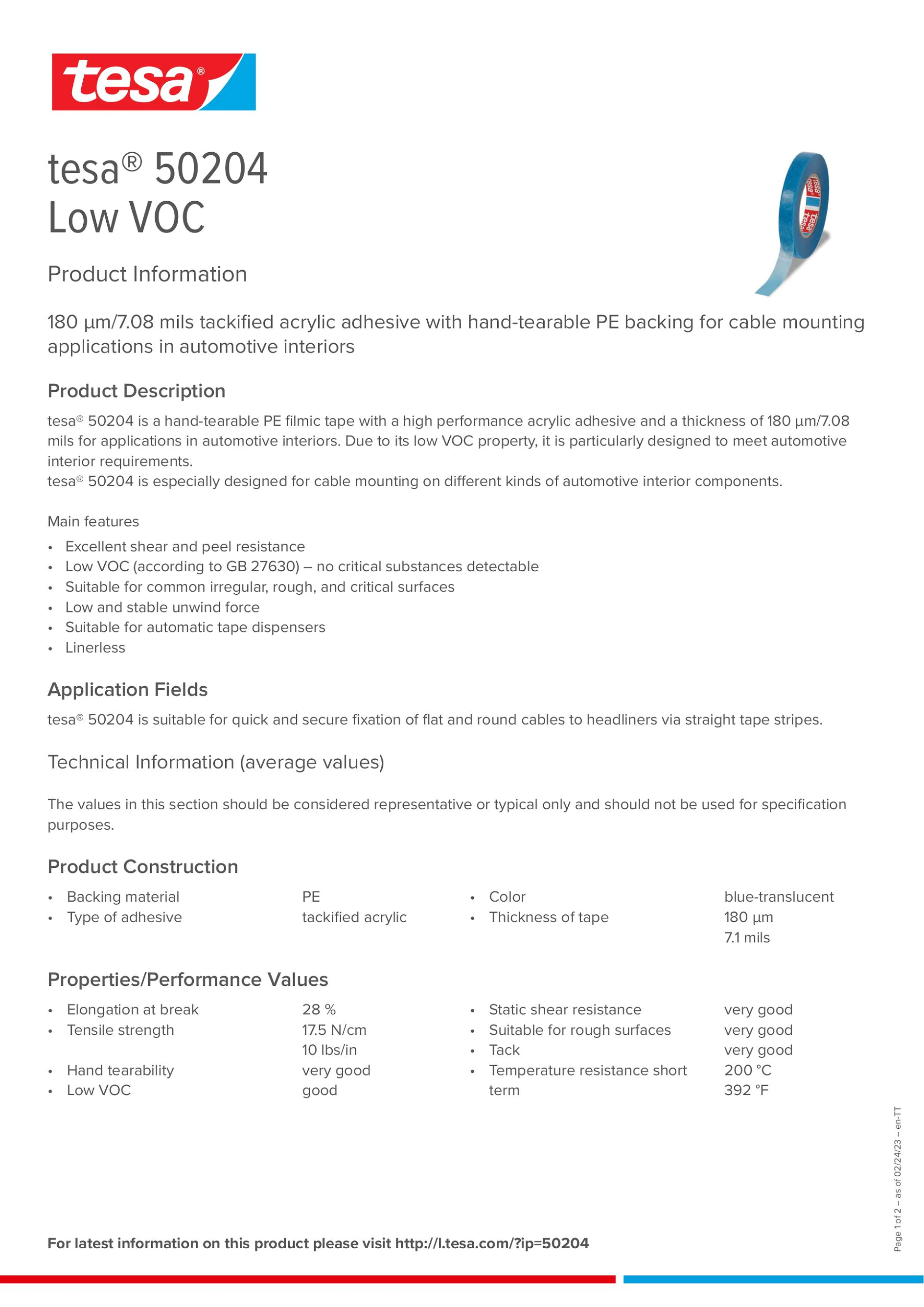

tesa® 50204 Low VOC

180 µm/7.08 mils tackified acrylic adhesive with hand-tearable PE backing for cable mounting applications in automotive interiors

Product description

tesa® 50204 is a hand-tearable PE filmic tape with a high performance acrylic adhesive and a thickness of 180 µm/7.08 mils for applications in automotive interiors. Due to its low VOC property, it is particularly designed to meet automotive interior requirements.
tesa® 50204 is especially designed for cable mounting on different kinds of automotive interior components.

Main features
  • Excellent shear and peel resistance
  • Low VOC (according to GB 27630) – no critical substances detectable
  • Suitable for common irregular, rough, and critical surfaces
  • Low and stable unwind force
  • Suitable for automatic tape dispensers
  • Linerless

Application Fields

tesa® 50204 is suitable for quick and secure fixation of flat and round cables to headliners via straight tape stripes.

Product Construction

Thickness of tape 7.09 mils
180 µm
Type of adhesive tackified acrylic
Backing material PE
Color blue-translucent

Properties / Performance Values

Elongation at break 28 %
Static shear resistance very good
Tack very good
Tensile strength 9.99 lbs/in
17.5 N/cm
Hand tearability very good
Low VOC good
Suitable for rough surfaces very good
Temperature resistance short term 392 °F
200 °C

Adhesion to Values

Adhesion to PET fleece surface (initial) 110.55 oz/in
12.1 N/cm
Adhesion to PET fleece Headliner A (after 3 days) 67.61 oz/in
7.4 N/cm
Adhesion to PET fleece surface (after 3 days) 118.77 oz/in
13 N/cm
Adhesion to PET fleece Headliner A (initial) 71.26 oz/in
7.8 N/cm
Adhesion to PET (initial) 79.49 oz/in
8.7 N/cm
Adhesion to PET (after 3 days) 82.23 oz/in
9 N/cm

Additional Info

tesa’s automation and application department provides customized equipment and self-designed application tools to enhance productivity.

Adhesion values to:
PET
PET fleece surface
PET fleece Headliner A
are not part of the product specification
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
