tesa® 4967 - Team 4965 Thin

160µm/6.3 mils double sided transparent PET tape

  • Extremely high holding power even at elevated temperatures
  • Superior converting performance due to strong PET backing and reduced adhesive mass flow
  • Good bonding performance even to LSE materials

Product description

tesa® 4967, also known as Team 4965 Thin, is a transparent, double-sided self-adhesive tape consisting of a PET backing and a modified acrylic adhesive. It is based on a patented and protected product formulation. Several products are equipped with this unique and high performing product design and together these products make up Team 4965.
This double-sided film tape assortment helps to easily select the most efficient tape based on customer demands, products, and processes. Explore the benefits of the full tesa® 4965 assortment here: https://www.tesa.com/en-us/industry/general-applications/mounting/team-4965-assortment

Application Fields

  • Mounting lenses to mobile phone housings
  • Mounting of ABS plastic parts in the automotive industry
  • Mounting of decorative profiles and moldings in the furniture industry

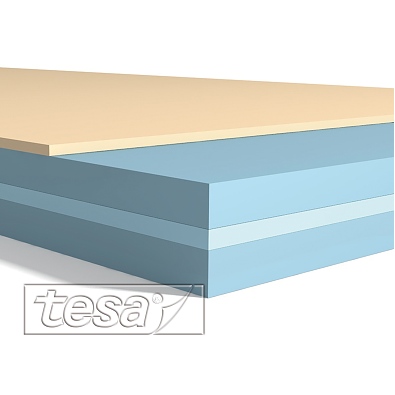

Product Construction

Backing material PET film
Type of adhesive tackified acrylic
Total thickness 6.3 mils
160 µm
Color transparent

Properties / Performance Values

Elongation at break 50 %
Static shear resistance at 23°C good
Chemical resistance good
Humidity resistance very good
Static shear resistance at 40°C good
Temperature resistance long term 212 °F
100 °C
Temperature resistance short term 392 °F
200 °C
Tack good
Tensile strength 11.42 lbs/in
20 N/cm
Ageing resistance (UV) very good
Softener resistance good

Adhesion to Values

Adhesion to Steel (initial) 109.63 oz/in
12 N/cm
Adhesion to PE (initial) 47.51 oz/in
5.2 N/cm
Adhesion to PC (after 14 days) 119.68 oz/in
13.1 N/cm
Adhesion to PS (after 14 days) 101.41 oz/in
11.1 N/cm
Adhesion to ABS (initial) 89.54 oz/in
9.8 N/cm
Adhesion to PP (after 14 days) 63.95 oz/in
7 N/cm
Adhesion to PET (after 14 days) 95.93 oz/in
10.5 N/cm
Adhesion to Aluminium (after 14 days) 111.46 oz/in
12.2 N/cm
Adhesion to PE (after 14 days) 52.08 oz/in
5.7 N/cm
Adhesion to Aluminium (initial) 87.71 oz/in
9.6 N/cm
Adhesion to ABS (after 14 days) 98.67 oz/in
10.8 N/cm
Adhesion to PC (initial) 106.89 oz/in
11.7 N/cm
Adhesion to PVC (initial) 81.31 oz/in
8.9 N/cm
Adhesion to PS (initial) 93.19 oz/in
10.2 N/cm
Adhesion to PET (initial) 84.97 oz/in
9.3 N/cm
Adhesion to PP (initial) 48.42 oz/in
5.3 N/cm
Adhesion to Steel (after 14 days) 122.43 oz/in
13.4 N/cm
Adhesion to PVC (after 14 days) 108.72 oz/in
11.9 N/cm

Additional Info

Liner variants:
  • PV6: red MOPP film (80µm / 3.1 mils; 72g/m²)
According to VDA278 analysis, tesa® 4967 - Team 4965 Thin does not contain any single substances restricted by the drafted GB regulations (China) as well as the indoor concentration guideline by Health, Labour and Welfare Ministry (Japan).
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
