tesa EasySplice® 51465 WinderLine
Repulpable, single-sided splicing tape
Product description

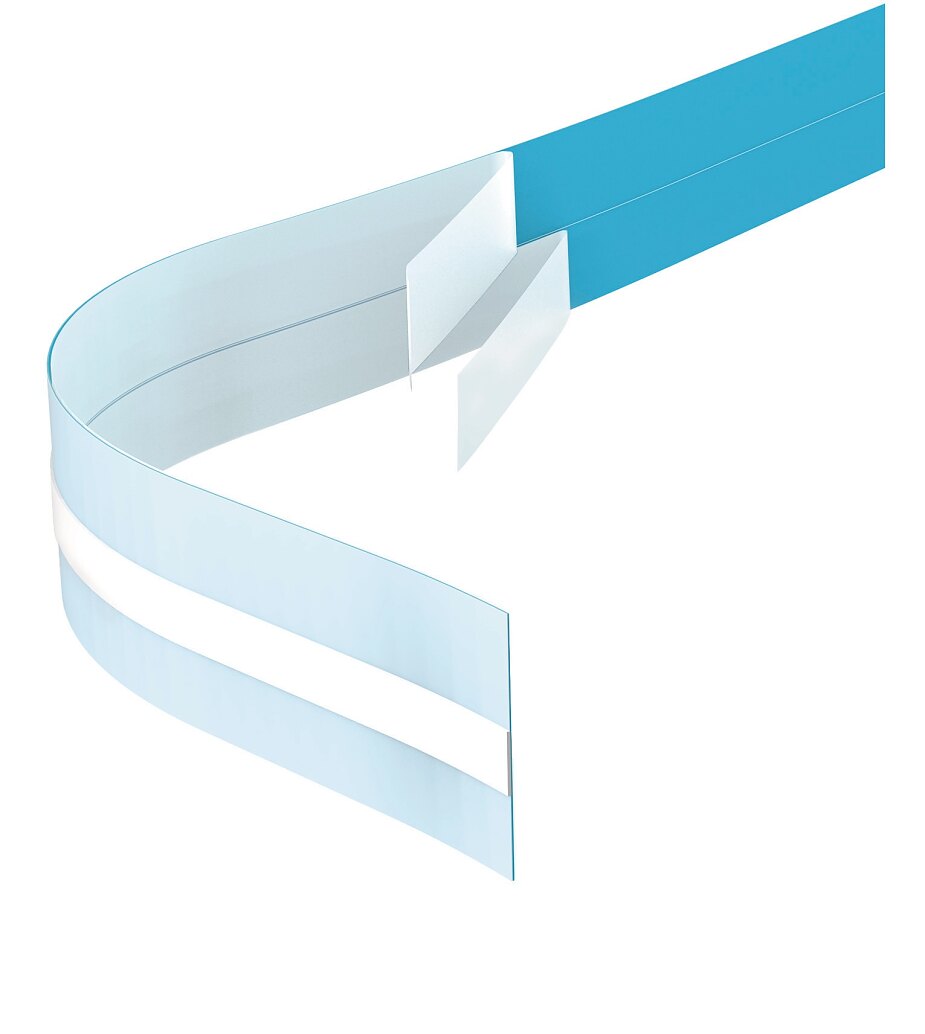

tesa® 51465 EasySplice® WinderLine is a single-sided repulpable splicing tape with liner consisting of a flat-back paper and a modified water soluble acrylic adhesive.
tesa® 51465 EasySplice® WinderLine features especially:
tesa CaRes® 51445 is certified by independent laboratories for:
Following additional functions are provided:
tesa® 51465 EasySplice® WinderLine features especially:
- The patented calcium resistant adhesive (CaRes) for a maximised life time of permanent splices on papers containing calcium carbonate (CaCO3)
- Thin but strong backing to allow a low total splice thickness
- Printable and coatable backing for easy further processing
- Very high shear strength
- Very high heat resistance
- Very good adhesion values on most paper grades
tesa CaRes® 51445 is certified by independent laboratories for:
- Repulpability according to TAPPI UM-213 over full pH-range (pH3 – pH9)
- Resistance against calcium carbonate (CaCO3) according to PTS 302/13
Following additional functions are provided:
- Slit liner for separate fixation of the two paper webs
- One splitting strip with paper backing for easy attachment of the tape on the paper roll
Application Fields
tesa® 51465 EasySplice® WinderLine is particularly suitable for:
- Manual permanent butt-splicing
1 / 2
2 / 2
Zero-speed splicing tesa® 4104, tesa® 4137
Product Construction
| Type of liner | repulpable siliconised paper |
| Backing material | flat paper |
| Type of adhesive | repulpable tackified acrylic |
| Total thickness | 80 µm |
| Color | blue |
Properties / Performance Values
| Elongation at break | 6 % |
| Shelf life time (packed) < 25°C | 12 months |
| Static shear resistance | very good |
| Tack | medium, good |
| Tensile strength | 30 N/cm |
| Temperature resistance | ++ |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
