tesa® 77015 Bond & Detach

150µm double-sided white high shock & high tack stretch release tape

Product description

tesa® 77015 is a stretch release tape with a special stretchable backing equipped with a high shock adhesive.
tesa® 77015 features:
  • Thickness: 150 µm
  • Outstanding shock resistance
  • High tack
  • Very high bonding strength
  • High tear resistance
  • Easy removability by stretching the adhesive
  • The tape can be removed even after a long bonding time
  • Residue free removability
  • IPX8

Application Fields

  • Battery mounting
  • Permanent mounting of components in electronic devices with the option to remove the parts for repairing or recycling
  • Temporary fixation of components

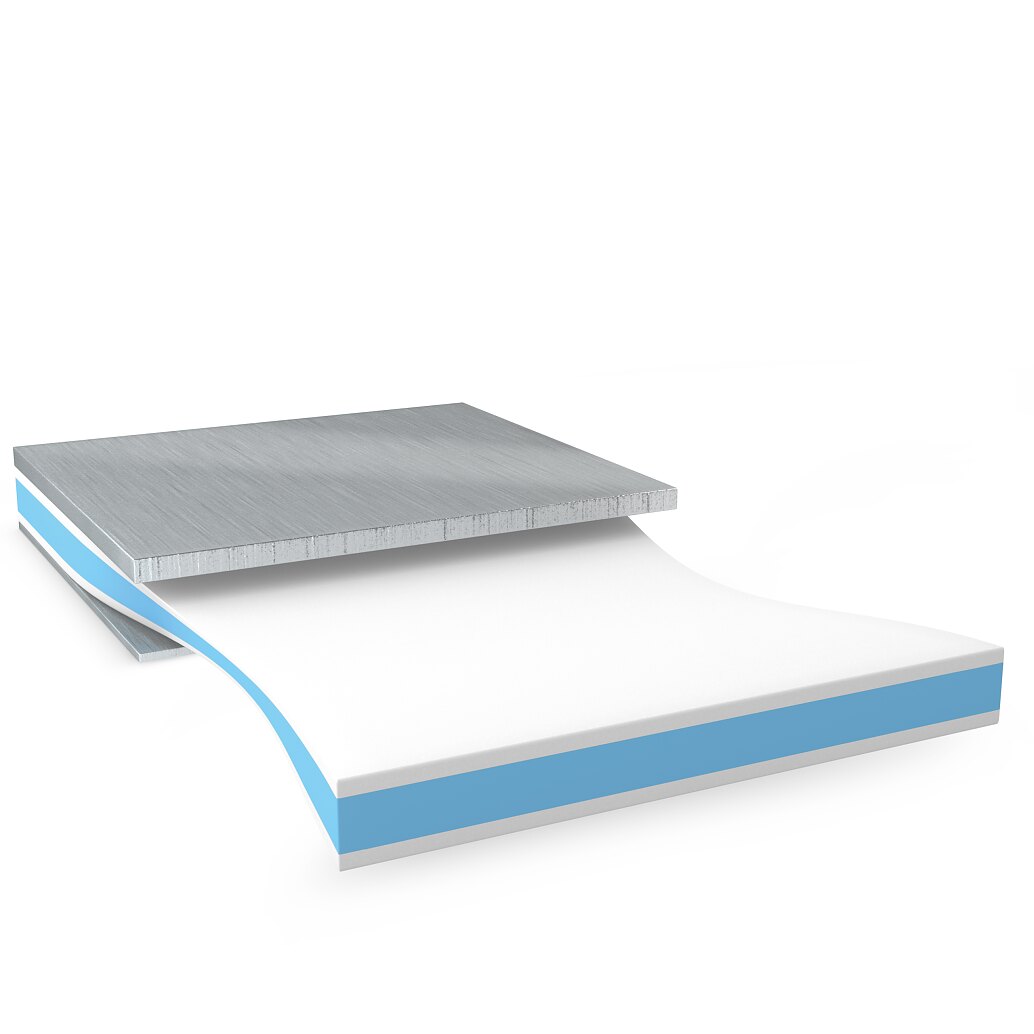

Product Construction

Type of adhesive specialty
Type of liner PET
Colour of liner transparent
Total thickness 150 µm
Backing material stretchable specialty
Color white

Properties / Performance Values

Removability after 14 days (23°C) very good
Static shear resistance at 23°C very good
Static shear resistance at 40°C very good
Residue free removal yes
Temperature resistance long term 60 °C
Temperature resistance short term 90 °C

Adhesion to Values

Adhesion to Steel (initial) 11 N/cm
Adhesion to PE (initial) 7 N/cm
Adhesion to Aluminium (after 14 days) 10 N/cm
Adhesion to Magnesium (initial) 8 N/cm
Adhesion to PE (after 14 days) 8 N/cm
Adhesion to Aluminium (initial) 9 N/cm
Adhesion to Steel (after 14 days) 11 N/cm
Adhesion to Magnesium (after 14 days) 9 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
