tesa® 75745

250µm double-sided white reinforced acrylic foam tape

Product description

tesa® 75745 is a double-sided white tape with PET backing. It is equipped with a novel foamed shock absorbing adhesive.
tesa® 75745 features:
  • Thickness: 250µm
  • Very high shock performance
  • Very high thermal shock resistance
  • Very high bonding strength even on low surface energy materials
  • Good anti-repulsion properties to prevent lifting
  • Good reworkability and die-cut ability
  • Waterproofing

Application Fields

  • Demanding touch panel, lens or screen and rear cover mounting applications with high requirements for impact resistance
  • Mounting of displays
  • Mounting of 3D curved or ultra slim bezel designs
  • Mounting of waterproof designs

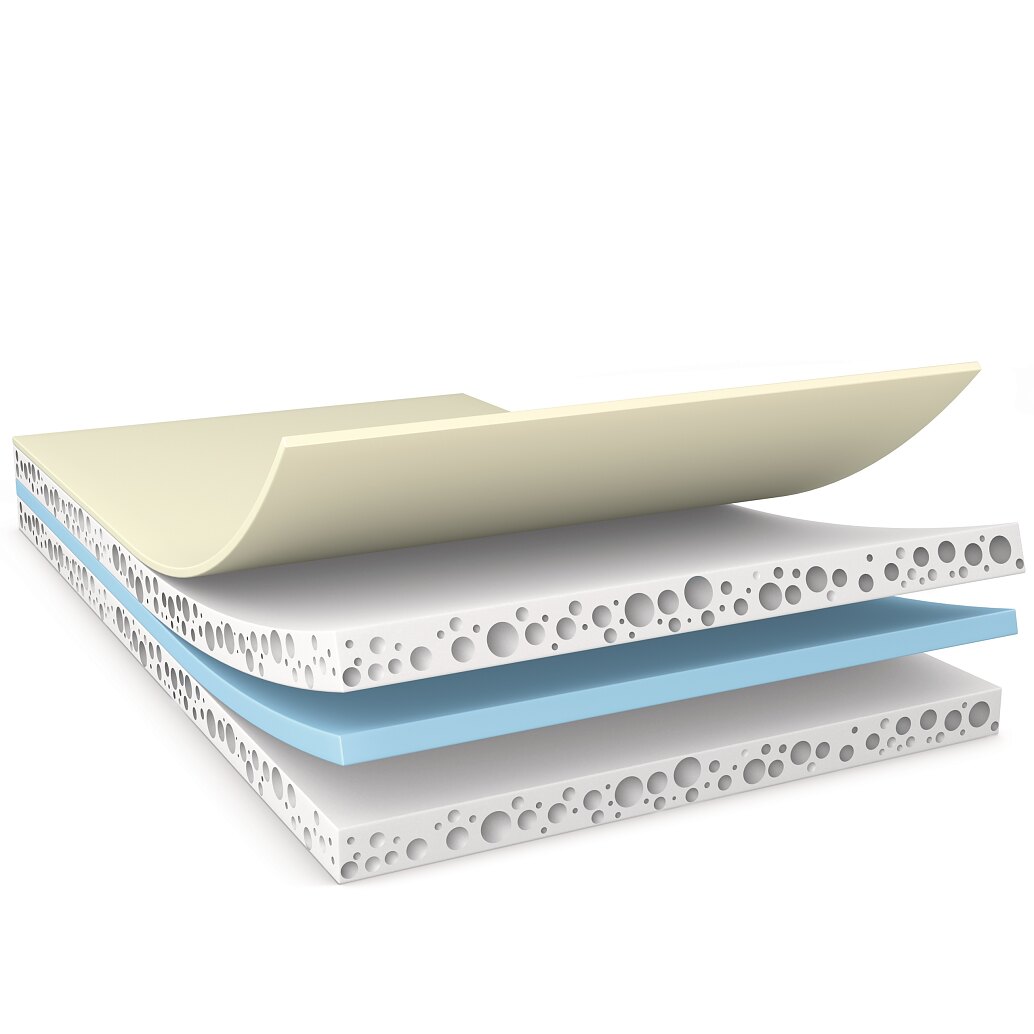

Product Construction

Type of adhesive modified acrylic
Type of liner PET
Colour of liner transparent
Weight of liner 72 g/m²
Total thickness 250 µm
Thickness of liner 50 µm
Backing material PETP
Color white

Properties / Performance Values

Elongation at break 100 %
Static shear resistance at 23°C good
Tensile strength 40 N/cm
Ageing resistance (UV) very good
Static shear resistance at 40°C good
Temperature resistance long term 80 °C
Temperature resistance short term 130 °C

Adhesion to Values

Adhesion to Steel (initial) 14 N/cm
Adhesion to PE (initial) 7.5 N/cm
Adhesion to PC (initial) 12 N/cm
Adhesion to Steel (after 3 days) 15 N/cm
Adhesion to Glass (after 3 days) 13 N/cm
Adhesion to Glass (initial) 12.5 N/cm
Adhesion to PE (after 3 days) 8.5 N/cm
Adhesion to PC (after 3 days) 13.5 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
