tesa® 68000 PV0
Aluminium laminated glasscloth for radiant heat reflection
Product description

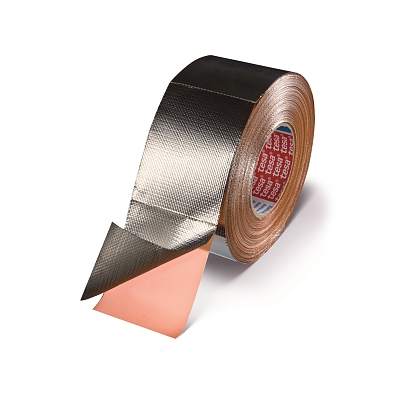

tesa® 68000 PV0 is an aluminium laminated glasscloth with an acrylic adhesive.
Major Features:
Color: Silver
Liner: Silicon
Major Features:
- High temperature resistance 150°C/3000h, 232°C/168h
- Superior radiant heat reflection
Color: Silver
Liner: Silicon
Application Fields
tesa® 68000 PV0 is designed for the engine compartment, providing excellent radiant heat reflection.
Product Construction
| Backing material | aluminium laminated glasscloth |
| Type of adhesive | acrylic |
| Total thickness | 250 µm |
Properties / Performance Values
| Elongation at break | 4 % |
| Tensile strength | 300 N/cm |
| Abrasion resistance (10mm mandrel) | Class A (acc. to LV312) |
| Abrasion resistance (5mm mandrel) | Class A (acc. to LV312) |
| Noise damping (LV312) | B |
| Temperature resistance (3000h) | 150 °C |
Adhesion to Values
| Adhesion to steel | 6 N/cm |
Additional Info
Standard widths: 50, 100, 130 mm
Standard lengths: 50 m
Harness diameter / tesa® width recommendation
< Ø 8 mm / 50 mm +/-3 mm
Ø 8 mm – 22 mm / 100 mm +/-3 mm
Ø 23 mm – 31 mm / 130 mm +/-3 mm
Standard lengths: 50 m
- Most combinations of width and length are possible
- Also available as kiss-cut on request
Harness diameter / tesa® width recommendation
< Ø 8 mm / 50 mm +/-3 mm
Ø 8 mm – 22 mm / 100 mm +/-3 mm
Ø 23 mm – 31 mm / 130 mm +/-3 mm
- Standard core diameter: 76 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
