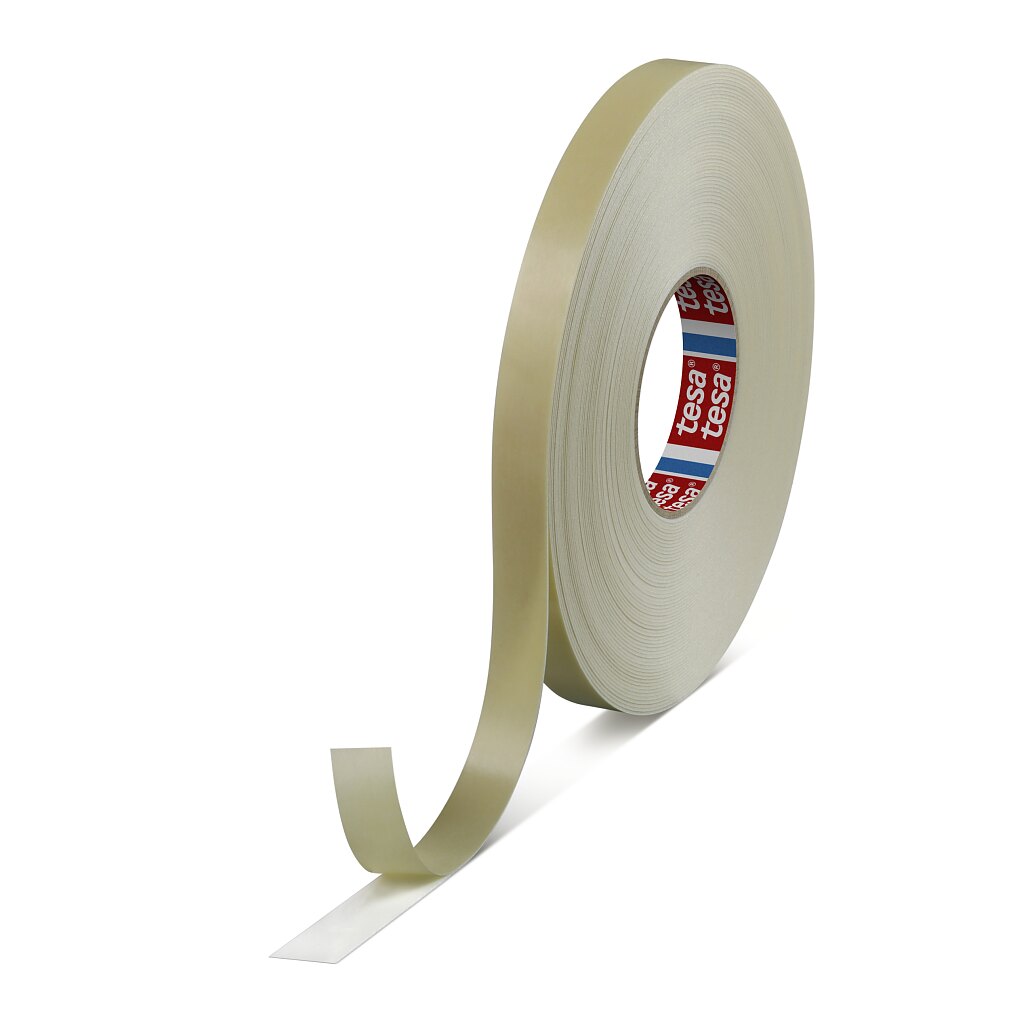

tesa® 64958

Double-sided PE foam mounting tape

Product description

tesa® 64958 is a white double-sided tape for general mounting with a PE-foam backing and a synthetic rubber adhesive.

tesa® 64958 features especially:
  • Highly conformable PE-foam
  • High immediate bonding strength even on rough or uneven surfaces
  • High bonding strength at low mounting pressure
  • High bonding strength on low surface energy substrates

Application Fields

  • Construction of POS-displays
  • Mounting of indoor signs and posters
  • Mounting of shelf edge labelling systems
  • Additional dampening and anti-rattle

Product Construction

Type of liner glassine
Weight of liner 80 g/m²
Backing material PE foam
Type of adhesive synthetic rubber
Colour of liner yellow
Total thickness 1050 µm
Thickness of liner 70 µm
Color white

Properties / Performance Values

Elongation at break 200 %
Chemical resistance medium, good
Humidity resistance good
Static shear resistance at 40°C medium, good
Temperature resistance long term 40 °C
Temperature resistance short term 60 °C
Tack good
Tensile strength 7 N/cm
Ageing resistance (UV) medium, good
Softener resistance medium, good

Adhesion to Values

Adhesion to Steel (initial) 4 N/cm
Adhesion to PE (initial) 4 N/cm
Adhesion to PC (after 14 days) 4 N/cm
Adhesion to PP (after 14 days) 4 N/cm
Adhesion to PET (after 14 days) 4 N/cm
Adhesion to PE (after 14 days) 4 N/cm
Adhesion to PC (initial) 4 N/cm
Adhesion to PVC (initial) 4 N/cm
Adhesion to PET (initial) 4 N/cm
Adhesion to PP (initial) 4 N/cm
Adhesion to Steel (after 14 days) 4 N/cm
Adhesion to PVC (after 14 days) 4 N/cm

Additional Info

Peel Adhesion:
- immediately: foam splitting on Steel, Aluminium, ABS, PC, PS, PET, PVC, PE
- after 14 days: foam splitting on Steel, Aluminium, ABS, PC, PS, PET, PVC, PP, PE
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
