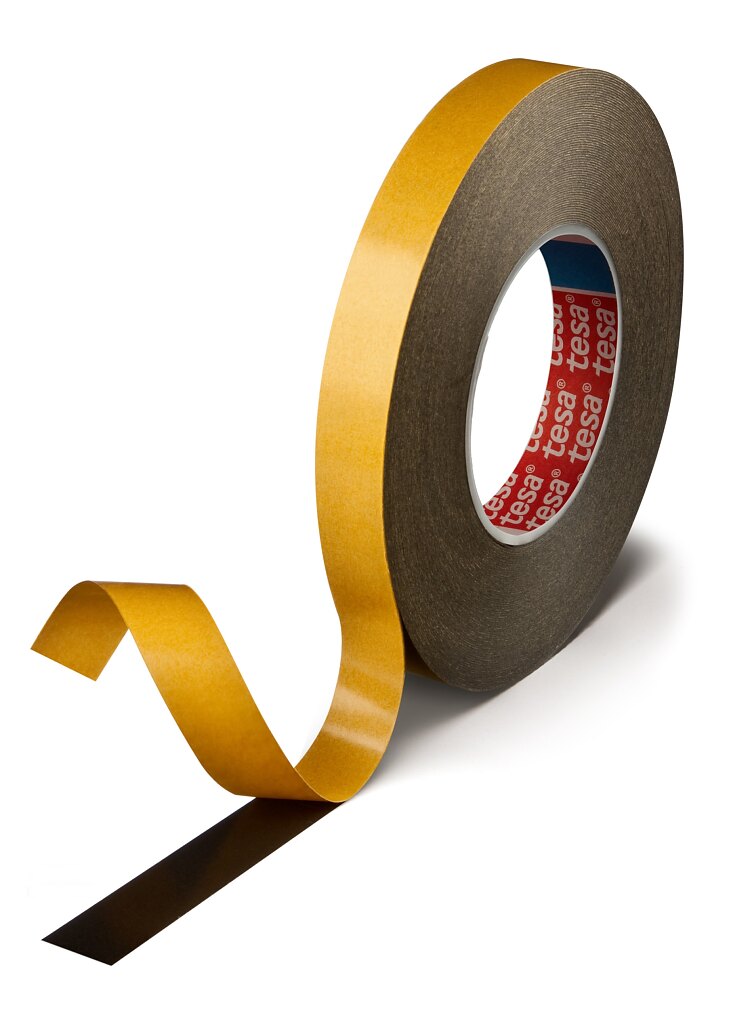

tesa® 62904

Double-sided PE foam tape

Product description

tesa® 62904 is a double-sided tape consisting of a PE foam backing and an acrylic adhesive.
tesa® 62904 features especially:
  • High initial and ultimate adhesive strength for a secure bonding performance

  • Conformable foam backing to compensate design tolerances or uneven surfaces

  • Excellent temperature resistance performance

  • Excellent converting properties

Application Fields

Permanent mounting of emblems, scriptings;
e.g. single letters for classification of car model or engine data.

Product Construction

Type of adhesive acrylic
Total thickness 0.4 mm
Backing material PE foam
Color black

Properties / Performance Values

Elongation at break 350 %
Static shear resistance at 70°C good
Tensile strength 9 N/cm
Static shear resistance at 40°C good
Temperature resistance long term 90 °C
Temperature resistance short term 100 °C

Adhesion to Values

Adhesion to Steel (initial) 15 N/cm
Adhesion to PC (after 14 days) 21 N/cm
Adhesion to Steel (initial) 15 N/cm
Adhesion to ABS (initial) 6 N/cm
Adhesion to ABS (after 14 days) 21 N/cm
Adhesion to Steel (after 14 days) 21 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
