tesa® 61332
tesa® 61332 double-sided self-adhesive tape
- Thickness: 200µm
- Very good bonding strength
- Superior push-out resistance
- Easy handling and process performance due to very strong PET backing
- White color for easy detection or design purposes
Product description
tesa® 61332 is a double sided self-adhesive tape consisting of a white PET film backing and a tackified acrylic adhesive.
Special features:
Special features:
- Thickness: 200µm
- Very good bonding strength
- Superior push-out resistance
- Easy handling and process performance due to very strong PET backing
- White color for easy detection or design purposes
Application Fields
- Component mounting
- Gasket mounting
- Foam lamination

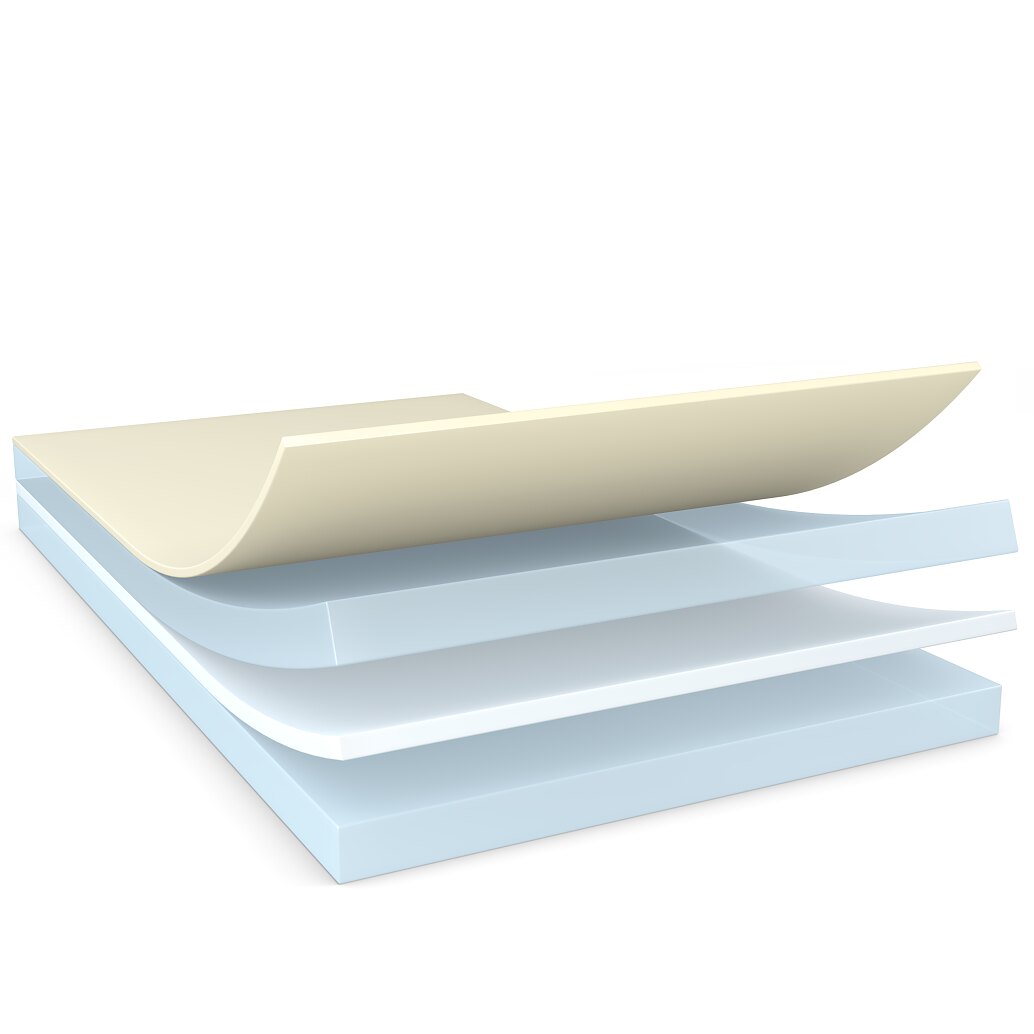

Product Construction
| Type of adhesive | tackified acrylic |
| Type of liner | glassine |
| Colour of liner | white/red logo |
| Weight of liner | 80 g/m² |
| Total thickness | 200 µm |
| Thickness of liner | 71 µm |
| Backing material | PET film |
| Color | white |
Properties / Performance Values
| Elongation at break | 80 % |
| Humidity resistance | very good |
| Tack | low |
| Tensile strength | 130 N/cm |
| Ageing resistance (UV) | very good |
| Static shear resistance at 40°C | very good |
Adhesion to Values
| Adhesion to Steel (initial) | 17.8 N/cm |
| Adhesion to PC (after 14 days) | 18.4 N/cm |
| Adhesion to PC (initial) | 14 N/cm |
| Adhesion to Glass (after 14 days) | 17.3 N/cm |
| Adhesion to Glass (initial) | 16.1 N/cm |
| Adhesion to Steel (after 14 days) | 19.8 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
