tesa® 60652
Product description

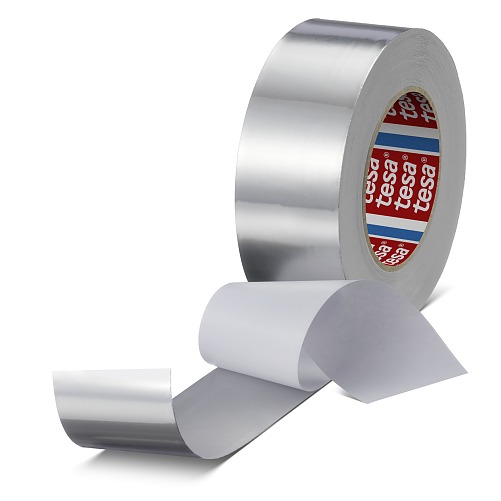

tesa® 60652 is an aluminum tape based on a 50 µm (2 mil) aluminum foil, a transparent acrylic adhesive and a white, single-sided siliconized, 85µm thick paper liner
Features:
Features:
- Mechanical stable and conformable
- Easily removable liner
- Suitable for permanent applications
- Barrier against moisture, gases and vapors
- Electrically and thermally conductive
- Aging resistant
- Heat and light refletive
- Flame retardant according to DIN 4102, clas B1
- Flame retardant according to the requirements in UL510A
- Meets requirements of UL723
1 / 2
2 / 2
Product Construction
Elongation at break | 6 % |
Type of adhesive | acrylic |
Release of liner | easy |
backing appearance(visual) | reflective |
Tensile strength | 40 N/cm |
Total thickness | 90 µm |
Thickness of liner | 85 µm |
Backing material | aluminium foil |
Properties / Performance Values
Temperature resistance min. | -40 °C |
Operation temperature up to | 160 °C |
Suitable for die cutting | Yes |
Operation temperature from | -40 °C |
Adhesion to Values
Adhesion to PE (initial) | 4.5 N/cm |
Adhesion to PVC (initial) | 6 N/cm |
Adhesion to Glass (initial) | 9 N/cm |
Adhesion to steel | 9 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
