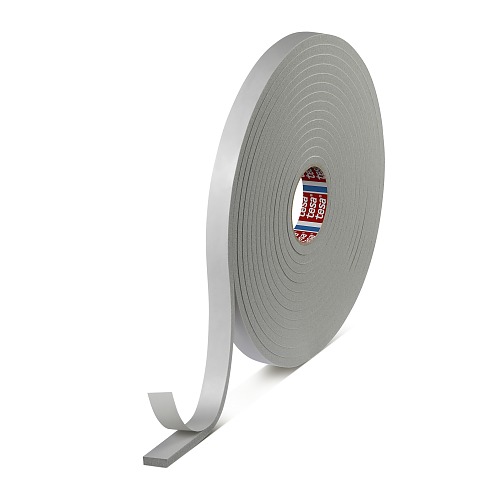

tesa® 60009

Super soft PVC closed cell single sided foam tape 9.5mm thick (grey)

Product description

tesa 60009 is a 9.5mm thick super soft grade closed cell PVC foam tape with an acrylic adhesive on one side. The closed cell foam can create a water proof barrier when compressed, while the super soft grade foam construction remains extremely flexible and conformable to allow easy sealing of uneven surfaces. After long periods of compression, the foam will recover to its original state. tesa 600 Series foam tape is also resistant to fungi, oxidation and UV, making it suitable in tough conditions. tesa 600 Series foam tape is available in 3.2mm, 6.4mm, 9.5mm and 12.7mm thicknesses in the colour grey.

Application Fields

tesa 600 Series foam tape is ideal for use in recreational vehicles such as caravans and campervans, concreting and the construction of portable buildings, where uneven surfaces including corrugated sheeting require sealing.

Application ideas:
  • Sealing caravan panels
  • Dam wall sealing in concreting
  • Sealing panels on portable buildings
  • Sealing profiled and corrugated panels and cladding
  • Sealing around stainless steel sinks and hatchery doors

Product Construction

Type of adhesive acrylic
Total thickness 9500 µm
Backing material PVC foam

Properties / Performance Values

Elongation at break 140 %
Flame retardance low
Chemical resistance good
Compression set 5 %
Temperature resistance max. 80 °C
Temperature resistance min. -40 °C
Suitable for die cutting Yes
Hardness - Shore 00 20 STK
Tensile strength cm2 15 N/cm²
Water resistance good

Adhesion to Values

Adhesion to steel 2.8 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
