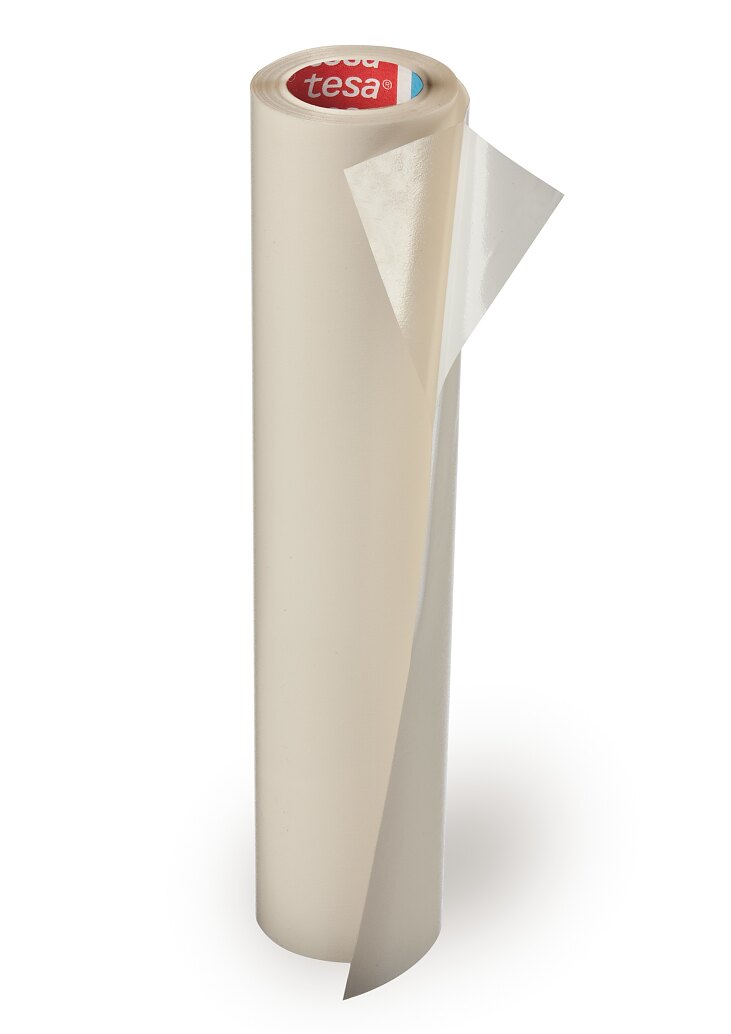

tesa® 52310 PV7
100µm Filmic tape
Product description
tesa® 52310 PV7 is a 100µm thick filmic double sided tape specially suitable for compressible sleeves and thin plates (.045" or 1,14mm) in flexographic printing.
The unique properties of tesa® 52310 PV7 1000µm make it the ideal choice for high quality printing, easier demounting of plates without damaging them and clean removal from the sleeves without leaving residues.
Adhesive properties
• Secure bonding to sleeve, with specially enhanced removal properties allowing easy demounting of the plate
• Specially enhanced removal properties of the tape allowing the tape to be removed without leaving residues.
Additional properties
• The structured PP-liner prevents the formation of air pockets during plate mounting
The unique properties of tesa® 52310 PV7 1000µm make it the ideal choice for high quality printing, easier demounting of plates without damaging them and clean removal from the sleeves without leaving residues.
Adhesive properties
• Secure bonding to sleeve, with specially enhanced removal properties allowing easy demounting of the plate
• Specially enhanced removal properties of the tape allowing the tape to be removed without leaving residues.
Additional properties
• The structured PP-liner prevents the formation of air pockets during plate mounting
Application Fields
The mounting of thin flexographic printing plates (
Product Construction
Type of adhesive | natural rubber |
Type of liner | PP |
Backing material | PVC film |
Properties / Performance Values
Thickness category | 100 |
Additional Info
52310 PV7 has been designed for the mounting of thin flexographic printing plates on compressible sleeves allowing easier demounting of the plates and residue free removal.
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
