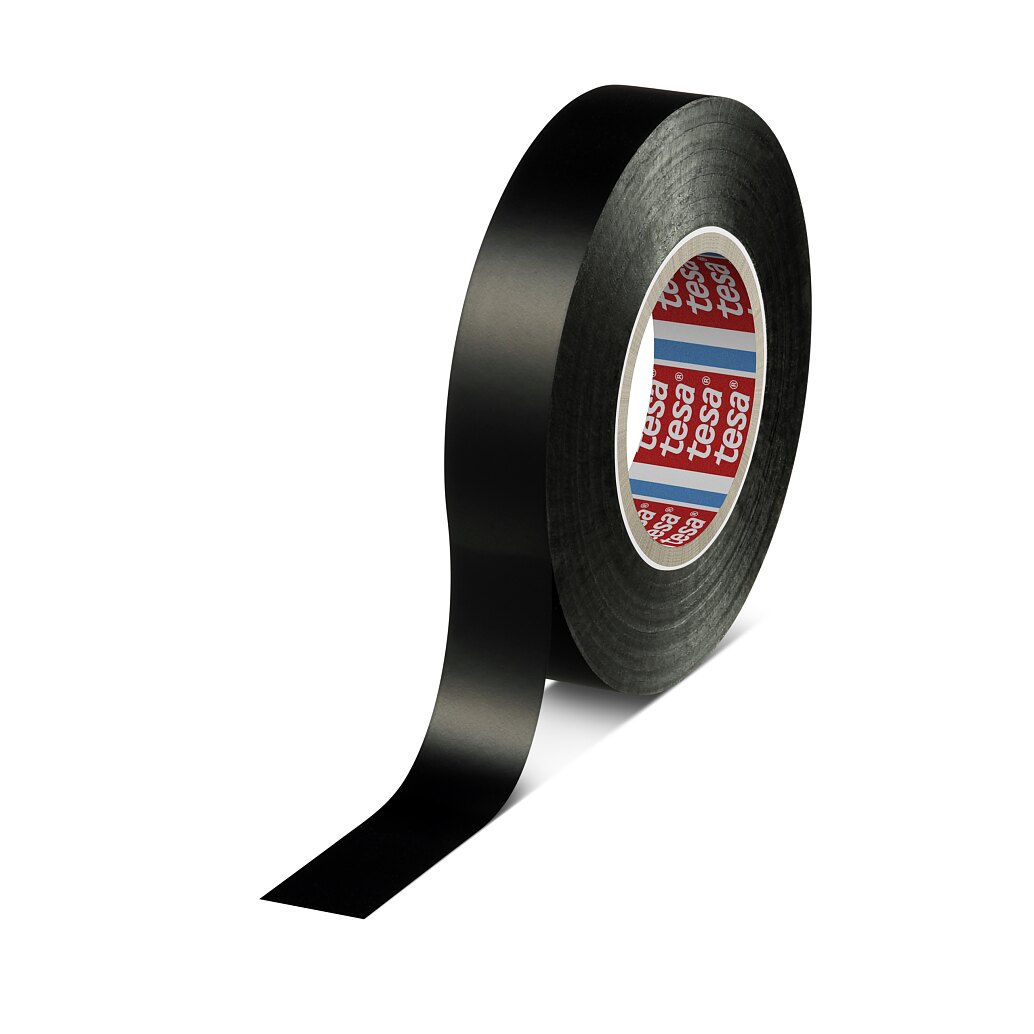

tesa® 4182 PV2

Soft PVC film tape for standard wrapping

Product description

tesa® 4182 PV2 is a PVC film wire harness tape with an acrylic adhesive.

Major Features:
  • Temperature resistance 105°C/3000h
  • Flexible
  • Handtearable

Color: Black

Application Fields

tesa® 4182 PV2 is designed for the passenger compartment for standard wrapping up to a temperature class of 105°C.

Product Construction

Type of adhesive acrylic
Total thickness 104 µm
Backing material PVC film

Properties / Performance Values

Elongation at break 250 %
Abrasion resistance (5mm mandrel) Class A (acc. to LV312)
Noise damping (LV312) A
Temperature resistance (3000h) 105 °C
Tensile strength 25 N/cm
Temperature resistance min. -25 °C
Unwind force (roll width ≤ 9mm) 7.5 N/roll (30 m/min)
Unwind force (roll width > 9mm) 7.5 N/roll (30 m/min)
Abrasion resistance (10mm mandrel) Class A (acc. to LV312)

Adhesion to Values

Adhesion to steel 1.8 N/cm

Additional Info

Standard widths: 9, 19, 25, 32 mm
Standard lengths: 33 m
  • Most combinations of width and length are possible
  • Further dimensions are available upon request

  • Standard core diameter: 38 mm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
