Reliable mounting in eletric vehicle battery applications

The design of battery modules and battery packs is driven by safety, reliability, and cost – with weight and space constraints as limiting factors. Our mounting and lamination solutions enable OEM and OES customers worldwide to meet their design and budget targets.

Our solutions range from highly shear resistant PET tapes to counter mechanical stress to non-woven tapes optimized for high-speed processing of filmic materials such as flexible printed circuits. For added protection against fire, we also offer a range of flame retardant mounting solutions.

Let’s work together to find out which solution fits best for your application.

Our adhesive tape solutions represent:

Excellent adhesion to polar substrates (steel, aluminum, PA/PI/PET)
Reliable mounting performance over the whole vehicle lifetime
Good die-cutting ability for converting processes
Excellent dielectric breakdown resistance
Clean of fibers acc. to VDA19
Flame retardancy according to UL-94

Discover how we help you to securely mount parts inside the battery

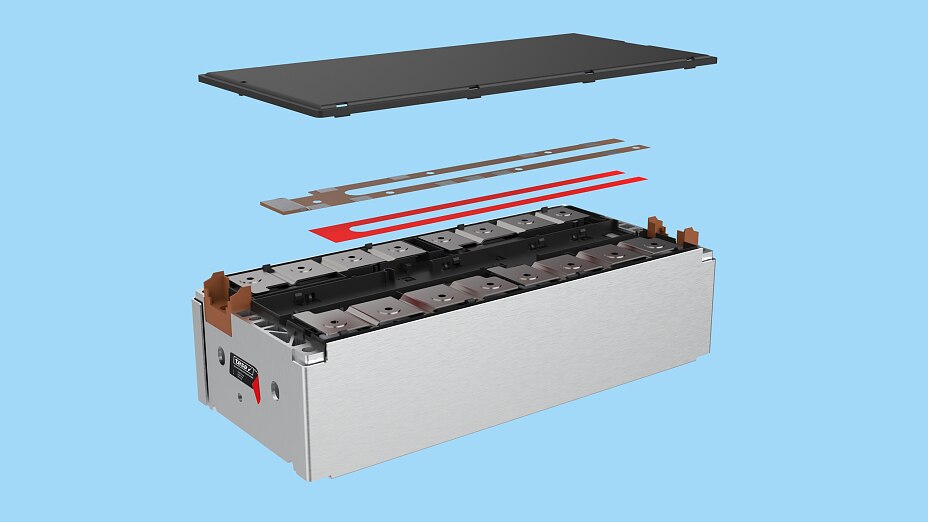

FPC mounting

Mounting of flexible printed circuit plates (FPC) as a connector between battery cells and the battery management system (BMS). Save space, costs and processing time during assembly compared to traditional wire connections.

PI heating plate mounting

Mounting of ceramic-printed polyimide (PI) films for use as heating plates. Such plates are part of the thermal management concept. Save space by using this thin filmic material to heat your battery while reducing processing time through a simple lamination process.

Cell to cell mounting

Mounting of battery cells to form the battery cell stack. In conventional designs, the tape could just be a processing aid – in cell-to-pack designs, the tape may serve as a structural part of the construction. Our adhesive solutions do not require any curing and save time and costs in your assembly process.

Pouch cell to insulation material mounting

Barrier material mounting

Mounting of barrier materials such as mica or polycarbonate (PC) in between battery cells. Mica/PC are typical materials used to protect the cells against dielectric breakdown. Outsource part of the process to your suppliers by sourcing a barrier material laminated with adhesive – save processing time and costs by streamlining the assembly of your parts.

Frame mounting

Mounting of module frames and other parts to the cell stack. Found both in module designs and cell-to-pack designs. Our adhesive solutions do not require any curing – save time and cost in your assembly process.

Cell to pack design
