Product information

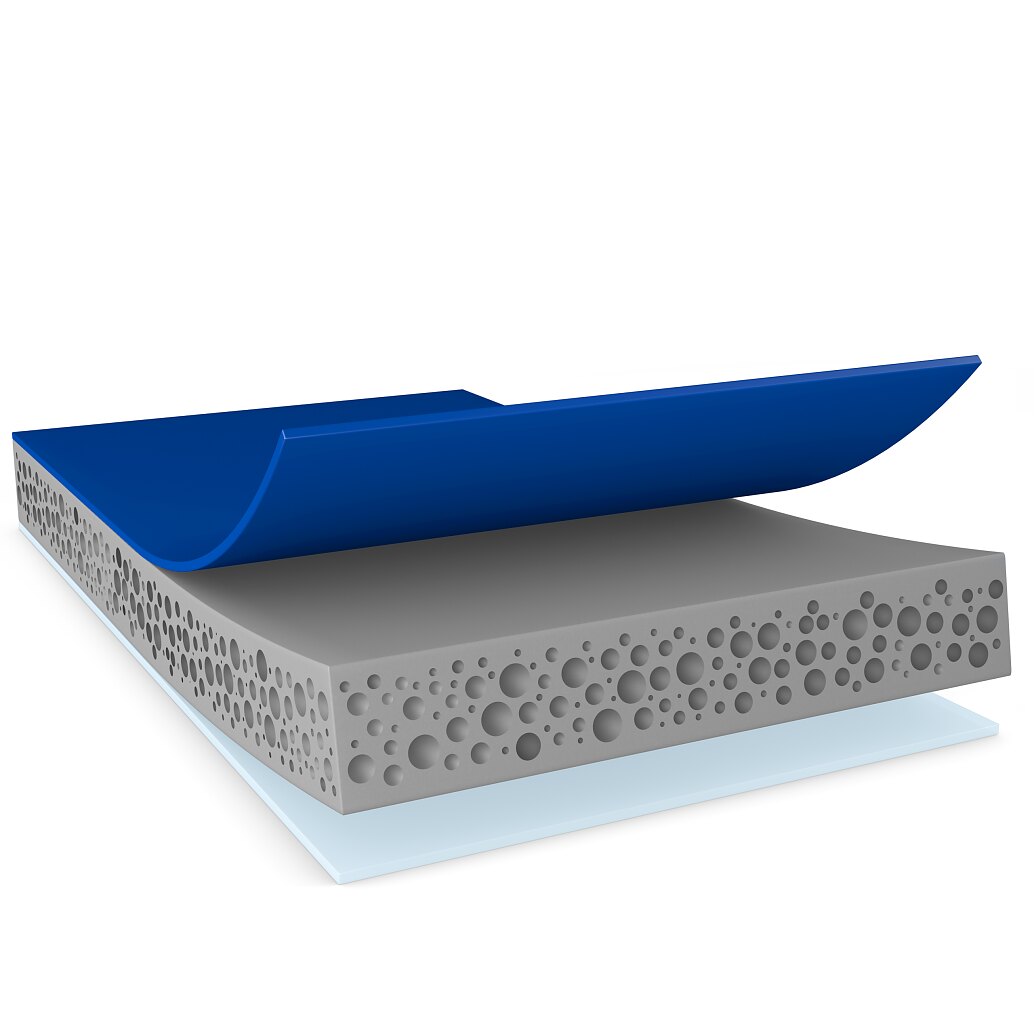

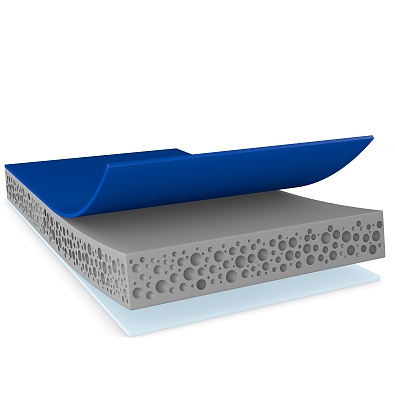

tesa® ACXplus 77711



tesa_ACXplus_777xx_PV15_pr_001

tesa_ACXplus_777xx_PV15_pr_001

Technical properties

Backing material

foamed acrylic

Color

grey

Total thickness

1100 µm

Total thickness (mm)

1.1 mm

Type of adhesive

LSE

Adhesion properties

Adhesion to ABS (after 3 days)

28 N/cm

Adhesion to ABS (covered side, after 3 days)

12 N/cm

Adhesion to ABS (covered side, initial)

8 N/cm

Adhesion to ABS (initial, 1 min)

23 N/cm

Adhesion to PP (after 3 days)

30 N/cm

Adhesion to PP (initial, 1 min)

24 N/cm

Adhesion to Steel (after 3 days)

31 N/cm

Adhesion to Steel (covered side, after 3 days)

26 N/cm

Adhesion to Steel (covered side, initial)

12 N/cm

Adhesion to Steel (initial, 1 min)

25 N/cm

Rating properties

Ageing resistance (UV)

+

Humidity resistance

++

Temperature range

-40 to +80 °C

Static shear resistance at 90°C

> 10,000 min

L-jig

+

T-block

++

tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
