Product information

tesa ® ACXplus 7076

ACXplus High Resistance 1500µm

Product description

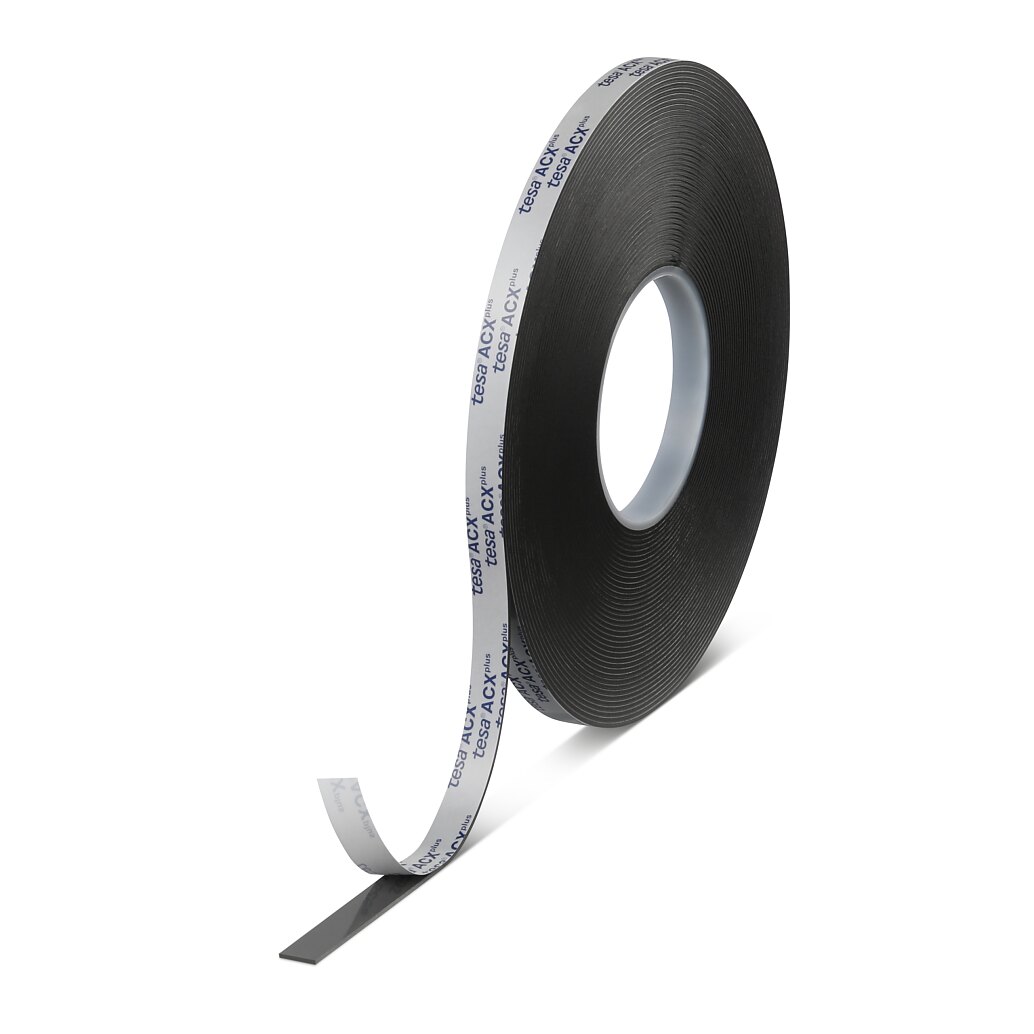

tesa ® ACXplus 7076 is a black acrylic foam tape. It consists of a high-performance acrylic system and due to its unique components it combines a very good temperature resistance with an outstanding cold shock resistance up to -40°C. It is designed for demanding outdoor bonding applications especially in combination with the tesa Adhesion Promoters. The visco-elastic, foamed acrylic core compensates different thermal elongation of bonded parts.

Main applications

Bonding of panels and reinforcement bars in the following Industries:
  • Solar
  • Elevator
  • Production Equipment
  • Transportation

tesa -acxplus-7076-1500-double-sided-acrylic-foam-tape-black-070760000922-pr

tesa -acxplus-7076-1500-double-sided-acrylic-foam-tape-black-070760000924-pr

Technical properties

Backing material

foamed acrylic


deep black

Total thickness

1500 µm

Type of adhesive

pure acrylic

Elongation at break

1000 %

Adhesion properties

Adhesion to Aluminium (after 3 days)

28 N/cm

Adhesion to Aluminium (initial)

12 N/cm

Adhesion to Glass (after 3 days)

36 N/cm

Adhesion to Glass (initial)

22 N/cm

Adhesion to Steel (after 3 days)

35 N/cm

Adhesion to Steel (initial)

14 N/cm

Rating properties

Temperature resistance short term

220 °C

Temperature resistance long term

120 °C



Ageing resistance (UV)


Humidity resistance


Resistance to chemicals


Softener resistance


Static shear resistance at 23°C


Static shear resistance at 70°C




tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
