tesa® 50540 Assemblyguard

Temporary protection tape for freshly painted car bodies

Product description

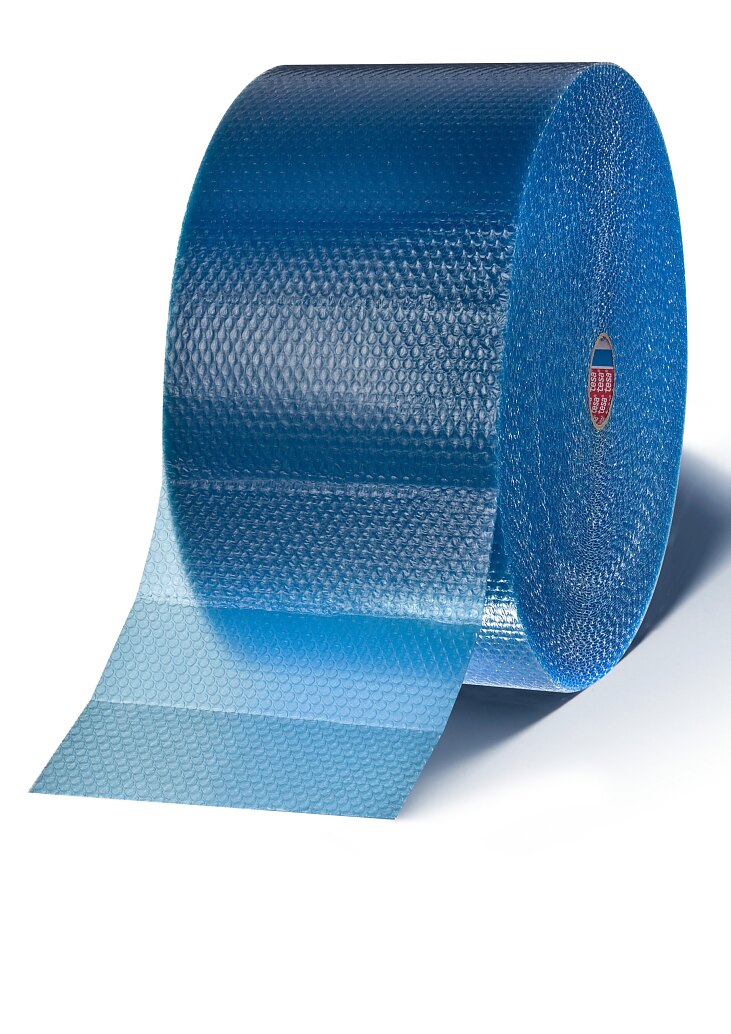

tesa® Assemblyguard 50540 is a premium grade self-adhesive tape that has been developed for the protection of delicate surfaces, e.g. painted metal surfaces during automotive assembly.
The product consists of an air bubble film coated with a paint compatible adhesive. Applied after the painting process, tesa® Assemblyguard 50540 provides reliable protection for painted surfaces susceptible to damage during the assembly process. Due the cross perforation of the product it is easily hand tearable without using any cutting devices.
tesa® Assemblyguard 50540 is recommended for indoor applications only.

Application Fields

  • Surface protection of painted metal surfaces such as car bodies, commercial vehicles and escalators during assembly.

Product Construction

Type of adhesive EVA
Total thickness 4200 µm
Backing material polyolefinic film

Properties / Performance Values

Resistance to chemicals good
Suitable for die cutting Yes
Easy to remove Yes

Adhesion to Values

Adhesion to steel 0.5 N/cm
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
