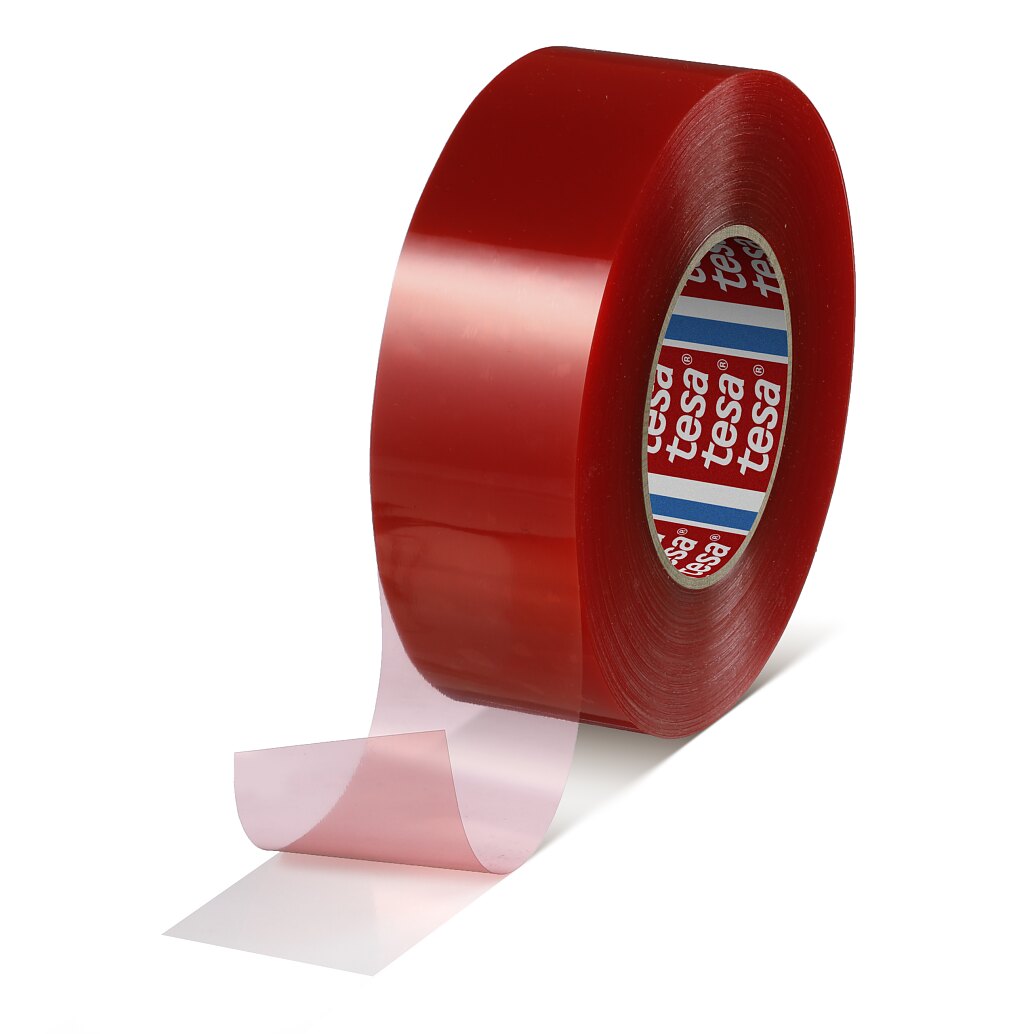

tesa® 4965 Original

Double-coated tape with high shear and temperature resistance

Product description

tesa® 4965 is a transparent double-sided self-adhesive tape consisting of a PET backing and a modified acrylic adhesive.

tesa® 4965 features:
  • Reliable bond even to LSE substrates
  • Immediate usability after assembly
  • Suitability for most demanding applications such as heavy stress, high temperatures or critical substrates

Application Fields

  • Mounting of ABS plastic parts in the car industry
  • Self-adhesive mounting of rubber/EPDM profiles
  • Mounting of decorative profiles and mouldings in the furniture industry
  • Mounting of battery packs, lenses and touch-screens in electronic devices

Product Construction

Elongation at break 50 %
Backing material PET film
Type of adhesive tackified acrylic
Tensile strength 20 N/cm
Total thickness 205 µm
Colour transparent

Properties / Performance Values

Static shear resistance at 23°C very good
Resistance to chemicals good
Humidity resistance very good
Static shear resistance at 40°C very good
Temperature resistance long term duration 100 °C
Temperature resistance short term duration 200 °C
Tack good
Ageing resistance (UV) very good
Softener resistance good

Adhesion to Values

Adhesion to Steel (initial) 11.5 N/cm
Adhesion to PE (initial) 5.8 N/cm
Adhesion to PC (after 14 days) 14 N/cm
Adhesion to PS (after 14 days) 12 N/cm
Adhesion to ABS (initial) 10.3 N/cm
Adhesion to PP (after 14 days) 7.9 N/cm
Adhesion to PET (after 14 days) 9.5 N/cm
Adhesion to Aluminium (after 14 days) 10.6 N/cm
Adhesion to PE (after 14 days) 6.9 N/cm
Adhesion to Aluminium (initial) 9.2 N/cm
Adhesion to Steel (initial) 11.5 N/cm
Adhesion to ABS (after 14 days) 12 N/cm
Adhesion to PC (initial) 12.6 N/cm
Adhesion to PVC (initial) 8.7 N/cm
Adhesion to PS (initial) 10.6 N/cm
Adhesion to PET (initial) 9.2 N/cm
Adhesion to PP (initial) 6.8 N/cm
Adhesion to Steel (after 14 days) 11.8 N/cm
Adhesion to PVC (after 14 days) 13 N/cm

Additional Info

Liner variants:
PV0 red MOPP-film (80µm; 72g/m²)
PV1 brown glassine paper (71µm; 82g/m²)
PV4 white with blue tesa® logo PE-coated paper (118µm; 120g/m²)
PV7 transparent PET-film (50µm; 72g/m²)
PV11 white PET-film (50µm; 72g/m²)
PV36 double-liner: red MOPP-film (80µm; 72g/m²) and brown glassine paper (71µm; 82g/m²)
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
