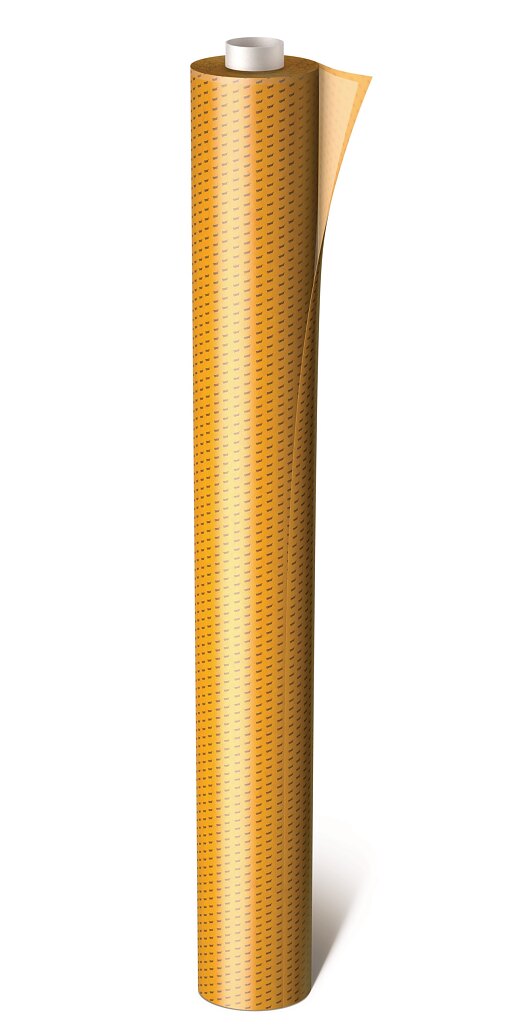

tesa® 75507 - Team 4965 Transfer 75µm
75 μm double-sided, tackified acrylic transfer tape
Product description
tesa® 4965 Transfer is a conformable, tackified acrylic transfer tape with a thickness of 75μm. It is equipped with our proven and well-known tesa® 4965 adhesive which is transparent, ageing resistant and has a high initial tack. tesa® 4965 Transfer therefore offers very good immediate grab to uneven surfaces and is suitable for a wide range of applications, such as lamination of lightweight, thin materials. Explore the benefits of the full tesa® 4965 assortment here Several products are equipped with this unique and high performing tesa® 4965 adhesive and together these products make up Team 4965. This double-sided film tape assortment helps to easily select the most efficient tape based on customer demands, products, and processes. tesa® 4965 Transfer 75μm can be ordered using the product number tesa® 75507.
Main features:
Main features:
- Excellent conformability due to transfer tape design
- Very good initial adhesion to a wide variety of substrates
- Very good temperature and humidity resistance
- Good die cutting properties
Application Fields
- tesa® 4965 Transfer is suitable for mounting and lamination applications of flexible materials and lightweight parts. Example applications are:
- Mounting of lightweight parts and materials
- Mounting of foams, felts, fabrics and textiles
- Lamination of insulation materials
- Mounting of flooring systems
- Membrane switch mounting
- Splicing
Product Construction
| Type of liner | glassine |
| Weight of liner | 80 g/m² |
| Backing material | none |
| Type of adhesive | tackified acrylic |
| Colour of liner | brown |
| Total thickness | 75 µm |
| Thickness of liner | 70 µm |
| Colour | transparent |
Properties / Performance Values
| Chemical resistance | good |
| Humidity resistance | very good |
| Temperature resistance long term duration | 100 °C |
| Temperature resistance short term duration | 200 °C |
| Static shear resistance at 70°C | good |
| Tack | good |
| Temperature resistance min. | -40 °C |
| Ageing resistance (UV) | very good |
| Softener resistance | good |
Adhesion to Values
| Adhesion to Steel (initial) | 11 N/cm |
| Adhesion to PE (initial) | 4 N/cm |
| Adhesion to PC (after 14 days) | 12.5 N/cm |
| Adhesion to PS (after 14 days) | 11 N/cm |
| Adhesion to ABS (initial) | 10 N/cm |
| Adhesion to PP (after 14 days) | 5.5 N/cm |
| Adhesion to Aluminium (after 14 days) | 9 N/cm |
| Adhesion to PET (after 14 days) | 9 N/cm |
| Adhesion to PE (after 14 days) | 4.5 N/cm |
| Adhesion to Steel (after 3 days) | 11 N/cm |
| Adhesion to Aluminium (initial) | 8.5 N/cm |
| Adhesion to ABS (after 14 days) | 11.5 N/cm |
| Adhesion to PC (initial) | 12 N/cm |
| Adhesion to PVC (initial) | 8 N/cm |
| Adhesion to PS (initial) | 10 N/cm |
| Adhesion to PET (initial) | 9 N/cm |
| Adhesion to PP (initial) | 4 N/cm |
| Adhesion to Steel (after 14 days) | 11 N/cm |
| Adhesion to PVC (after 14 days) | 13 N/cm |
tesa® products prove their impressive quality day in, day out in demanding conditions and are regularly subjected to strict controls. All technical information and data above mentioned are provided to the best of our knowledge on the basis of our practical experience. They shall be considered as average values and are not appropriate for a specification. Therefore tesa SE can make no warranties, expressed or implied, including, but not limited to any implied warranty of merchantability or fitness for a particular purpose. The user is responsible for determining whether the tesa® product is fit for a particular purpose and suitable for the user’s method of application. If you are in any doubt, our technical staff will be glad to support you.
